- Απόθεμα: Παράδοση σε 15-25 ερ.ημέρες
- Κωδικός Προϊόντος: 1157

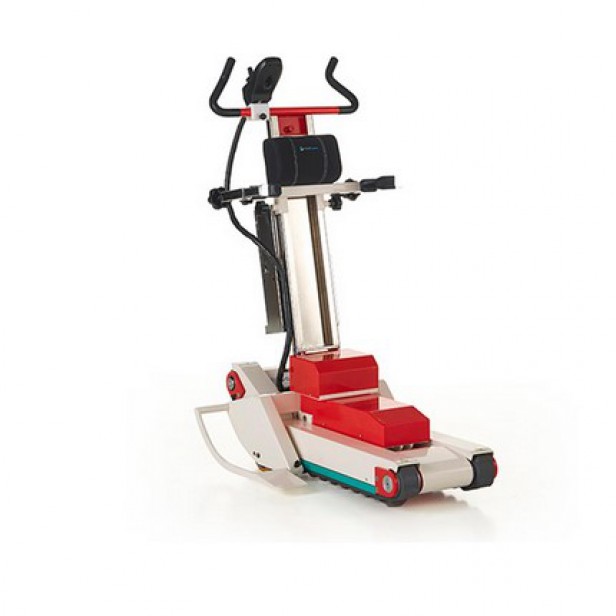

Το Domino People Slim είναι το μόνο ανυψωτικό καροτσάκι για άτομα στον κόσμο που συγκεντρώνει τόσο πολύ τεχνολογία.
- Έχει βασικά το ίδιο μέγεθος με ένα παραδοσιακό καρότσι ερπύστριας ,αλλά προσφέρει μοναδικά χαρακτηριστικά.
- Είναι εξοπλισμένο με ανεξάρτητα ερπυστριοφόρα κομμάτια που μπορούν να χρησιμοποιηθούν για τη διόρθωση της τροχιάς κατά τη μετακίνηση στη σκάλα ή την περιστροφή 360 μοιρών.

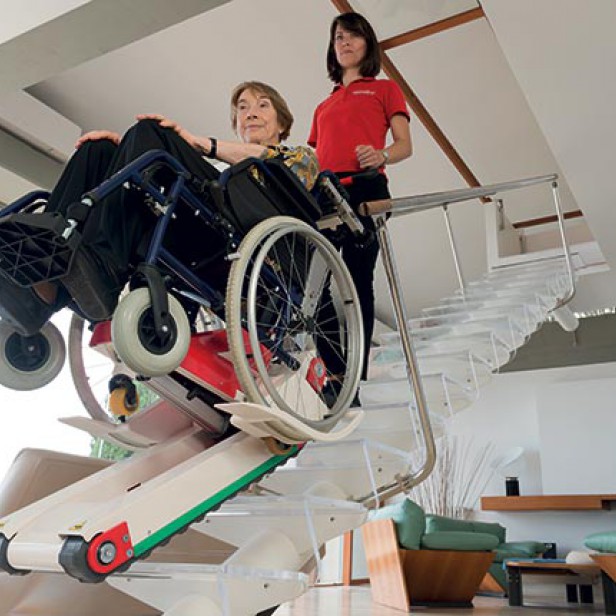

- Προσφέρει ένα σύστημα αυτόματης κλίσης για την αναπηρική καρέκλα στις σκάλες, καθιστώντας την εργασία πιο απλή για τον χειριστή και είναι εφοδιασμένο με 3 εσωτερικούς τροχούς για τη μετακίνησή της από μια σκάλα στην άλλη.
Total weight of the device:
92 kg (battery included)
Weight of the towing chassis devoid of removable components
60 kg
Weight of the battery box
16.5 kg
Maximum capacity
160 kg
Minimum viable staircase width
78 cm
Minimum space for manoeuvre on the landing
Click here to see all details
Load surface tilting
Automatic and Manual (double operating mode)
Wheelchair wheel armrests
Removable and possibly customisable for extra large wheelchairs
Wheelchair loading platform
Standard dimensions width 70 cm, depth 87.5 cm. Possibility for customisation for different requirements.
Movement on surface
Manual, on sliding wheels/Motorised, by means of independent tracks
Supply voltage
24 V
Charging voltage
110-230 V
Tracks speed
4 metres per minute
Autonomy with 1 charge
about 300 steps
Usage temperature
from 5 to 40 °C
Maximum permissible staircase inclination
35°
Irreversible gear motors by means of electromagnetic brake. Advanced electronics with soft start and proportional joystick, Independent crawler tracks traction
possibility of 360-degree rotation with the tracks
Increased track section compared to traditional track stairlifts for greater grip and safety
ADVANTAGES

MANOEUVRING IN NARROW SPACES
The independent crawler tracks with double electric motor allow the portable wheelchair climber to rotate 360° and provide maximum manoeuvring comfort even in narrow spaces.

TRAVEL COMFORT
The climber can transport hand-operated wheelchairs up to 160 Kg. The crawler tracks are wider compared to traditional stair climbers, increasing comfort and safety.

NON-SLIPPING
Non-marking and non-slipping crawler tracks, suitable for all indoor and outdoor surfaces.

IRREGULAR STEPS
You are no longer restricted by the height of the steps, since the wheelchair climber can also go up irregular steps.

ONE-FINGER CONTROL
It is operated with a proportional joystick, making it easy-to-use and intuitive.

MOVEMENT ON FLAT SURFACES
The stair climber moves on flat surfaces on three puncture-resistant wheels. The front wheel is equipped with a brake and can be taken off.

AUTOMATIC
DOMINO PEOPLE SLIM adjusts the load tilt of the wheelchair on the staircase on its own, taking a lot of stress off the operator during transport.
