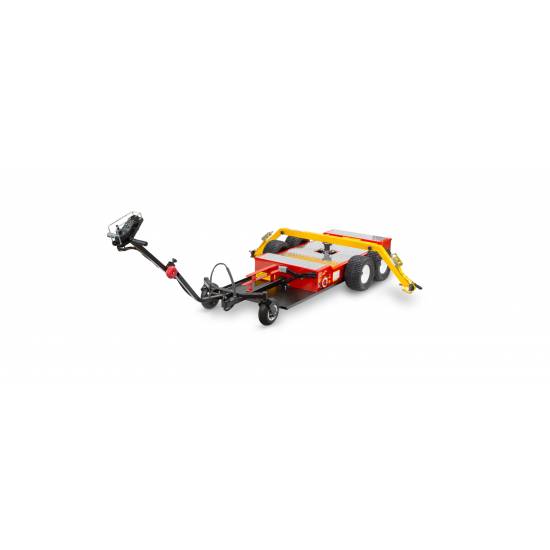

UNIVERSAL BATTERY TOW CART FOR HELICOPTERS Helitowcart V650

The V650 is a luxury model with foldable arm to hold joystick and large bottom plate to carry helicopter wheels and luggage.

• Great for operations on snow and ice and other challenging terrains.

INTERIOR DESIGN

• The V600 series Universal Tow carts have an impressive mechanical design.
• They are built to offer exceptional power and traction.
• Each traction wheel has its own 300 watts motor.
• Wheels are set-up in pairs linked by de-rated gear mechanisms .This ensures that should one wheel loose contact with ground , its power is transferred to its sister wheel for maintained traction.
• The unit is also equipped with a high quality controller that ensures unsurpassed precision.

MAIN SWITCH

• In addition to a power switch located on the joystick a Main Safety Switch is located on the tow cart cabinet.
• This switch allows operator to completely turn off tow cart.
• It allows to switch from its tow cart function to its APU function (option).
• This system makes tow cart management very easy.

FITS IN A B205

• The V614 model is a very compact unit.
• It was actually invented at the request of operators needing to operate from remote bases and thus needed to carry the tow cart on board with them.
• Being compact is a great advantage for crowded hangars too!

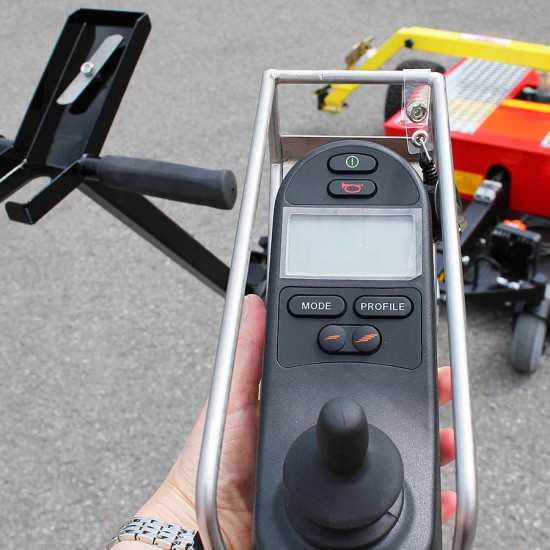

CONTROLLER

• The V600 series are operated with a joystick.
• This high quality unit works in tandem with the controller located inside the tow cart.
• Together this joystick and controller offer great precision.
• A true pleasure to operate.
• In addition to controlling direction, the joystick allows to adjust speed and informs operator of battery charger level.
• It also offers trouble shooting guidance.
• The joystick being linked to the tow cart by cord ensures the operator keeps physical contact with the machine and thus acts as a safety warning against unfortunate distractions while handling helicopters.

V650 MODEL SPECIFICATION

GENERAL UNIVERSAL CARTS SPECIFICATIONS

COMPATIBILITY
