- Stock: Delivery up to 30 days
- Model: 1201

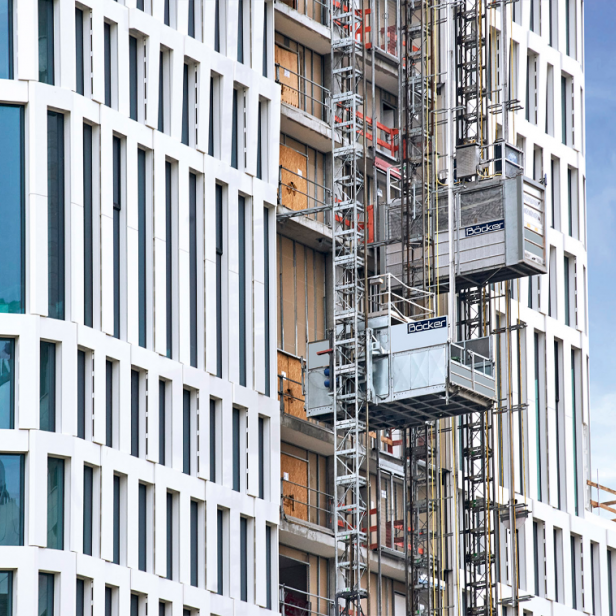

The strong dual-mast lift
Having a dual mast system, the Super-Lift MX offers a little bit more of everything. More space, higher capacity and stronger variability - these are the particular strengths of the transport platforms Super-Lift MX 2024. Equipped with all other strengths of the MX series, the lifts offer in different platform configurations enough capacity for up to 2,000kg material. Up to 7 persons can be transported with the dual-mast lift alternatively which equals a surplus of up to 70 % compared to traditional transport platforms.
For the Super-Lift MX, safety plays a decisive role like for all other Böcker lifts. Configured as transport platform for material, the dual-mast lift complies already to a large extent with the requirements of the EN 12159. Furthermore powerful safety brakes ensure maximum protection at every ride
Unsurpassed versatility by modular platform concept

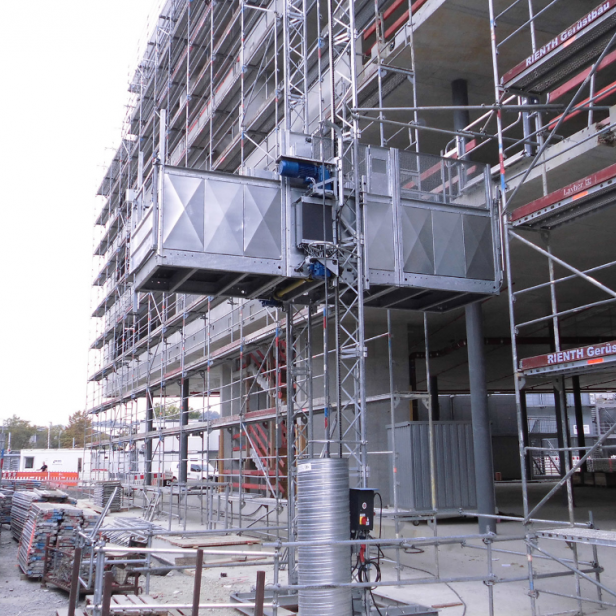

The complete Super-Lift MX serie impresses in particular by its highly-versatile modular platform concept. The base unity which is well-known from the single-mast lift having a surface area of 1.70 x 1.40 m (LxW) can individually be extended for the dual-mast lifts. By assembling further platform modules, the Super-Lift 2024 can be adapted to any operation. Assembled perpendicularly to the façade the lifts can be extended up to o maximum length of 5.10m. In case of parallel assembly to the façade, the lifts can be expanded with further modules op to a total width of 4.50 m.
Precise landin gate control

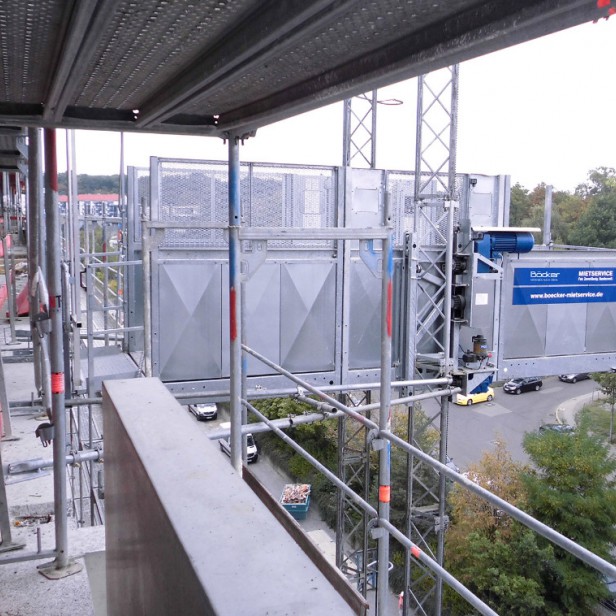

It is self-evident that the Steinweg-Böcker Super-Lifts MX 2024 offer outstanding efficiency and convenience on any construction site. All landing gates are approached by switch cams. Therefore the lift always stops at exactly the same position and there is always an edgeless connection between platform and floor.
Display with diagnostic system
Henceforth, the diagnostic system with display notification is available for the Super-Lift MX as optional feature. The completely new PLC control of the MX monitors all limit switches of the lift. Operators are notified of faults like an open loading gate via the display where all information can be read as text or as error code. This system ensures fast diagnostics and remedial actions.
| Model | Version A (perpendicular assembly) | B30 Version B (parallel assembly) | B45 Version B (parallel assembly) |
| Load bearing capacity | 1,500 / 2,000 kg | 1,500 / 2,000 kg | 1,200 / 1,700 kg |
| Passenger capacity | 7 Personen | 7 Personen | 7 Personen |
| Loading platform | 1.70 x 1.40 x 1.80 m* | 3.00 x 1.70 x 1.80 m | 4.50 x 1.70 x 1.80 m |
| Lifting height max. | 200 m | 200 m | 200 m |
| Lifting speed | 12/24 m/min | 12/24 m/min | 12/24 m/min |
| Length triangle lattice tower | 1.5 m | 1.5 m | 1.5 m |
| Weight triangle lattice tower | 51 kg | 51 kg | 51 kg |
| Tie distance max. | 10 m | 6 m | 6 m |
| Motor capacity | 15 kW | 15 kW | 15 kW |
| Fuse 4 | 50 A | 50 A | 50 A |
| Voltage | 400 V/50 Hz | 400 V/50 Hz | 400 V/50 Hz |
*Additional stanard modules for enargement of loading platform of up to 3.40 / 5.10 x 1.40 m
All rights reserved for changes.
