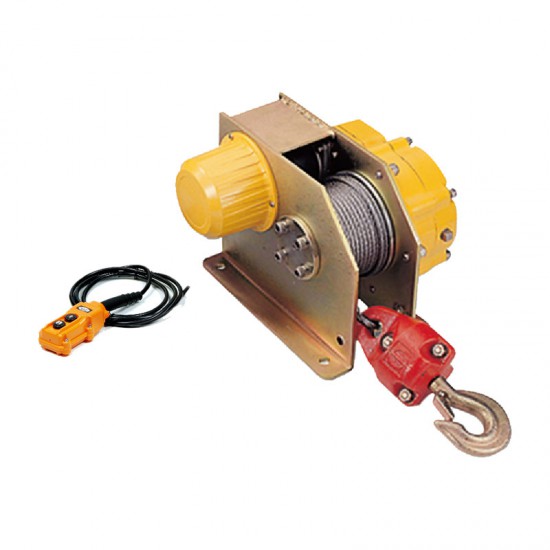

DH-500 Wire rope hoist 12m*6.2mm 500kg 12V

DH 500 winch is the ideal machine for professionals at 12v.

High durability and above all great reliability to maintain the highest efficiency for as long as it is required.

12 volt reversible permanent magnet motor
Low amp. draw and low sound level
Smooth running over heavy-duty the speed range
25% ED duty cycle and maximum starting frequency of 150 times/h at 63% load
A ratchet brake securely hold the load
12V for DH-500

Specification/Part Numbers

Rated line lift: 500 kg / 1,102 lb
Speed: 3 mpm / 9.8 fpm
Circuit Breaker: 50A
Motor: 300 w / 0.41 hp
Gear train: 276:1
Percentage duty cycle: 25 ED%
Rope type: Galvanized aircraft A7 x 19
Rope size: 6.2 mm x 12 m (1/4" x 39')

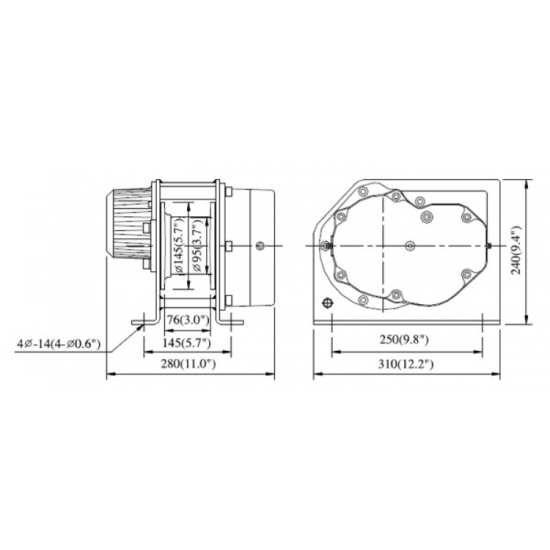

Drum size: 95 mm x 76 mm (3.7” x 3”)
Winch weight: 14 kg / 30.8 lb
Gross weight: 33 kg / 72.8 lb
Box dimension: 330 x 330 x 275mm (13" x 13" x 10.8")

Operation Manual
