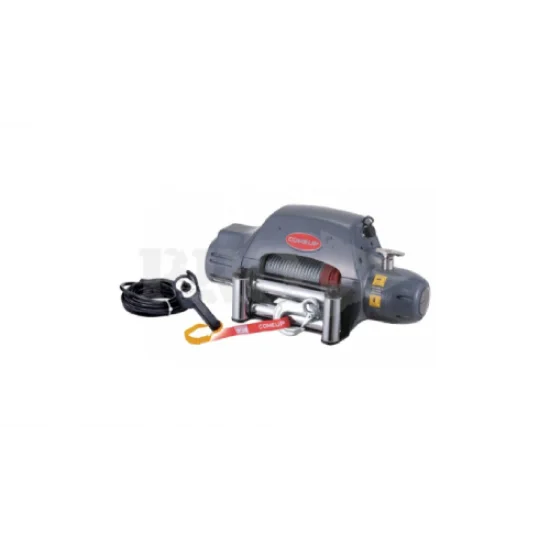

DV-6000i CAR WINCH 2722KG, 12V TYPE i

If you are looking for a premium winch with even better performance than you are used to, trust Comeup winch! Τhis is not an ordinary winch. Comeup has been around since 1975 and has created the best winches on the planet.

The conical brake is not only patented, it is a safety feature that keeps your winch from turning freely when not in use. Comeup is world-renowned for its performance; it is the biggest name in winches in Russia, Australia and now in the USA. That’s why it’s the best value for money winch you can get.

         DV-6000i

• Part number: PN 854750 (12V) Std. drum / PN 854760 (12V) Long drum
• Rated line pull: 2,722 kg / 6,000 lb single line
• Motor: 2,390 w / 3.2 hp 12V series wound
• Gear ratio: 3-stage planetary 216:1
• Clutch (freespooling): Rotating ring gear
• Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
• Winch construction: Aluminum die cast housings with steel drum
• Drum size:
  DV-6 Std. drum : 63.5 mm x 125.5L mm (2.5” x 4.9”L)
  DV-6 Long drum : 63.5 mm x 227L mm (2.5″ x 8.9″L)
• Control: Waterproof remote w/ 5 m (17′) cord
• Rope type: Galvanized aircraft A7 x 19
• Rope size:
  DV-6 Std. drum : 7.1 mm x 24.4 m (9/32” x 80’)
  DV-6 Long drum : 7.1 mm x 30.5 m (9/32″ x 100′)

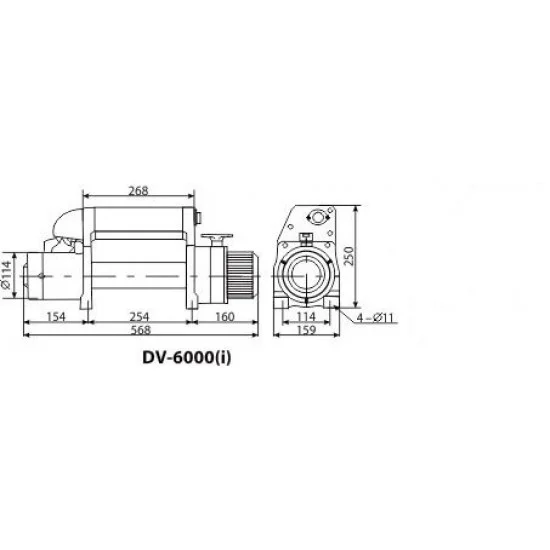

• Mounting bolt pattern:
  DV-6 Std. drum : 152.4 mm x 114 mm (6” x 4.5”)
  DV-6 Long drum : 254 mm x 114 mm (10″ x 4.5″)
• Winch weight (including rope) :
  DV-6 Std. drum : 22.8 kg / 50.3 lb
  DV-6 Long drum :  25.2 kg / 55.6 lb
• Gross weight :
  DV-6 Std. drum : 28.4 kg / 62.6 lb
  DV-6 Long drum : 32.8 kg / 72.3 lb
• Box dimension, (L x D x H) :
  DV-6 Std. drum : 505 x 210 x 340 mm (19.9″ x 8.3″ x 13.4″)
  DV-6 Long drum : 672 x 210 x 390 mm (6.5″ x 8.3″ x 15.4″)

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull and Rope Capacity:
