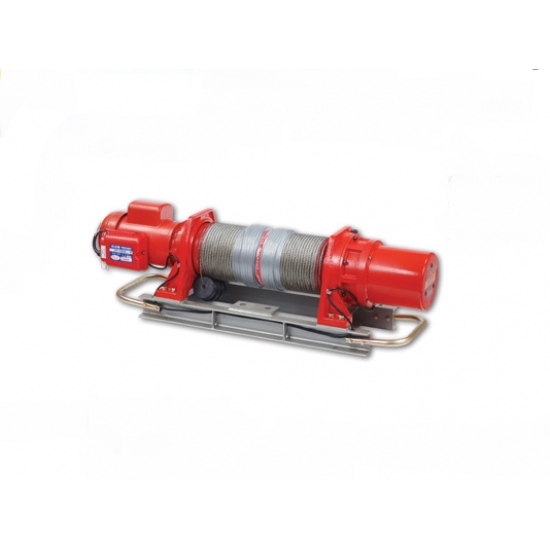

CEP-1000 3FD WIRE ROPE HOIST WITH DOUBLE WIRES 8M*8MM 1000KG 380V

Description
TECHNICAL SPECIFICATIONS

Special type winch CEP-1000 5FD with double drawers suitable for lifting and balanced load distribution.
If we want accuracy during lifting then surely the CEP-1000 is the right machine.

Specification/Part Numbers

Model number	Single phase	CEP-1000S- M
	Three phase	CEP-1000- M
Double fall load	kg	1,000
Double fall speed	M/min	7.5
Motor	kw x P	1.5 x 4
Power Source	1ø 50Hz	220/230/240V
	3ø 50Hz	380/400/415V
Lifting height	M	5	8	14
Wire rope	ø mm x M	8 x 16	8 x 22	8 x 34

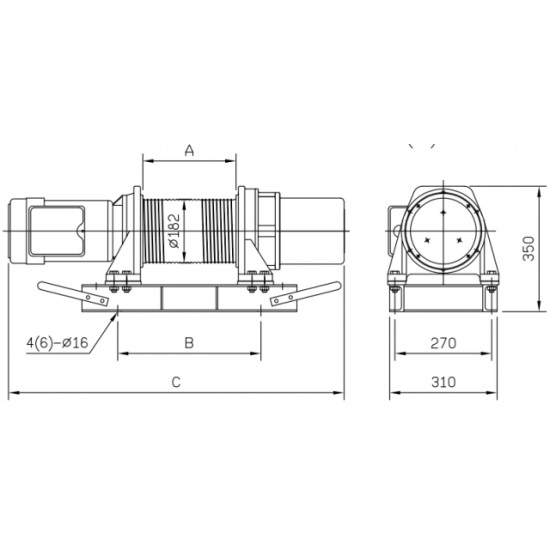

Dimension	A mm	470	670	1070
	B mm	600	800	1200
	C mm	1150	1350	1750
Net weight	kg	111	126	156
Gross weight	kg	151	166	196

Tags: CEP-1000, 3FD, WIRE, ROPE, HOIST, WITH, DOUBLE, WIRES, 8M*8MM, 1000KG, 380V, HOISTS, COME
