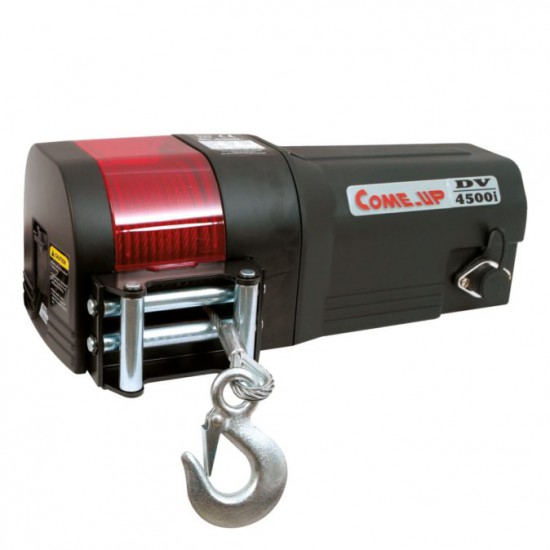

DV-4500i Car winch 2041kg, 12V

If you are looking for a premium winch with even better performance than you are used to, trust DV-4500.Closed high-performance motors provide excellent output torque and faster line speed.

The platform with a 3-level gearbox offers the most reliable and durable performance of the winch in difficult conditions.he special brake design (CBS) outside the drum is ideal for the heat-sensitive synthetic rope.The highly durable sealed inductor ensures soundproof water protection.Turn the clutch with the ergonomic U handle for quick release of the wire.

         DV4500i

• Power in and power out
• Sliding ramping clutch for rapid wire rope payout
• Circuit breakers shut off winch to prevent overheating of motor
• Weather-resistant plastic housing for extra durability
• Dynamic and mechanical brake holds full load
• Integrated contactor for complete protection of wirings
• Compact and light weight allow a wide range of applications on trailers and boats

Specification/Part Numbers:

• Part number: PN 641656 (12V) / PN 642037 (24V)
• Rated line pull: 2,041 kg / 4,500 lb single line
• Motor: 1,200 w / 1.6 hp 12/24V permanent magnet
• Gear train: 3-stage planetary 170:1
• Clutch (freespooling): Sliding ramping
• Brake (outside the drum): Automatic load-holding mechanical brake
• Drum size: 54 x 83 mm (2.1” x 3.3”)
• Control: Handheld pendant switch remote control
• Rope type: Galvanized aircraft A7 x 19
• Rope size: 6.3 mm x 15.2 m (1/4” x 50’)
• Mounting bolt pattern: 86 x 93 mm (3.4” x 3.7”)
• Winch weight (including rope) : 14.2 kg / 31.2 lb
• Gross weight : 18.2 kg / 40 lb
• Box dimension, (L x D x H) : 470 x 280 x 200 mm (18.5″ x 11″ x 7.9″)
