Bison 20 Hydraulic car winch 9070kg

BISON-20

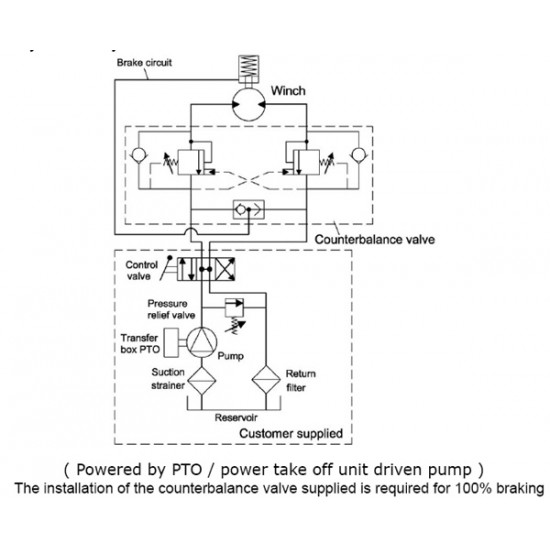

• The new mechanical MDB (Multi-Disc Brake) and two ways counterbalance valve together to control and hold the load.
• Built-in air clutch for rapid wire rope payout.
• Great for severe duty trailers, roll-back carriers, and commercial recovery application.
• Fast and variable recovery speeds for high working
• Powerful and constant output hydraulic motor allows extreme duty performance
• Meet SAE J706, CE machinery directive 2006/42/EC and EN 14492-1:2006 Power Driven Winches
• Roller fairlead, cable tensioner and two ways counterbalance valve come as standard accessories.

• Part number: PN 682030 (Std. drum)  / PN 682169 (Long drum)
• Rated line pull: 9,070 kg / 20,000 lb (SAE J706 & EN 14492-1 rating)
• Line speed (at 1st layer of rope) : 7.1 mpm at 60 l/min (23 fpm at 15.9 g/min)
• Operation pressure: 175 bar / 2,540 psi
• Max oil flow: 60 l/min (15.9 g/min)
• Hydraulic motor: 155.7 cm3/rev (9.5 in3/rev)
• Gear ratio: 2-stage planetary gear 30:1
• Winch construction: Cast housings with steel drum
• Clutch (Freespooling): Output shaft disengaged
• Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
• Rotation of winch: Wire rope shall be under-wound orientation only

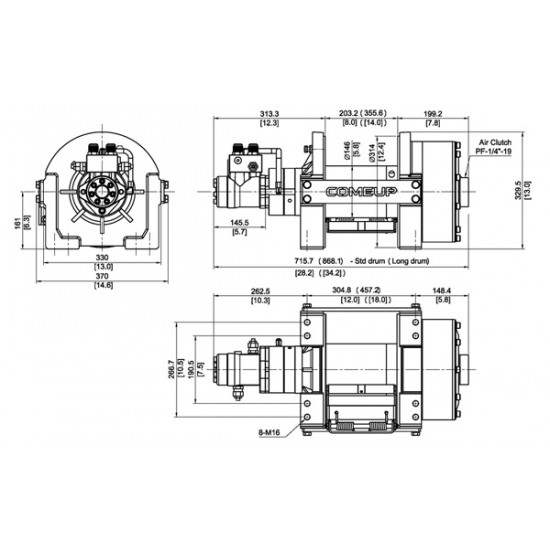

• Drum barrel diameter: 146 mm (5.8″)
• Drum flange diameter: 314 mm (12.4”)
• Distance between flanges:
  203 mm (8″) – Std. drum
  355.6 mm (14″) – Long drum
• Mounting bolts pattern:
  190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) – Std. drum
  190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mmc (10.5” x 18”) – Long drum
• Wire rope recommended:
  14 mm x 43 m (9/16” x 141’) – Std. drum
  14 mm x 80 m (9/16” x 262’ ) – Long drum
  1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN (30,742 lbf) required for SAE J706 ratings
  16 mm x 30 m (5/8” x 98’) – Std. drum
  16 mm x 55 m (5/8” x 180’ ) – Long drum
  1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for EN 14492-1 ratings
• Winch weight:
  135 kg / 298 lb – Std. drum
  150 kg / 331 lb – Long drum
• Gross weight:
  165 kg / 364 lb – Std drum
  195 kg / 430 lb – Long drum
• Box dimension, (L x D x H) :
  870 x 500 x 510 mm (34.3″ x 19.7″ x 20.1″)  – Std. drum
  1,025 x 500 x 510 mm (40.4″ x 19.7″ x 20.1″) – Long drum
