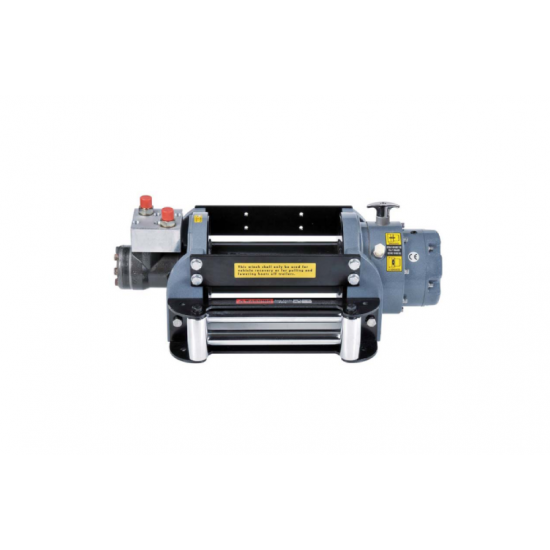

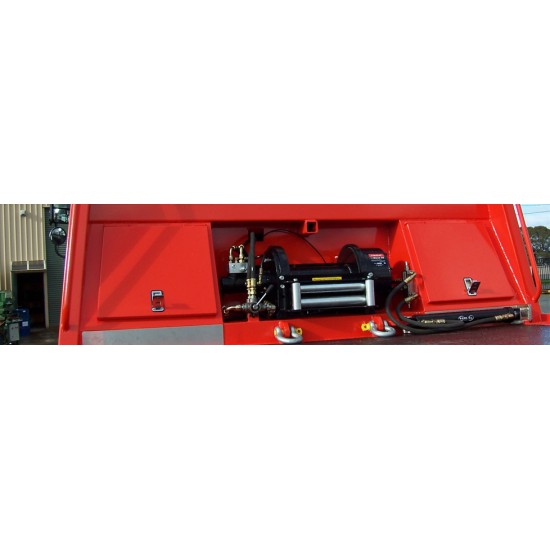

HV-10 Hydraulic car winch 4535kg

HV-10 HYDRAULIC WINCH 10.000lbs

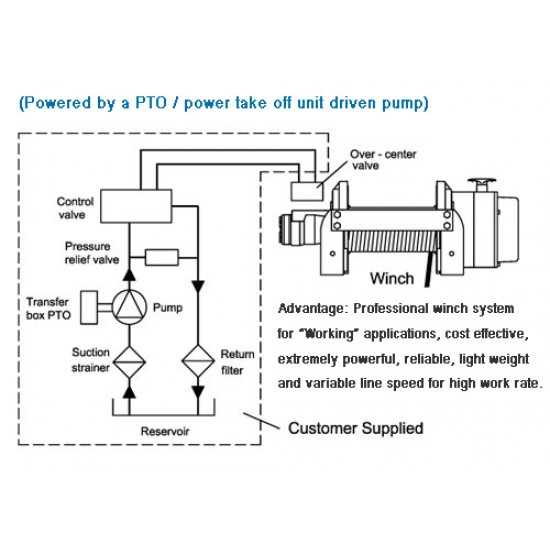

• Powered by a PTO/power take off unit driven pump
• Fast and variable recovery speeds for high work rate
• Highly efficient and constant operating torque motor
• 2 stage planetary gear train for greater pulling force
• Turn clutch by ergonomic T-handle for rapid wire rope payout
• Drag brake and over center valve providing complete braking
• EN 14492-1 supported: 10:1 D/d ratio and 2:1 wire rope strength allow severe duty vehicles and commercial recovery
• Meet SAE J706, CE machinery directive 2006/42/EC and EN 14492-1:2006 Power Driven Winches

*The colors are indicative and may differ from the final product.

• Part number: PN 682546 (Std. drum)  / PN 683129 (Std. drum – Clutch in left side)
• Rated line pull: 4,535 kg / 10,000 lb (SAE J706 rating)
  4,300 kg (EN 14492-1 rating)
• Line speed (at 1st layer of rope) : 14 mpm at 60 l/min (46 fpm at 15.9 g/min)
• Operation pressure: 150 bar / 2,175 psi
• Max oil flow: 60 l/min (15.9 g/min)
• Hydraulic motor: 97.3 cm3/rev (5.9 in3/rev)
• Gear ratio: 2-stage planetary gear 16:1
• Winch construction: Aluminum die cast housings with steel drum
• Clutch (Freespooling): Rotating ring gear
• Brake: Spring applied drag brake together with over-center valve supplied
• Rotation of winch: Wire rope shall be under-wound orientation only
• Drum barrel diameter: 102 mm (4″)
• Drum flange diameter: 201.5 mm (7.9”)
• Distance between flanges: 253 mm (10″)

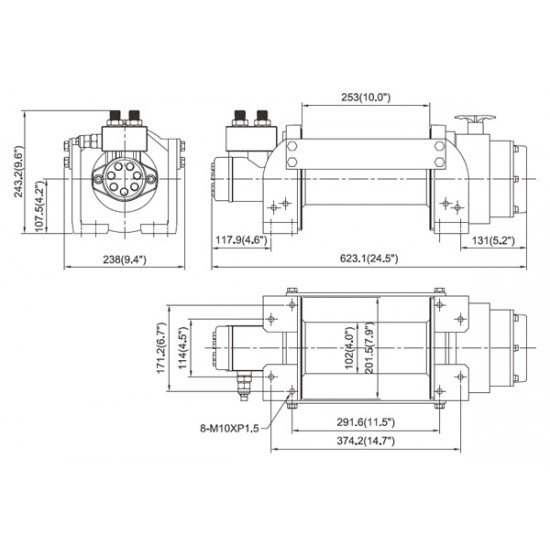

• Mounting bolts pattern: 291.6 x 171.2 mm (11.5” x 6.7”)
  374.2 x 114 mm (14.7” x 4.5”)
• Wire rope recommended:
  11 mm x 27 m (7/16″ x 89′), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 84.4 kN (18,939 lbf) required for SAE J706 and EN 14492-1 ratings.
• Winch weight: 37 kg / 81.4 lb
• Gross weight: 46.6 kg / 102.5 lb
• Box dimension, (L x D x H) : 680 x 380 x 300 mm (26.8″ x 15″ x 11.8″)Compliant with EN 14492-1 requirements for vehicle recovery winch:
  * The working coefficient for the first rope layer on the drum shall be at least 2.
  * The D/d ratio to the center of the rope shall be at least 10 for the drum.
  * Drum freeboard shall be at least 1.5 x rope diameter
