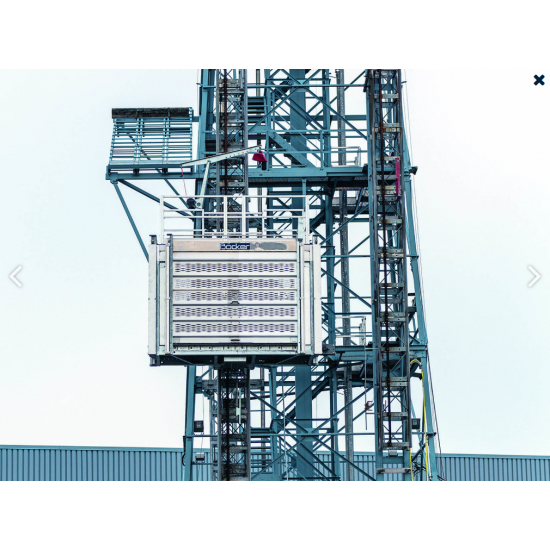

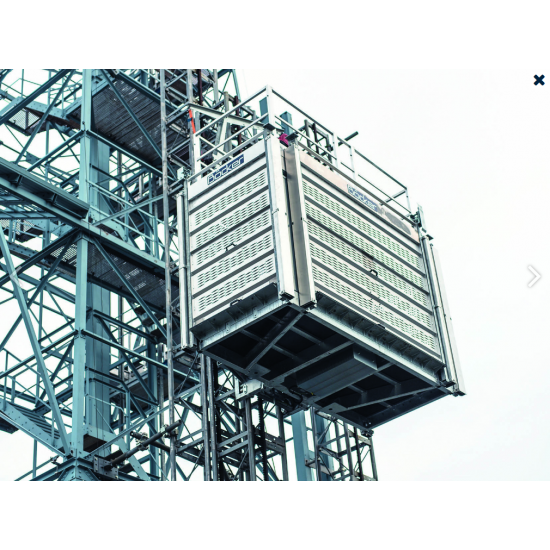

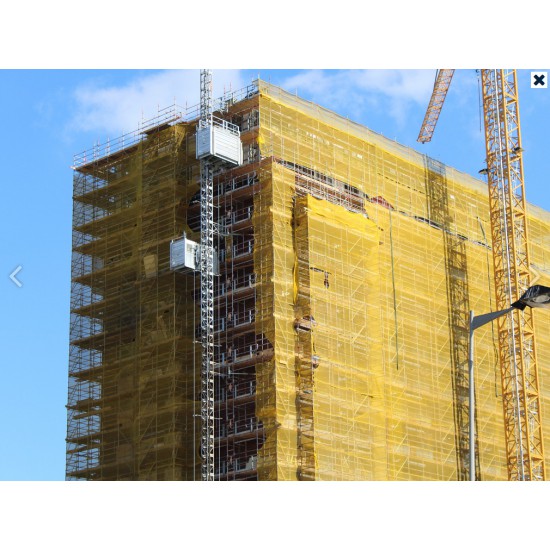

Rack and Pinion Hoist Super-Lift LX-PM

High-performance builders hoist for persons and materials

• Rack-and-pinion hoists by Böcker transport materials, machines and persons efficiently and safely to great heights and also score with low space requirement and high stability.
• The builders hoist for persons and materials Super-Lift LX-PM transports loads of up to 2,600 kg and offers space for up to 25 passengers.
• At the same time, it reaches a hoisting height of up to 200 m.
• The frequency-controlled drive ensures conveying speeds of up to 40 m/min and a gentle start and stop for minimal wear and tear of all components.
• As the Super-Lift LX PM complies with the highest safety standards for passenger lifts thanks to the enclosed lift cabin and comfortable emergency lowering, it can also be operated without a lift attendant, in accordance with EN 12159. In addition, it is equipped with an intelligent control, so that it automatically stops at the individual landings thanks for a landing pre-selection.
• The mast and the mast anchors are assembled via the accessible roof of the cabin.
• Due to its modular system, the cabin size of the new rack-and-pinion hoist is variably extendable and the hoist can be used at the most different types of construction sites.
• Depending on the design, the platform length is between 1.70 and 5.10 m.
• All accessories of the other LX models can also be used for the LX-PM. For reacting flexibly to the loading conditions on site the cabin can be extended by a C-gate with an opening width of 2.70 m.
• The low entrance height guarantees optimal comfort during loading.

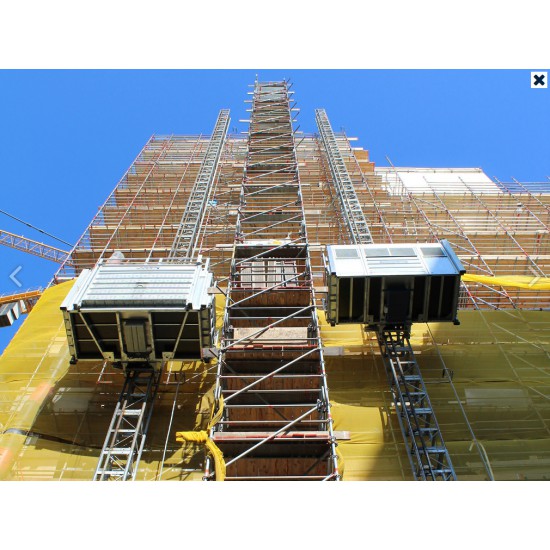

• Thanks to its stable square mast system, the LX-PM can optionally be operated with a single or a twin cabin in combination with a model of the same hoist type or with one of the other Böcker rack-and -pinion hoists on one mast.

PROS:

• High lifting capacity of 2,600 kg or 25 persons
• Frequency-controlled drive for high lifting speed of 40 m/min
• Lifting heights up to 200 m
• Enclosed cabine
• Modular cabin system with up to 5.10 m platform length
• Flexible gate and ramp system, C-gate with 2.70 m opening width optionally available
• Flexible loading from site A, B and C
• Intelligent control with landing pre-selection
• Single or twin cabin operation
• Accessible cabin roof for mast and mast anchors mounting
• Mast system is compatible to Super-Lift LX or Maxi-Climber
• Compatible with LX model accessories
• Access system Böcker "Web Key" via card control applicable as an option
• Maximum quality and longevity because of the galvanized and robust base unit
• Correspondent to machine directive 2006/42/EG and EN 12159
• Approved by TÜV


_{All rights reserved for changes.}
