Electric pallet truck E-BF-WALK with DC drive
- The electric pallet truck E-BF-WALK from HanseLifter is one of our newest devices and comparable to our electric pallet truck E-BF. The lifting, lowering and driving of the pallet truck is controlled electrically and makes work easier for the user. In addition, the E-BF-WALK electric pallet truck offers an ergonomic and modular design that promises comfortable and safe work.
- Perfect for trucks and tight spaces

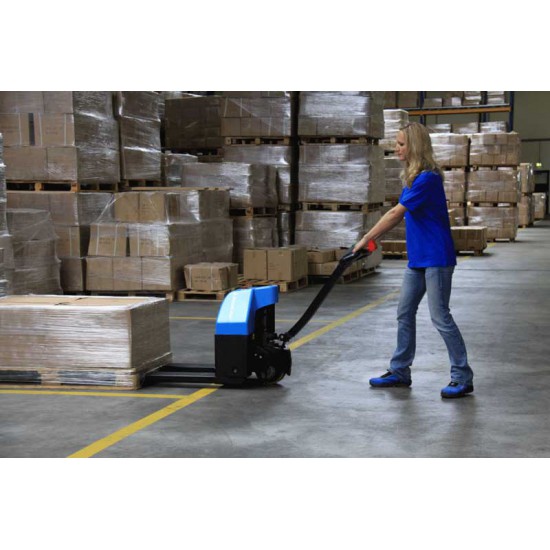

Thanks to its compact and lightweight design, the HanseLifter electric pallet truck E-BF-WALK has a low dead weight and offers particularly good handling. With these properties, the E-BF-WALK electric pallet truck is a device that is often used on trucks for loading purposes. With its compact design, the E-BF-WALK electric pallet truck can also be used in the tightest of spaces. The low-maintenance battery and the high-quality integrated charger ensure long work assignments and fast charging of the device. Charging can be done at any socket.
- Many quality standards

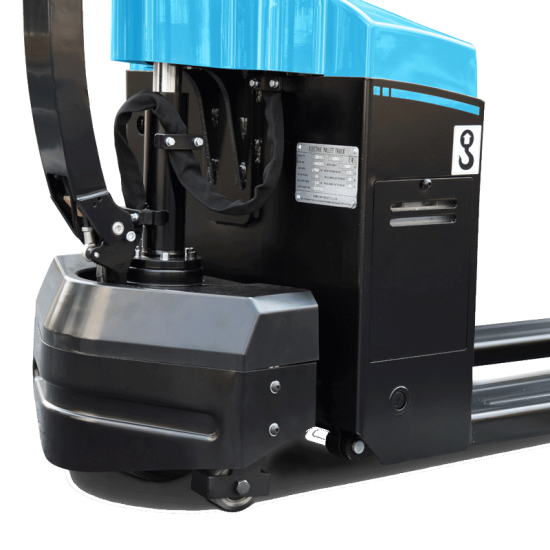

A quality standard of the E-BF-WALK electric pallet truck is the sophisticated Curtis drive control. Precise steering is possible with it. Control via the user-friendly tiller head works instinctively. An integrated operating hours counter shows how many working hours are possible with the electric pallet truck E-BF-WALK until the next charge. In addition, a battery and charge level indicator shows how long the device still needs to be charged. The polyurethane wheels are extremely quiet, wear-resistant and have good traction. With its tires, the E-BF-WALK electric pallet truck rolls easily over bumps and offers excellent handling. Tandem rollers made of polyurethane are also a good compromise between smoothness and resistance.
- Easy operation of the E-BF-WALK electric pallet truck

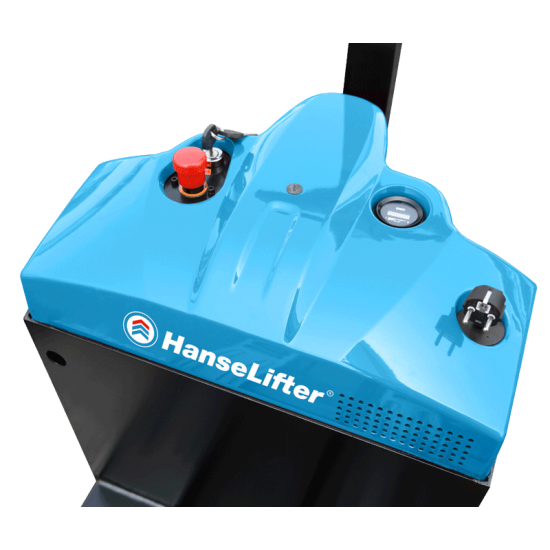

The electric pallet truck E-BF-WALK has a tiller head that is reduced to the essentials. Thanks to this simplicity, the driver can concentrate fully on lifting, lowering and driving. The speed is influenced by the inclination of the drawbar. If the drawbar is in the vertical or horizontal position, the E-BF-WALK electric pallet truck cannot be moved. When the tiller is almost vertical, the device automatically switches to creep gear. This function is particularly useful when several industrial trucks are in the same warehouse and the aisles are difficult to see.
model | Electric pallet truck E-BF-WALK |
---|---|
characteristics | DC drive |
Load capacity (kg) | 1,500 |
drive | Electric |
Stroke range (mm) | 85-200 |
Load center distance (mm) | 600 |
Total length (mm) | 1,669 |
Total width (mm) | 568 |
Fork length (mm) | 1,150 |
Fork outer distance (mm) | 560 |
Turning radius (mm) | 1,400 |
Aisle width (mm) | 2,100 - 2,208 |
Gradeability (with / without load,%) | 6/15 |
Driving speed (min / max, km / h) | 4.5 / 4.9 |
Drive motor (DC, kW) | 0.65 |
Lifting motor (DC, kW) | 0.8 |
Charger (internal) | 12/8 |
Battery (V / Ah) | 2x12 / 70 |
Controller control | CURTIS DC |
Dead weight (kg) | 220 |
item number | GE0075515 |
