- Stock: Delivery up to 30 days
- Model: 1420

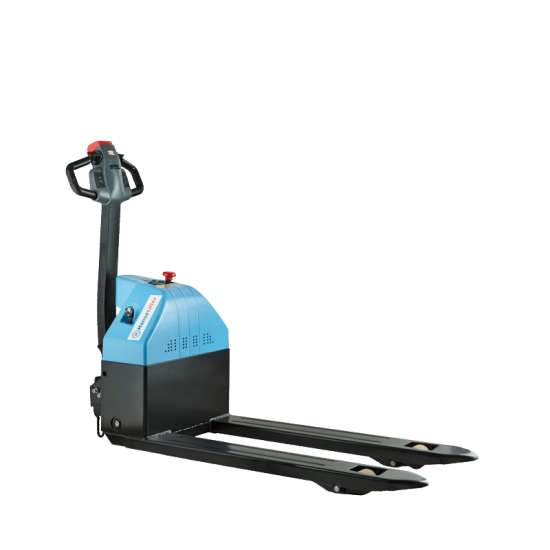

Electric pallet truck E-BF75 - with low minimum fork height
- The electric pallet truck E-BF75 from HanseLifter has a low minimum fork height of just 75 mm. Thanks to this low entry height, flat pallets and special pallets up to a weight of 1,500 kg can be picked up very easily. Thanks to its compact and maintenance-friendly design, the electric pallet truck in the warehouse is extremely economical and efficient. Lifting, lowering and driving is controlled electrically with the E-BF75 electric pallet truck and saves the operator's energy. The modular and ergonomic design also promises comfortable and safe work in the warehouse.
- A HanseLifter electric pallet truck not just for the warehouse
The electric pallet truck has a very low dead weight for an electric pallet truck. This recommends it, for example, for taking it with you on trucks or containers, where it is often a question of the load weight. With its design, the E-BF75 electric pallet truck is also an ideal floor conveyor for use in confined spaces.

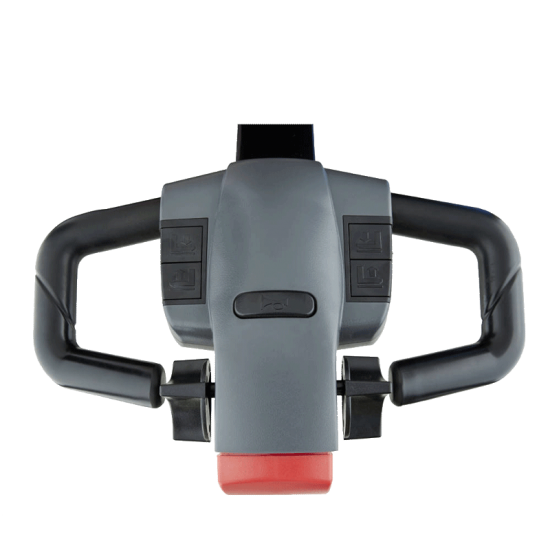

- Tiller head and charger
The multifunctional tiller head is not only ergonomic, but also suitable for both right and left-handers. The control of the device is almost intuitive. The speed is influenced by the inclination of the drawbar. If the drawbar is positioned vertically or horizontally, the pallet truck cannot be moved. When the tiller is almost vertical, it automatically switches to what is known as crawling gear. In a warehouse with a lot of traffic, this is an advantage and guarantees more security. The high-quality batteries not only ensure a long runtime, they are also particularly low-maintenance. The internal charger charges the batteries quickly at any standard socket.
- High-quality rollers and equipment from the E-BF75 electric pallet truck
The electric pallet truck is equipped with high quality polyurethane rollers. These wheels are low-noise, wear-resistant and enable good handling thanks to good traction.

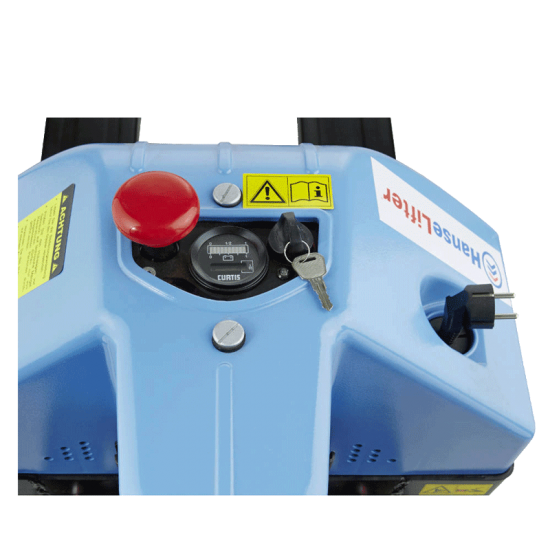

- The sophisticated Curtis drive control is also one of the high-quality standards for industrial trucks from HanseLifter. It is used to instinctively steer the electric pallet truck through the warehouse. Lifting, lowering and driving are almost automatic. The practical operating hours counter shows exactly the hours in which the industrial truck was switched on. The precise battery and charge level indicator shows when the electric pallet truck should be recharged.
- We offer more than just standard lifting and conveying equipment
Electric pallet trucks, along with forklifts and manual pallet trucks, are among the most frequently used industrial trucks in the warehouse. But the usual dimensions are not always sufficient. We also offer your electric pallet truck in other dimensions and fork lengths. Our special construction department builds your HanseLifter electric pallet truck as you need it.
| model | Electric pallet truck E-BF75 |
|---|---|
| characteristics | low minimum fork height |
| Load capacity (kg) | 1,500 |
| drive | Electric |
| Stroke range (mm) | 75-190 |
| Load distance (mm) | 600 |
| Total length (mm) | 1,700 |
| Total width (mm) | 565 |
| Fork length (mm) | 1,150 |
| Fork outer distance (mm) | 560 |
| Turning radius (mm) | 1,475 |
| Aisle width (mm) | 1.929 |
| Gradeability (with / without load,%) | 3/10 |
| Travel speed (with / without load, km / h) | 3.5 / 4 |
| Drive motor (DC, kW) | 0.65 |
| Lifting motor (DC, kW) | 0.8 |
| Charger (internal) | 12/8 |
| Battery (V / Ah) | 24/65 |
| Dead weight (kg) | 205 |
| item number | GE0031027 |
