of experience
- Stock: Delivery up to 30 days
- Model: 1423

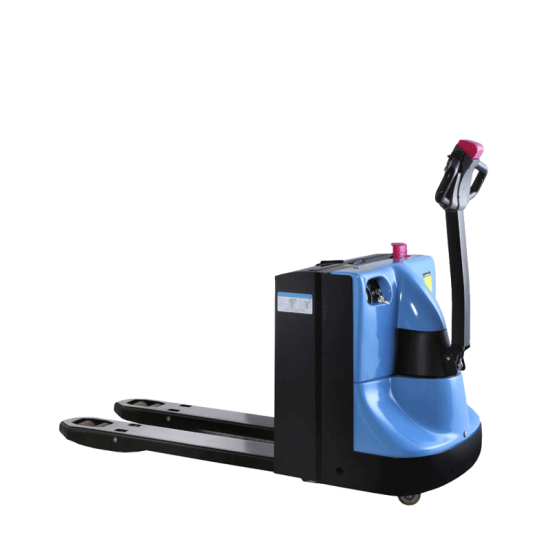

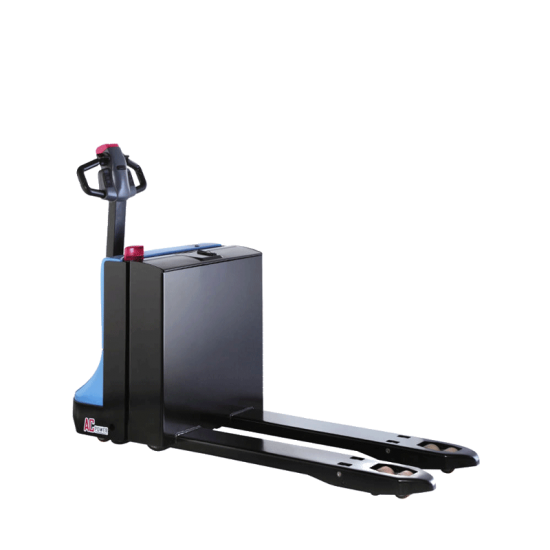

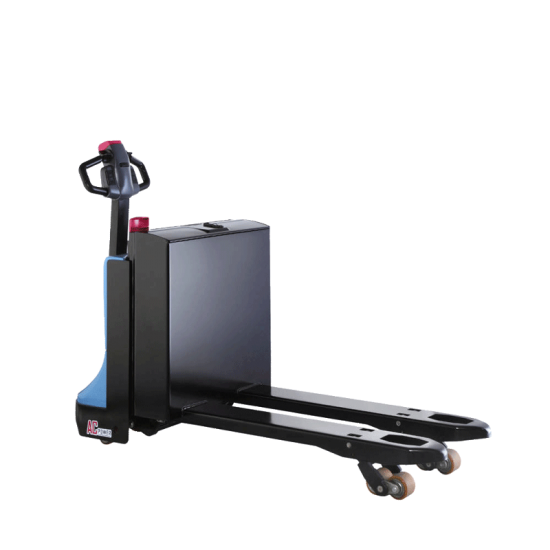

- Electric pallet truck E-20MG-AC - with AC drive
The electric pallet truck E-20MG-AC from HanseLifter lifts almost every pallet in the warehouse with its 2000 kg load capacity. Lifting, lowering and driving are electrically controlled, so that the user is spared manual pumping with the drawbar. Its powerful and low-wear AC drive motor gives the electric pallet truck E-20MG-AC the right power to shine in the warehouse. The electric pallet truck is the perfect means to significantly increase the turnover rate. Compared to comparable models with DC shunt technology, the lifting and conveying device is 15% more efficient.
- Area of application and construction of the HanseLifter electric pallet truck
The transport of palletized goods in the warehouse is the main area of application of the electric pallet truck. The E-20MG-AC electric pallet truck also masters the loading and unloading of trucks and containers with flying colors. In contrast to its model colleague E-20PL-AC , the E-20MG-AC is purely a pedestrian device, so it does not have a platform. With its extremely compact design, the E-20MG-AC electric pallet truck is also ideal as a transport device on trucks or containers.

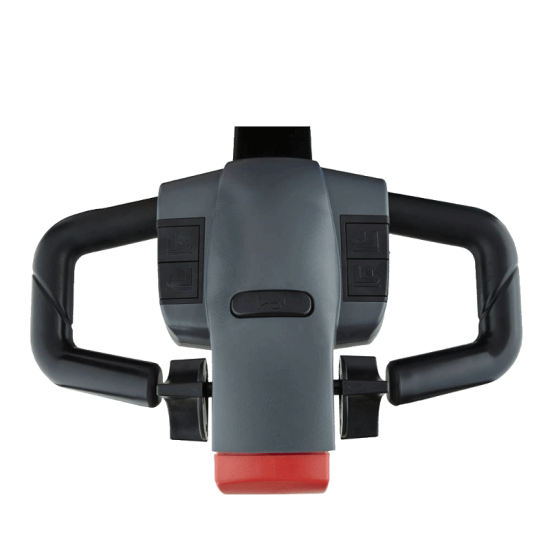

- Long tiller and ergonomic tiller head
The electric pallet truck has a long tiller and an ergonomic tiller head. This is reduced to the essentials and can be operated by both right-handed and left-handed people. Intuitive handling and safe working is made possible by the particularly easy steering and a generous steering angle of 210 °. The device also has a crawler gear, which increases safety. When the tiller is almost vertical, it switches on automatically and gives the user even more control over the device and the loaded pallet.
- HanseLifter quality standards

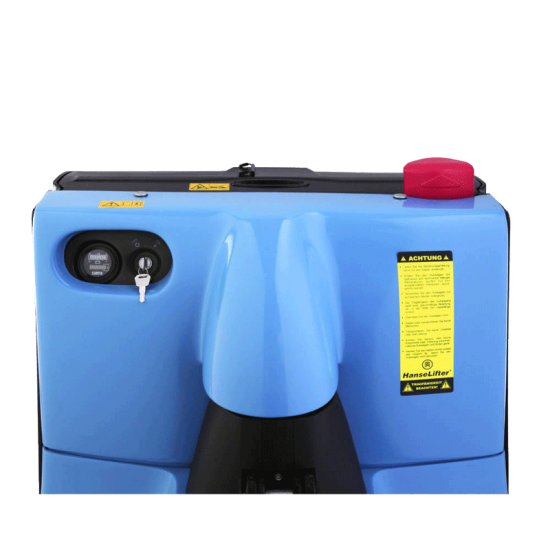

The HanseLifter lifting and conveying device has a low-maintenance battery, a battery and charge indicator and an operating hours counter. The polyurethane rollers of the E-20MG-AC electric pallet truck are abrasion-resistant and low-noise. They also support the electric pallet truck with good traction. These PU rollers also slide easily over unevenness in the warehouse floor and are ideal for hard or sensitive floors.
| model | Electric pallet truck E-20MG-AC |
|---|---|
| characteristics | Powerful AC drive motor |
| Load capacity (kg) | 2,000 |
| drive | Electric |
| Stroke range (mm) | 85-200 |
| Load center distance (mm) | 600 |
| Total length (mm) | 1,748 |
| Total width (mm) | 710 |
| Fork length (mm) | 1,150 |
| Fork outer distance (mm) | 540 |
| Turning radius (mm) | 1,638 |
| Aisle width (mm) | 2,056 |
| Gradeability (with / without load,%) | 6/8 |
| Driving speed (min / max, km / h) | 5.5 / 6.0 |
| Drive motor (AC, kW) | 1.1 |
| Lifting motor (AC, kW) | 0.8 |
| Charger (V / A, external) | 24/30 |
| Battery / Optional (V / Ah) | 24/210 / 24/225 |
| Controller control | Zapi AC |
| Total weight (kg) | 535 |
| item number | GE0022954 |
