- electric Pedestrian stacker E-DHT-S20PL 2000kg 3000mm up to 5800mm stroke
of experience
- Stock: Delivery up to 30 days
- Model: 1434
Available Options

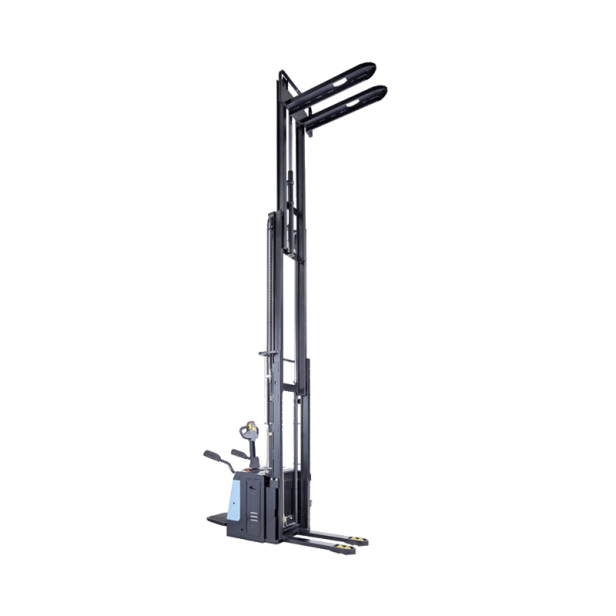

- Electric pedestrian stacker E-DHT-S20PL with a load capacity of 2,000 kg
The electric pedestrian stacker E-DHT-S20PL from HanseLifter is ideal for fast loading and unloading of trucks or containers thanks to the foldable passenger platform. The E-DHT-S20PL also cuts a fine figure when it comes to order picking. The electric pedestrian stacker E-DHT-S20PL can lift up to 2,000 kg and is equipped with a practical triplex triple mast. This allows higher lifting heights to be achieved. With its special properties, the E-DHT-S20PL belongs to the top class of pedestrian stackers.
- Increase goods turnover
Increase your goods turnover and efficiency in the warehouse with the E-DHT-S20PL pedestrian stacker. With a load capacity of 2,000 kg, it drives and stacks almost every standard pallet in the warehouse up to a lifting height of 5,800 mm. The clearance height is from 2,022 mm to 2,452 mm per model.
- Ergonomic and efficient with HanseLifter

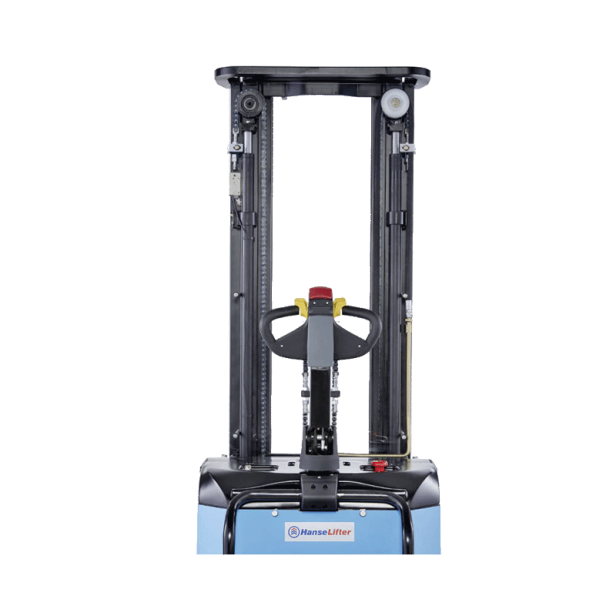

The HanseLifter brand has been represented in the industry for 15 years. The long experience in the lifting and conveyor technology sector and the close customer contact make the pedestrian stacker a user-friendly lifting and conveyor device with high-quality equipment features. The control buttons can be easily reached with the reduced tiller head. In addition, the simple tiller head enables intuitive and easy control. You can fully concentrate on driving, steering and lifting. When stopping on inclines, slopes or ramps, a brake automatically engages and prevents unintentional rolling away. The speed of the E-DHT-S20PL is automatically reduced from a lifting height of 300 mm. The low-maintenance gel battery ensures that the pedestrian stacker can convince in the warehouse for a long time and actively support you in your work. In addition, the device switches to stand-by mode when not in use and saves battery power. The user is given additional support thanks to its maneuverability and good handling.
| model | E-DHT-S2045PL | E-DHT-S2050PL | E-DHT-S2055PL | E-DHT-S2058PL |
|---|---|---|---|---|
| Load capacity (kg) | 2,000 | 2,000 | 2,000 | 2,000 |
| Lifting height (mm) | 88-4,500 | 88-5,000 | 88-5,500 | 88-5,800 |
| Free lift (mm) | 1,590 | 1,760 | 1.910 | 2.010 |
| Height of mast raised (mm) | 4,960 | 5,460 | 5,910 | 6.210 |
| Height of mast lowered (mm) | 2,022 | 2,187 | 2,352 | 2,452 |
| Load distance (mm) | 693 | 693 | 693 | 693 |
| Total length (mm) | 2.003 | 2.003 | 2.003 | 2.003 |
| Total width (mm) | 850 | 850 | 850 | 850 |
| Fork dimensions (LxWxH) (mm) | 1.150 / 190/60 | 1.150 / 190/60 | 1.150 / 190/60 | 1.150 / 190/60 |
| Fork outer distance (mm) | 570 | 570 | 570 | 570 |
| Turning radius (mm) | 1.739 / 2.009 | 1,739 / 2,099 | 1,739 / 2,099 | 1,739 / 2,099 |
| Working width (pallet across) (mm) | 2,611 / 2,971 | 2,611 / 2,971 | 2,611 / 2,971 | 2,611 / 2,971 |
| Working width (lengthways pallet) (mm) | 2,581 / 2,941 | 2,581 / 2,941 | 2,581 / 2,941 | 2,581 / 2,941 |
| Gradeability with / without load (%) | 6/12 | 6/12 | 6/12 | 6/12 |
| Driving speed with / without load (km / h) | 4.5 / 5.0 | 4.5 / 5.0 | 4.5 / 5.0 | 4.5 / 5.0 |
| Drive motor (kW) | 1.6 | 1.6 | 1.6 | 1.6 |
| Lift motor (kW) | 3 | 3 | 3 | 3 |
| Battery voltage (Ah) | 24V / 280 | 24V / 280 | 24V / 280 | 24V / 280 |
| charger | external | external | external | external |
| Total weight (kg) | 1,480 | 1,515 | 1,540 | 1,560 |
| item number | GE0073546 | GE0073547 | GE0066094 | GE0073549 |
