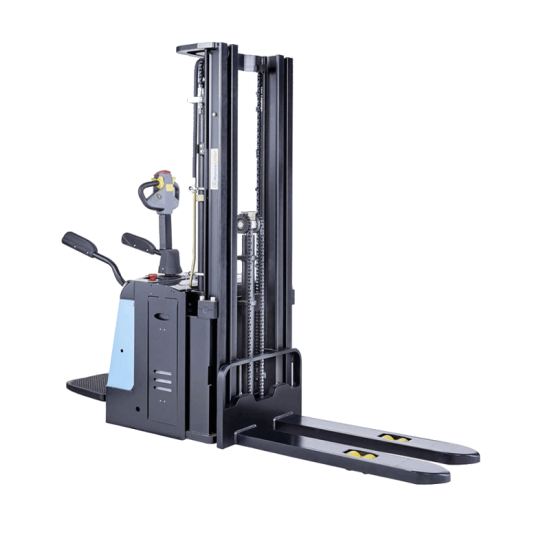

- Electric pedestrian stacker E-DHT-S16-PL with 1,600 kg load capacity and free lift
The electric pedestrian stacker E-DHT-S16-PL from HanseLifter is ideal for fast loading and unloading of trucks or containers thanks to the foldable passenger platform. The E-DHT-S16-PL also cuts a fine figure when it comes to order picking. The electric pedestrian stacker E-DHT-S16 lifts up to 1,600 kg and is equipped with a practical triplex triple mast. This not only offers greater lifting heights, but it is also equipped with free lift.
- Increase goods turnover
Increase your goods turnover and efficiency in the warehouse with the E-DHT-S16-PL pedestrian stacker. With a load capacity of 1,600 kg, it drives and stacks almost every standard pallet in the warehouse. The lifting height can be selected between 4,500 and 5,000 mm. The clearance height, like the lifting height, differs depending on the model. It varies between 5,000 mm and 5,500 mm.
- Triplex / triple mast

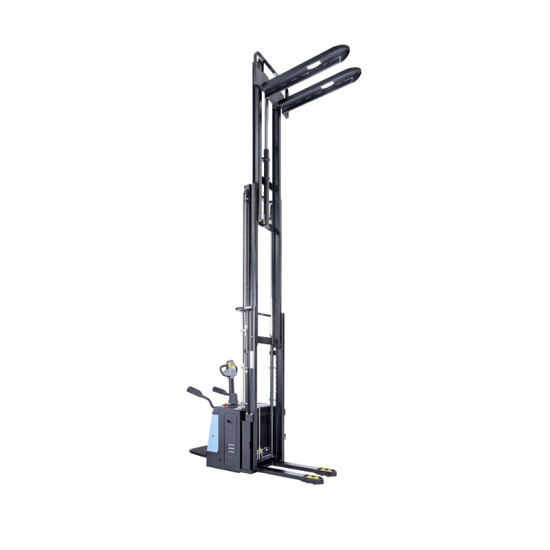

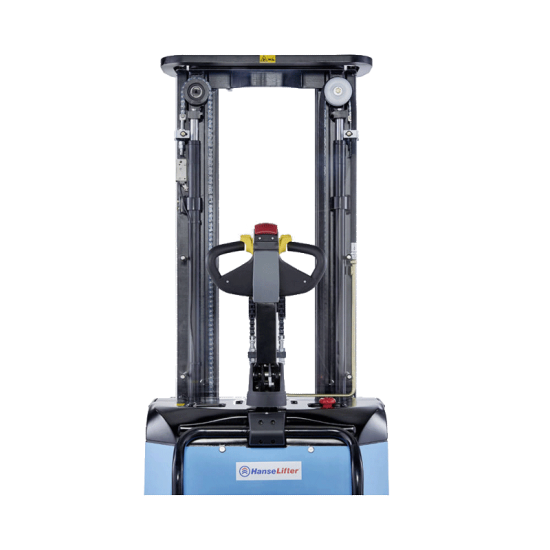

This mast model consists of 3 profiles and 3 cylinders. The lifting cylinders are arranged behind the profiles and the free lifting cylinder is in the middle. This mast variation combines the lowest overall height with the maximum lifting height, due to the profiles. This mast model is also equipped with free lift. The fork carriage can therefore move up to a height X without the structural height changing or the mast being extended.
- Ergonomics and efficiency with HanseLifter

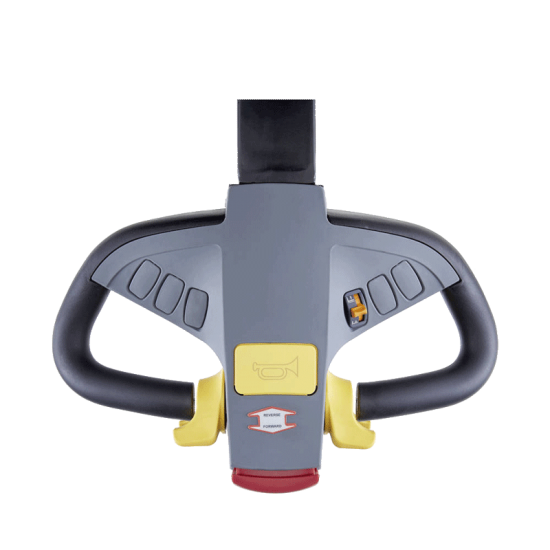

The Hanselifter brand has been represented in the industry for more than 15 years. Long experience in the lifting and conveyor technology sector and close customer contact make the pedestrian stacker easy-to-use lifting and conveying devices with high-quality equipment features. The tiller head is reduced to the bare essentials so that you can easily reach all control buttons. In addition, the simple tiller head enables easy and intuitive control. The driver can fully concentrate on driving, steering and lifting. When stopping on inclines, slopes or ramps, an automatic brake engages and prevents unintentional rolling away. With the E-DHT-S16-PL, the speed is automatically reduced from a lifting height of 300 mm. The gel battery is low-maintenance and ensures that the pedestrian stacker can convince in the warehouse for a long time. When not in use, the device switches to stand-by mode and saves battery power. The user is also supported by its good handling and maneuverability.
model | E-DHT-S1645 | E-DHT-S1650 |
---|---|---|
Load capacity (kg) | 1,600 | 1,600 |
Lifting height (mm) | 4,500 | 5,000 |
Minimum fork height (mm) | 85 | 85 |
Free lift (mm) | 1,600 | 1,600 |
Height of mast lowered (mm) | 2.210 | 2,310 |
Height of mast raised (mm) | 5,000 | 5,500 |
mast | Triplex | Triplex |
Load distance (mm) | 620 | 620 |
Total length (mm) | 2,105 | 2,105 |
Total width (mm) | 957 | 957 |
Fork tine dimensions (LxWxH, mm) | 1,150 / 185/50 | 1,150 / 185/50 |
Fork outer distance (mm) | 550 | 550 |
Drive motor (AC) | 1.5 | 1.5 |
Lift motor (DC) | 3.0 | 3.0 |
Battery voltage (V / Ah) | 24/280 | 24/280 |
Charger (V / A) | 24/40 (external) | 24/40 (external) |
Drive control | Pulse / MOSFET | Pulse / MOSFET |
Total weight (kg) | 1,604 | 1,624 |
item number | GE0071555 | GE0063663 |
