electric Pedestrian stacker IMOW EDS1033 1000kg 3300mm stroke
More than 40 years<br/> of experience
More than 40 years
of experience
  • Stock: Delivery up to 30 days
  • Model: 1440
4.675,00€
5.797,00€
(With Tax)

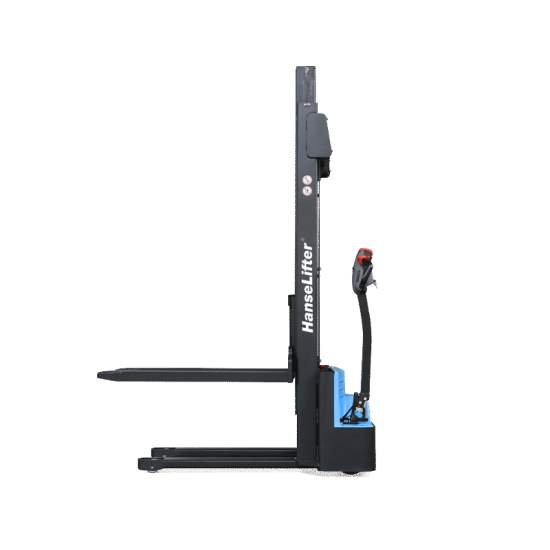

Outstanding in price and performance - electric pedestrian stacker IMOW E-DS10

Simple and reliable, that's how lifting and conveying equipment must be today. The IMOW series combines both properties and also convinces with an extremely low purchase price. The electric  pedestrian stacker IMOW E-DS10  from HanseLifter lifts pallets up to 1,000 kg and has a maximum lifting height of 3,300 mm. Stacking pallets has never been so cheap.


Thanks to its compact dimensions, you can easily drive the IMOW E-DS10 pedestrian stacker through narrow aisles in the warehouse. The side-mounted drawbar also enables a good view of the pallet to be transported and makes navigation easier. Order the IMOW E-DS10 on a special offer and save a lot of money!

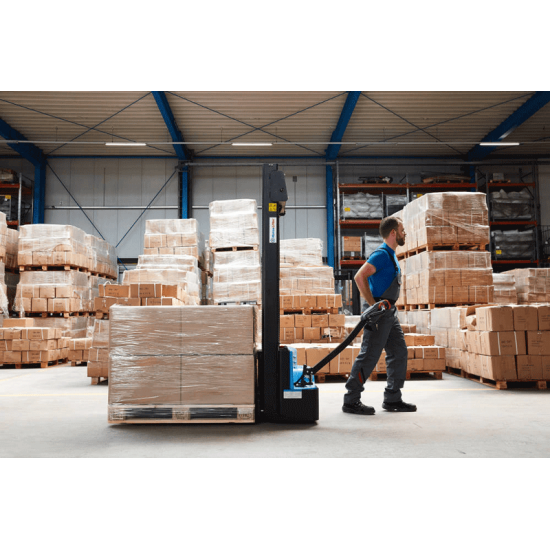

Pedestrian stacker IMOW EDS1033 while driving

Pedestrian stacker IMOW EDS1033 while driving

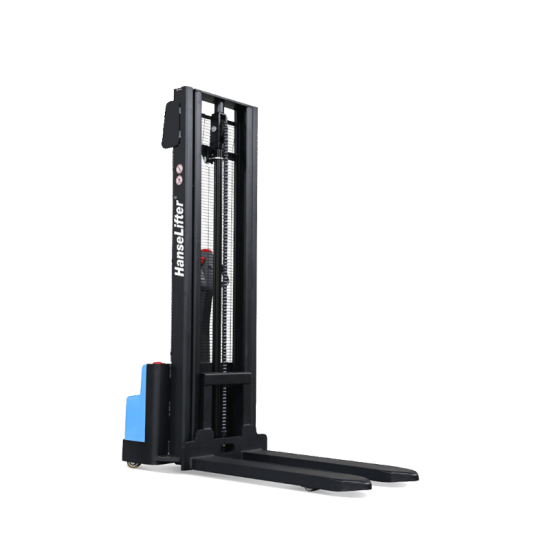

Duplex mast

The pedestrian stacker IMOW E-DS10 is equipped with a duplex mast.

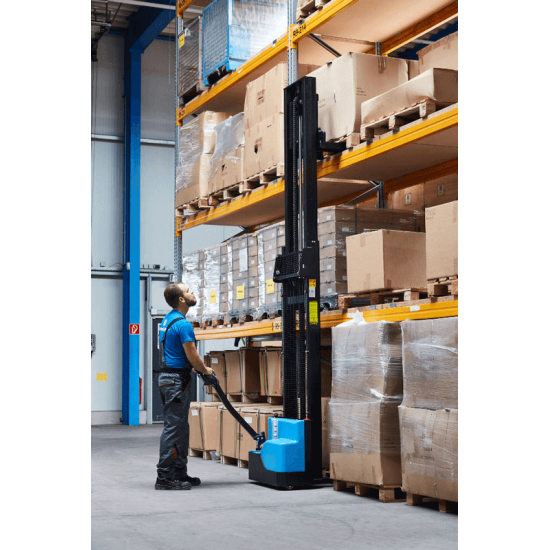

Pedestrian stacker IMOW EDS1033 on high rack

Pedestrian stacker IMOW EDS1033 on high rack

Gel battery - less sensitive to vibrations

The electric pedestrian stacker IMOW E-DS10 is equipped with an effective gel battery and integrated storage device and offers the operator maximum flexibility. Gel batteries have the advantage that they offer greater protection against vibrations. The encapsulated design also makes handling easier and improves safety. The user need not fear leakage of an intact gel battery.

modelIMOW EDS1033
featuresDC drive
Load capacity (kg)1,000
max.lifting height (mm)3,300
Clearance height (mm)2,200
driveElectric / DC
Total length (mm)1,656
Total width (mm)800
Fork length (mm)1,150
Fork outer distance (mm)570
Turning radius (mm)1,408
Gradeability (with / without load,%)3/10
Driving speed (min / max, km / h)3.5 / 4
Drive motor (DC, kW)0.65
Lifting motor (DC, kW)2.2
Battery (V / Ah)2x12 / 85
own weight526
