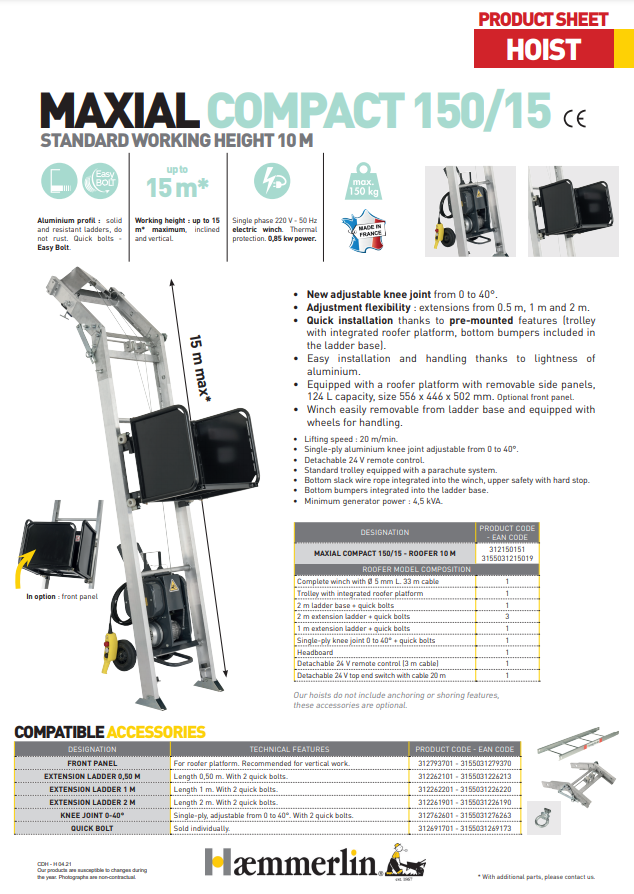

HOIST CASTOR STEEL compact 150KG -UP TO 15M

• Building site hoist with interlocking ladder sections, in aluminium profile.
• Load capacity 150 kg.
• New adjustable knee joint from 0 to 40°.
• Adjustment flexibility: extensions from 0.5 m, 1 m and 2 m.
• Quick installation thanks to pre-mounted features (trolley with integrated roofer platform, bottom bumpers included in the ladder base).
• Easy installation and handling thanks to lightness of aluminium.
• Robust and resistant, does not rust.
• Equipped with a roofer platform with removable side panels, 124 L capacity, dimensions 556 x 446 x 502 mm. Front panel optional.
• Winch easily removable from ladder base and equipped with wheels for handling.
• Maximum working height 15 m inclined and vertical (with additional parts, please contact us).
• Lifting speed: 20 m/min.
• Single-ply aluminium knee joint adjustable from 0 to 40°.
• Single-phase 220 V / 50 Hz electric winch, thermal protection. Power 0.85 kw
• Detachable 24 V remote control.
• Standard trolley equipped with parachute system.
• Bottom slack wire rope integrated into the winch, upper safety via hard stop.
• Bottom bumpers integrated into the ladder base.
• Minimum generator power: 4.5 kVA.
• Quick assembly of the hoist without tools thanks to the Easy Bolt quick bolts system.
• Weight : 147 kg.

*The package price includes the rails and extensions for a conveying height of up to 10 m.
