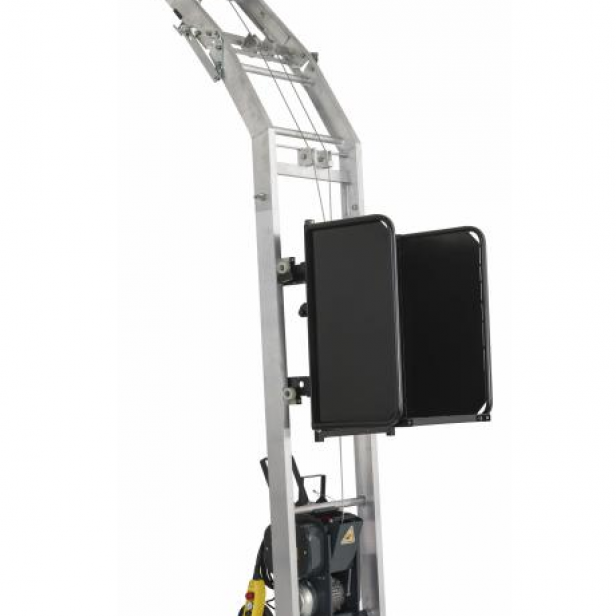

Name: HOIST CASTOR STEEL COMPACT 175KG - UP TO 20 M LADDER HOIST
Brand: HAEMMERLIN
Availability: OutOfStock

HOIST CASTOR STEEL COMPACT 175KG - UP TO 20 M

Delivery up to 30 days

HOIST CASTOR STEEL COMPACT 175KG - UP TO 20 M

0,00€

(With Tax)

Qty

Building site hoist with interlocking ladder sections, in aluminium profile.
Payload increased to 175 kg.
Maximum working height extended to 20 m.
Large ladder support width: better stability.
New pre-angled knee joint adjustable from 30 to 60°.
Roofer platform with with removable side panels, 197 L capacity, dimensions 558 x 445 x 794 mm. Front panel optional.
Aluminium ladders. Strong and resistant, rustproof.
Easy installation and handling thanks to lightness of aluminium.
Winch easily removable from ladder base and equipped with wheels for handling.
Maximum working height 20 m inclined and vertical (with additional parts, please contact us).
Lifting speed: 22 m/min.
Pre-angled aluminium knee joints from 30 to 60°.
Single-phase 220 V / 50 Hz electric winch, thermal protection. Power 1.1 kw.
Detachable 24 V remote control.
Standard trolley equipped with parachute system.
Bottom slack wire rope integrated into the winch, upper safety via hard stop.
Bottom bumpers integrated into the ladder base.
Minimum generator power: 5.5 kVA.
Quick assembly of the hoist without tools thanks to the Easy Bolt quick bolts system.
Weight : 167 kg.

HOIST CASTOR STEEL COMPACT 175KG - UP TO 20 M
