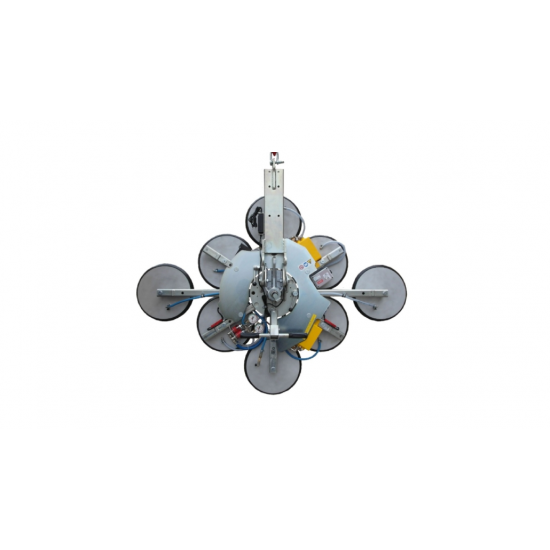

The VB8 RCMBMd4 is the vacuum glass lifter, with battery operating system, dual vacuum circuit and lifting capacity 1200kg.

• lifting capacity 1200 kg
• battery operating system
• 8 suction pads d.390 mm
• pad spread mm 1810×1360
• manual 90° tilt with automatic stop
• manual 360° rotation, with possibility of automatic stop or continues rotation
• dual vacuum circuit EN13155

The VB8 RCMBMd4 is a below-the-hook vacuum glass lifter suitable for lifting and handling of glass units weighing up to 1200 kg.
This model has 8 suction pads d.390 mm. Vacuum glass lifter VB8 RCMBM is battery powered by rechargeable batteries that, if necessary, may be easily removed and quickly replaced.

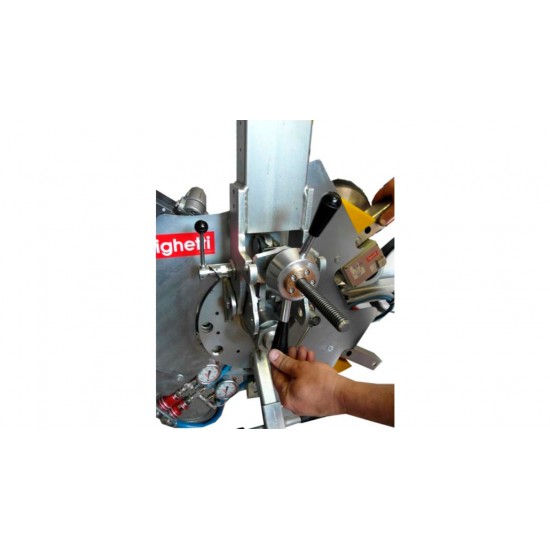

The VB8 RCMBMd4 vacuum lifter features manual tilt and manual 360 degree rotation with possibility of automatic stop or continues rotation.
Its compact and flat design permit that VB8 could work also behind scaffoldings.

VB8 RCMBMd4 is specific vacuum glass lifter for construction site use with dual vacuum circuit according to EN13155.
