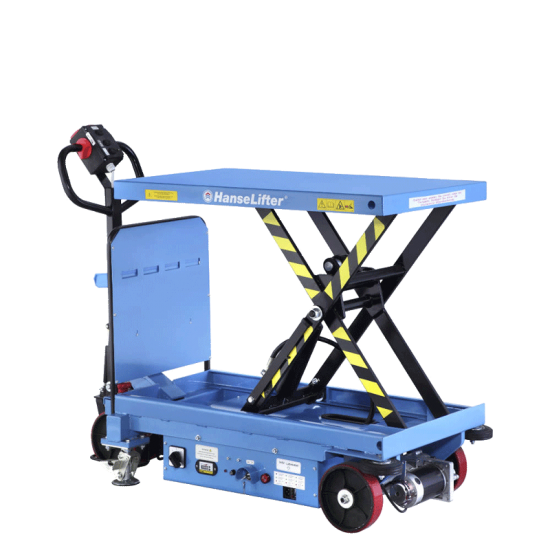

Electric moving & lifting table E-SPA500 - 500kg

Lifting table trolley E-SPA500 - lift and drive electrically

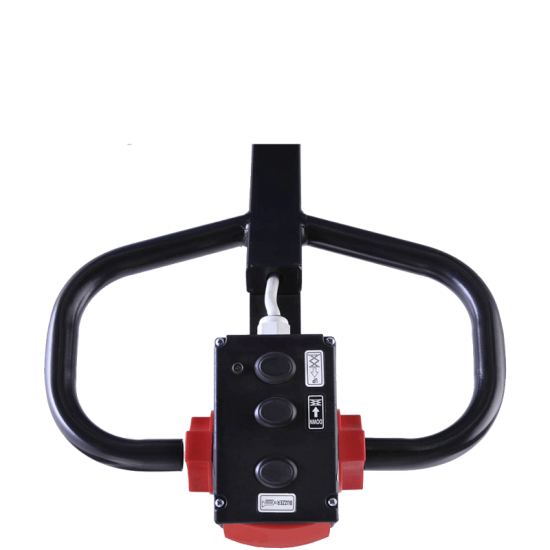

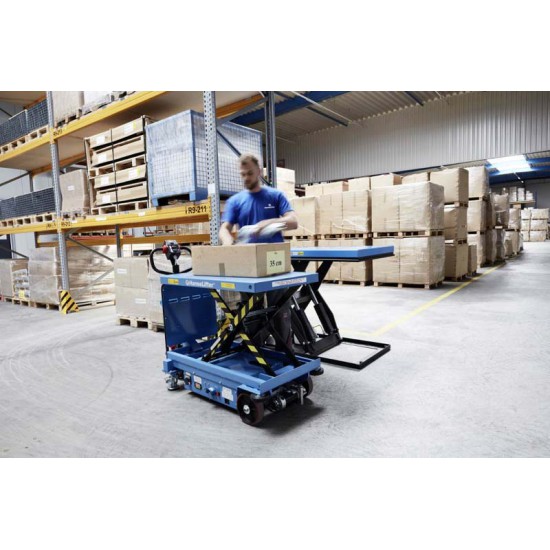

The electric lifting table trolley E-SPA500from HanseLifter helps you with loading, unloading or equipping shelves. Up to 500 kg can be transported and lifted. The ergonomics at the workplace are significantly increased, as the platform can be raised up to a maximum of 1,000 mm. High-quality workmanship and equipped with many functions, the electric lifting table trolley impresses across the board. The powder-coated frame withstands the daily work and the constant load in the warehouse and operation with ease. Premature corrosion is prevented thanks to the high-quality powder coating. Lifting is carried out electrically using a lever on the hand drawbar, as is driving. Thanks to the internal charger, the E-SPA500 electric lift table trolley can be easily charged at any socket. Practical storage compartments on the back offer space for tools or small parts. The boxes are removable and easy to clean. Benefit from our low price guarantee and order your lift table trolley at a budget price!

Electric lifting and driving

Save energy and let the electric lifting table trolley E-SPA500 and its powerful lifting motor with 0.8 kW bring your goods to the right working height. The process is also done electrically. With the built-in 0.5 kW drive motor, the E-SPA500 lift table trolley reaches a maximum speed of 3.0 km / h without load and 2.6 km / h with load. The batteries are low-maintenance and can be charged at any socket thanks to the internal charger (24/8 V / A).

Castors and brakes

Polyurethane rollers ensure particularly smooth running on even surfaces. They are abrasion-resistant and also have excellent traction. The parking brake on the swivel castor fixes the lifting table trolley E-SPA500 and gives it a firm and safe stand.

• Fully electric lifting, lowering and driving
• Load capacity: 500 kg
• Stroke range: 465 - 1,000 mm
• Handle height: 1,100 mm
• Platform dimensions (lxw): 1,020 x 610 mm
• Lift motor: 0.8 kW
• Drive motor: 0.5 kW

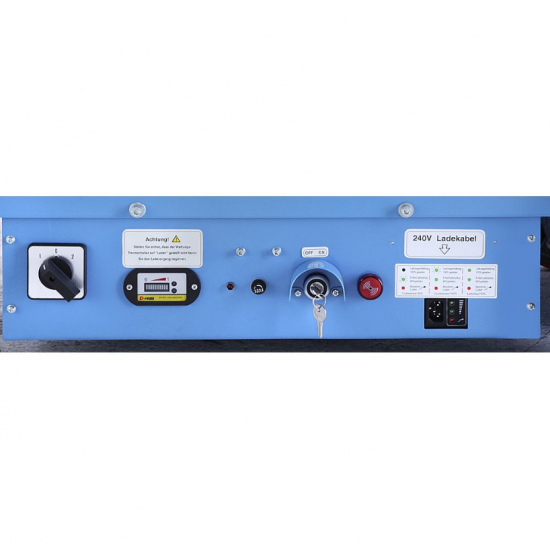

• Internal charger: 24/8 V / A
• Battery voltage: 2x 12/54 V / Ah
• Parking brake on the swivel castor
• Castors: polyurethane
• High quality powder coating

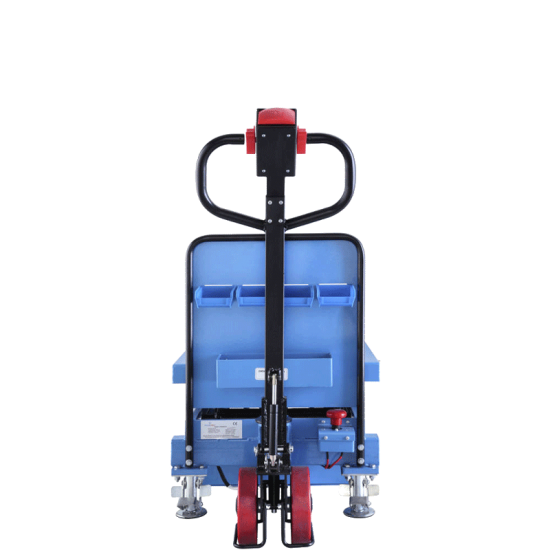

• Practical storage compartments

• Technical specifications	Lifting table trolley E-SPA500
  Load capacity (kg)	500
  features	electric driving and lifting
  Stroke range (mm)	465-1000
  Stroke (mm)	535
  Platform size (LxW) (mm)	1020 x 610
  Total length (mm)	1500
  Total width (mm)	667
  service	Hand, go
  Handle height (mm)	1100
  Lifting speed with / without load (mm / s)	35/105
  Lift motor (kW)	0.8
  Drive motor (kW)	0.5
  Charger, internal	24/8
  Battery capacity (Ah)	2x 12/54
  Tires	Polyurethane
  Service brake	Parking brake
  Dead weight (kg)	203
