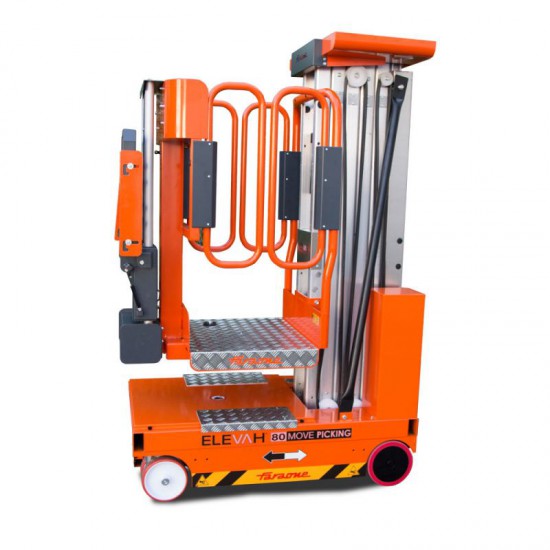

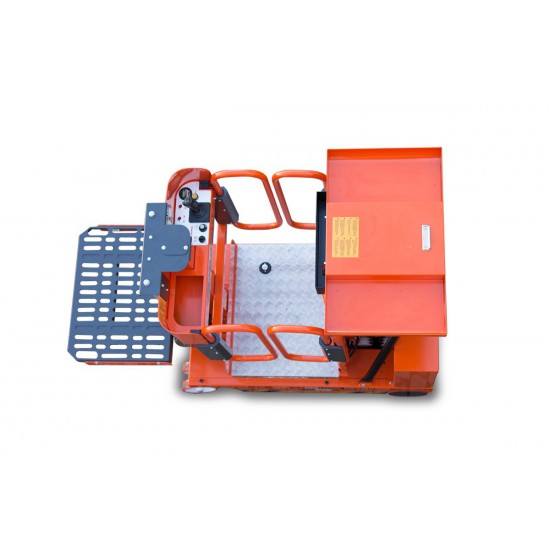

ORDER PICKER ELEVAH 80 - 7,78Μ WORKING HEIGHT

Elevah® 80 MP is unique amongst stock picker in that it can reach a working height of 7.78 m, whilst allowing the picking of materials of up to 100 kg in weight.

• Max. working height 7,78 m
• Max capacity 200 kg
• Number of people 1
• Use Internal - External
• A Closed machine height 1980 mm
• B Minimum platform height 650 mm
• C Maximum platform height 5780 mm
• D Base overall dimensions 1280 mm
• E 1780 mm
• F 780 mm
• G Cage dimensions 640 mm
• H 710 mm
• Machine weight 860 kg
• K Fixed picking tray dimensions 440 mm
• L 740 mm
• Fixed picking tray capacity 20 kg
• Drive wheels dimension Ø 220 x 65 mm
• Swivel wheels dimensions Ø 200 x 50 mm
• PICKING PLATFORM
• Adjustment Electrical
• Stroke 660 mm
• Min. height from the ground 1030 mm
• Maximum height from the ground 6830 mm
• I Dimensions 500 mm
• J 680 mm
• Capacity 100 kg
• PERFORMANCE
• Power supply Electrical
• Batteries Lead-Acid Batteries 12V 105 Ah
• Battery charger 110V – 220V 50/60HZ
• M Maximum climbing ability 15%
• Climbing ability at height 2,5%
• Internal turning radius 0
• External turning radius 1095 mm
• Max. speed (rising – descending) 0,2 m/s
• Maximum speed (with basket on the ground) 5 km/h
• N Maximum pressure for wheel at full load* 3,7 kN
• Work cycles (with fresh batteries) ** Ca. 130
• * Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).
• ** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.
• Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.
• Elevah, the self-propelled aerial platform made in Italy

accessories

2PNEU	DOUBLE DRIVE WHEEL FOR BETTER GRIP ON SLIPPERY FLOORS The kit includes the relative cover and the side rollers. With this kit, the minimum width of the machine will be 980 mm.
PARACO50	Two Upholstered Covers 50 cm
REDLIGHTS	RED LIGHTS - Pair of red lateral signaling lights
RLB ( l.1020 )	Side rollers wide 1020 mm, to drive through shelf aisles
E5PEPP	Components to enlarge the picking tray.
PCC	Current socket on the basket. 24 V/5 A
SP.TFL	3 extractable protections for picking platform
CL	Wooden Crate for shipping
PCCUSB	Socket on board basket with USB socket
E5 PMF	Extension for picking platform (removable) + 27 cm (for electrical picking platform only)
65 RADAR 1B	Rear Anti-collision Radar System for the Chassis
PFE.P	Front protection on picking elettric's tray
E5CPT	Carry-All rack to fit on the picking plate, removable, 60 cm height.
E5 C	Belt with winder to block the goods during picking activities
RLA ( l.980 )	Side rollers wide 980 mm, to drive through shelf aisles
PROPEPP	Perimeter protection for picking platform
E65 PO	E65 PO
RAL1	Customised machine finish painting
RAL2	Custom painting of the machine base
ZNC	Galvanized machine plus epoxy powder coated
BLUESPOT1	Front signalling light
BLUESPOT2	Pair of signaling lights (front + rear)
51 KEY	Machine start-up with code (only for 24 Volt version)
65 RADAR 1	Frontal Anti-collision Radar System for the Chassis
65 RADAR 3	Anti-collision Radar System to the Top (Driver’s Head protection)
65 BKIT	Kit with 2 batteries for 24H operation
BG	Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
LITIO 4	Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °
65PICK.PLE	Certification of the machine following Aerial Platform norms. The weight of the machine becomes 1010 kg
65PAN-PR	Crushing protection under the basket
E65BLMA	Directional block
KEY ACC	KEY ACC
65 KEY ACC	65 KEY ACC
51 IN	Additional control button to operate the machine with both hands
80 COV	Resistant tarpaulin
80 SCR	Loading system for ramps
IP65	IP65 Certification
BSA	Door block by lifted basket
SCP	Extra remote control for loading on ramps
TA 12	Cushioning Pad in EVA
