SELF-PROPELLED ELECTRIC PLATFORM ELEVAH 65 MOVE PICKING WORKING HEIGHT UP TO 6.5M

Elevah 65 Move is a compact self-propelled platform with electric elevation that allow reaching up to 6,5m.

• MAX. WORKING HEIGHT: 6,5 m
• COMPACT: it measures only 78x128 cm

• IT WEIGHT only 680Kg
• MAXIMUM CAPACITY: 200kg (1 person)
• MANEUVERABLE: Turning radius= 0
• COMFORTABLE: practical and safe access to the platform
• STANDARD COLORING: grey and orange. Customizable coloring upon request
• DOOR LOCK: it avoids the accidental opening of the basket

• INCLINOMETER: anti-tilt system
• DETECTORS: 3 acoustic and light presence indicators.
• ADDITIONAL REMOTE CONTROL: it allows the machine's translation during the loading phase on ramps
• EMERGENCY DESCENT


Elevah 65 Move is a compact and lightweight platform, ideal for carrying out maintenance work at height in total safety.

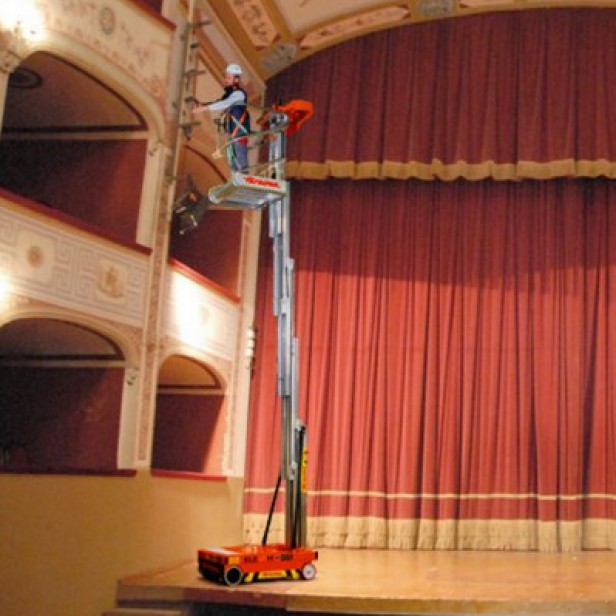

The closed machine measures only 1.72 m height, allowing it easily pass through very narrow spaces such as hallways and pass through all kind of doors. Thanks to its compactness and low weight, it is a suitable solution for theaters, museums, conference halls, in addition to the industrial sector.

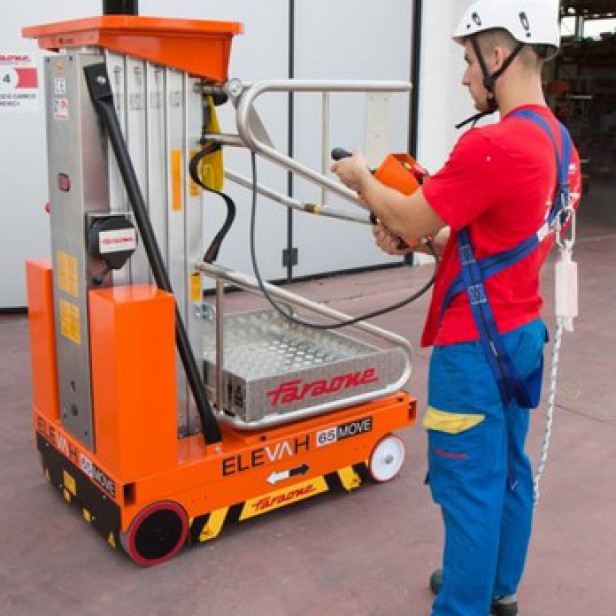

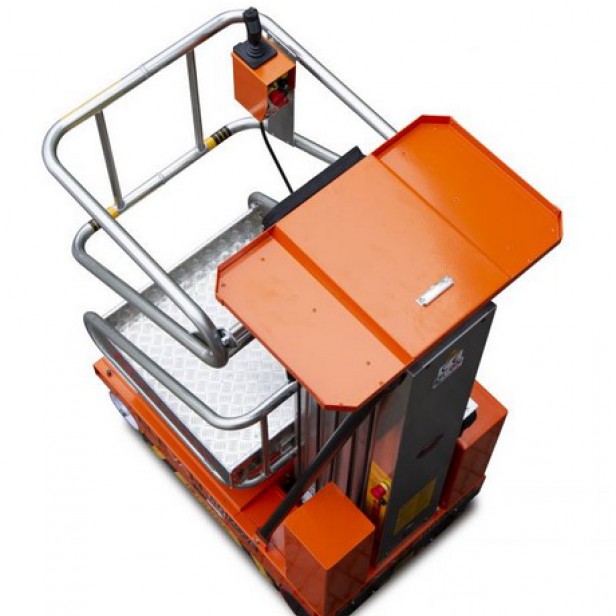

The basket has a comfortable and safe access that allows the operator to work at height protected on all sides, reducing the risks of injury and optimizing time.

Easy to maneuver thanks to the convenient joystick and the zero turning radius allows you to move easily even in the narrowest places.

The platform can be easily loaded onto a van thanks to the remote control and conveniently transported.

In the equipment and accessories section, you will find a list of standard components and accessories to customize the Elevah 65 Move and adapt it to your needs.

• FRONT, REAR AND CEILING ANTI-COLLISION RADAR
• SPEED CONTROL: speed limiter with basket on the ground
• BASKET BLOCK: max. at 1,95 m height...
• BLUESPOT1 AND BLUESPOT2 (driving direction signalling light)
• ANTI-CRUSHING PROTECTION UNDER THE BASKET

MORE OPTIONAL

• DIFFERENT COLORING OF MACHINE UPON REQUEST
• GALVANIZING TREATMENT
• DIRECTIONAL LOCKING OF SWIVEL WHEELS
• TRUCK LOADING AND UNLOADING SYSTEM

Standard charger with retractable cable (Not included if the BKIT option is selected).
The machine can work at temperatures between -15° C and +40° C

The machine can work at temperatures between -15° C and +40 °C

    Τechnical Specifications Elevah 65

Elevah, the self-propelled aerial platform made in Italy

Compliant with EN280 rule.
Approved for indoor use or outdoor use in the absence of wind.

** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

* Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).
