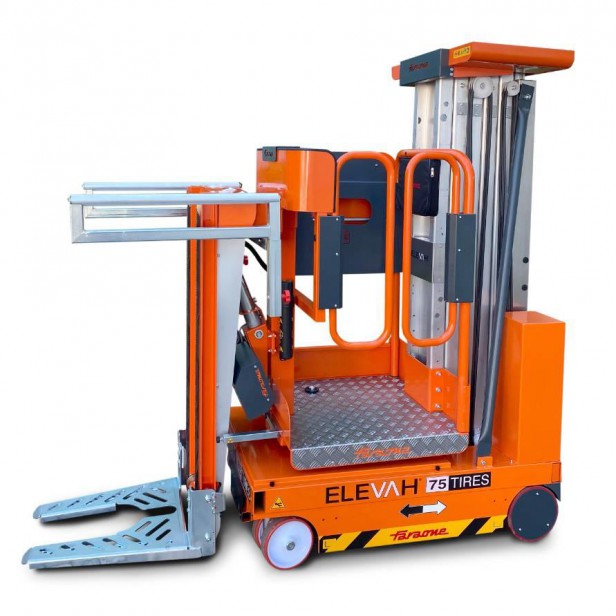

ORDER PICKER ELEVAH 75 TIRES - 7.6Μ WORKING HEIGHT

A special stock picker with a double tool to lift a tire set from the ground and to store or pick it up.

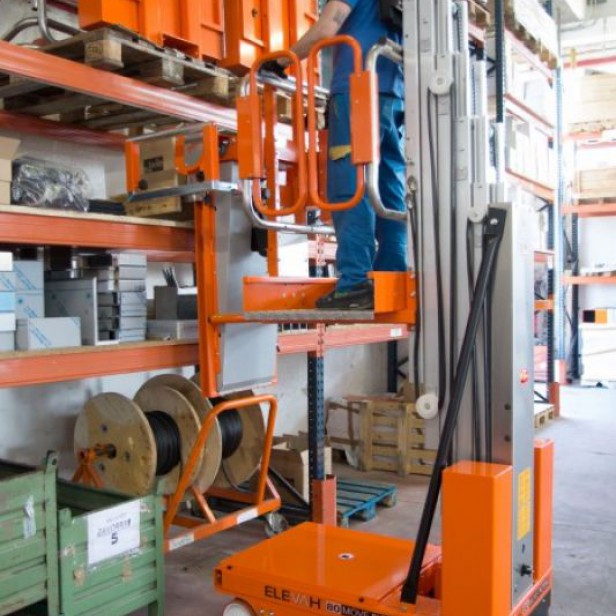

FEATURES OF THE MACHINE

• MAX. WORKING HEIGHT: 7,60 m

• It allows to lift a tire set directly from the ground

• COMPACT: only 78 cm wide

• MAX. CAPACITY: 250 kg (1 Person)

• MANEUVERABLE: Turning radius = 0

• COMFORTABLE: practical and safe access to the platform

FEATURES OF THE TYRE STORAGE TOOL:

• CAPACITY: up to 150 kg load

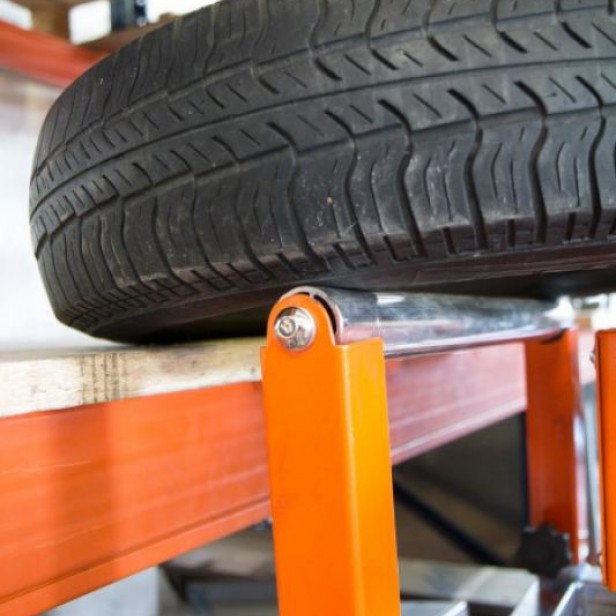

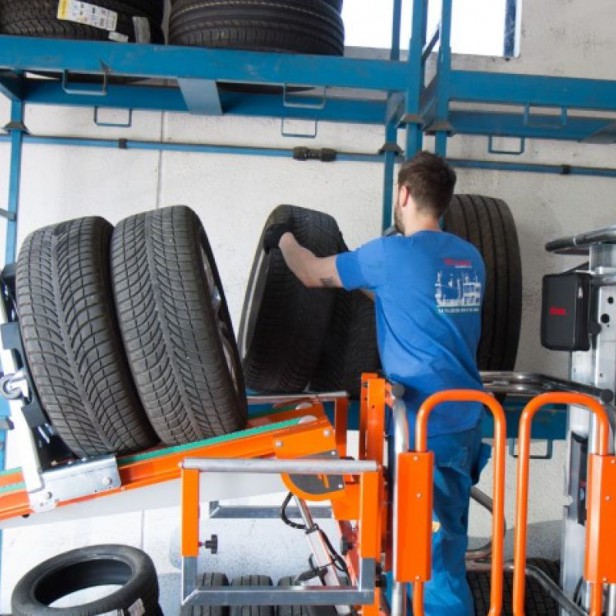

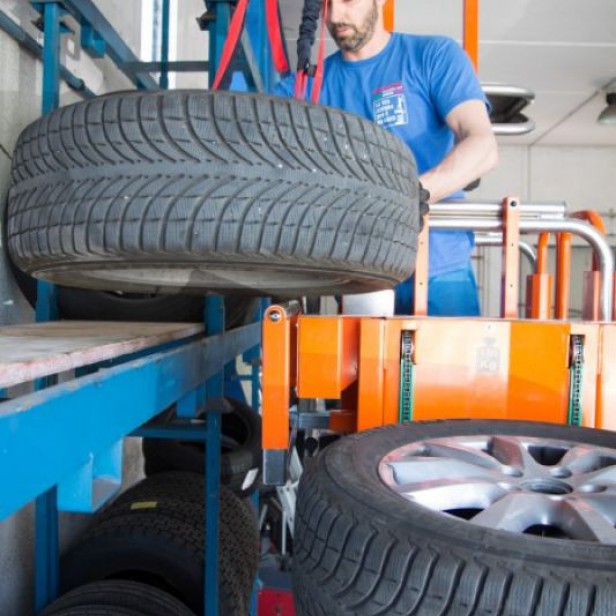

• INCLINATION: allows the tyres to be positioned horizontally and stored effortlessly by rolling them on the shelf

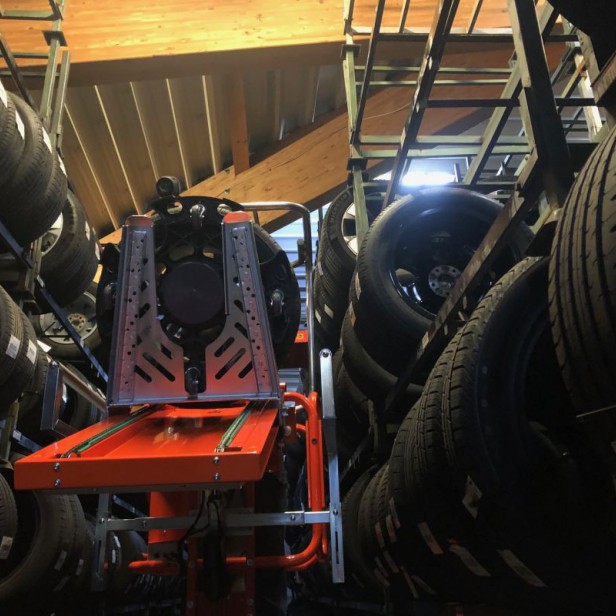

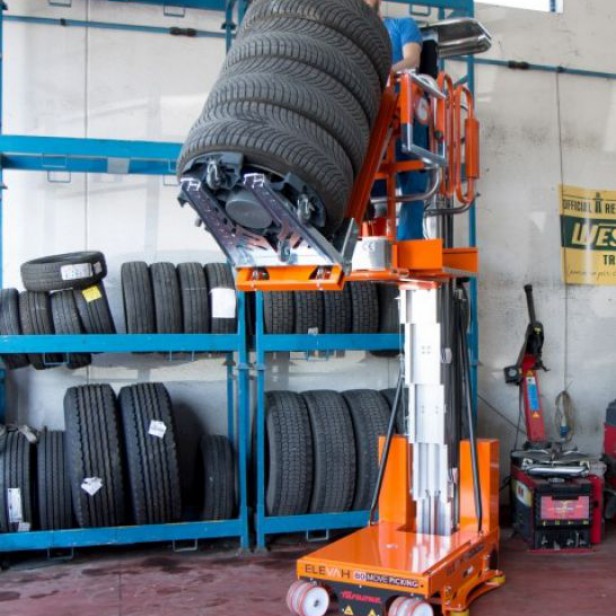

• System for picking up the complete set of tyres directly from the ground

• Automatic adjustment of the stroke to set distance of the tires from the operator

• Side tool rollers with adjustable height and width to make storage operations easier.

• Max. working height 7,60 m
• Max capacity 250 kg
• Number of people 1
• Use Internal - External

A Closed machine height 1960 mm

A1 Machine height with accessory 2755 mm

B Minimum platform height 455 mm

C1 Max platform height with vertical tyres tool 5610 mm

C2 Max platform height with horizontal tyres tool 5010 mm

C3 Max picking platform height with vertical tyres tool 6330 mm

C4 Max picking platform height with horizontal tyres tool 6160 mm

D Base overall dimensions 2080 mm

E 780 mm

F Cage dimensions 730 mm

G 705 mm

Machine weight 1085 kg

H Fixed picking tray dimensions 460 mm

I 760 mm

Fixed picking tray capacity 20 kg

Drive wheels dimension Ø 230 x 60 mm

Swivel wheels dimensions Ø 200 x 40 mm

RUBBER TOOL

O Height 1375 mm

K Fork size 600 mm

L 555 mm

Vertical adjustment Electrical

J Stroke 1115 mm

• Min. height from the ground 40 mm
• Maximum height from the ground 5200 mm
• Rotation Electrical
• Max. rotation angle 90°
• Maximum height from the ground (rotated) 6160 mm
• Capacity 150 kg

PERFORMANCE

• Power supply 24 V
• Batteries Lead-Acid Batteries 12V 105 Ah
• Battery charger 110V – 220V
• M Maximum climbing ability 15%
• Climbing ability at height 2,5%
• Internal turning radius 0
• External turning radius 1025 mm
• Max. speed (rising – descending) 0,2 m/s
• Maximum speed (with basket on the ground) 5 km/h
• N Maximum pressure for wheel at full load* 4,6 kN
• Work cycles (with fresh batteries) ** Ca. 100

* Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.

ACCESSORIES

• 2PNEU DOUBLE DRIVE WHEEL FOR BETTER GRIP ON SLIPPERY FLOORS The kit includes the relative cover and the side rollers. With this kit, the minimum width of the machine will be 980 mm.
• PARACO50 Two Upholstered Covers 50 cm
• REDLIGHTS RED LIGHTS - Pair of red lateral signaling lights
• RLB ( l.1020 ) Side rollers wide 1020 mm, to drive through shelf aisles
• E5PEPP Components to enlarge the picking tray.
• PCC Current socket on the basket. 24 V/5 A
• CL Wooden Crate for shipping
• PCCUSB Socket on board basket with USB socket
• E5 PMF Extension for picking platform (removable) + 27 cm (for electrical picking platform only)
• 65 RADAR 1B Rear Anti-collision Radar System for the Chassis
• PFE.P Front protection on picking elettric's tray
• E5CPT Carry-All rack to fit on the picking plate, removable, 60 cm height.
• 75TI.BR Arm with lifting ropes for stowing tyres flat (tyres max 35 kg).
• 75TI.2REG Tyres storage system with double adjustment (stroke/slope)
• RLA ( l.980 ) Side rollers wide 980 mm, to drive through shelf aisles
• PROPEPP Perimeter protection for picking platform
• E75 PO E75 PO
• RAL1 Customised machine finish painting
• ZNC Galvanized machine plus epoxy powder coated
• BLUESPOT1 Front signalling light
• BLUESPOT2 Pair of signaling lights (front + rear)
• 51 KEY Machine start-up with code (only for 24 Volt version)
• 65 RADAR 3 Anti-collision Radar System to the Top (Driver’s Head protection)
• 65 BKIT Kit with 2 batteries for 24H operation
• BG Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
• LITIO 4 Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °
• 65 AN-PR Crushing protection under the basket
• 65PAN-PR Crushing protection under the basket
• E65BLMA Directional block
• 65 KEY ACC 65 KEY ACC
• 51 IN Additional control button to operate the machine with both hands
• 80 COV Resistant tarpaulin
• 65 COV Resistant tarpaulin
• IP65 IP65 Certification. Requires AGM batteries
• BSA Door block by lifted basket
• SCP Extra remote control for loading on ramps
• TA 12 Cushioning Pad in EVA
• 2Trolley6 Kit 6 Trolleys for tires, 630 mm capacity kg 120,four wheels with brake
• 2Trolley7 Kit 4 Trolleys for tires, 700 mm capacity kg 150
