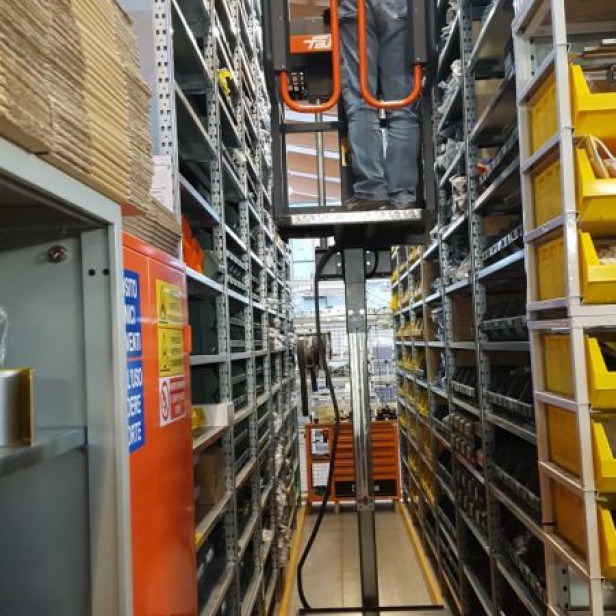

ORDER PICKER ELEVAH E5 - 5.15Μ WORKING HEIGHT

The new self-propelled stock picker + COMPACT + WIDE + HANDY + COMFORTABLE + SAFE

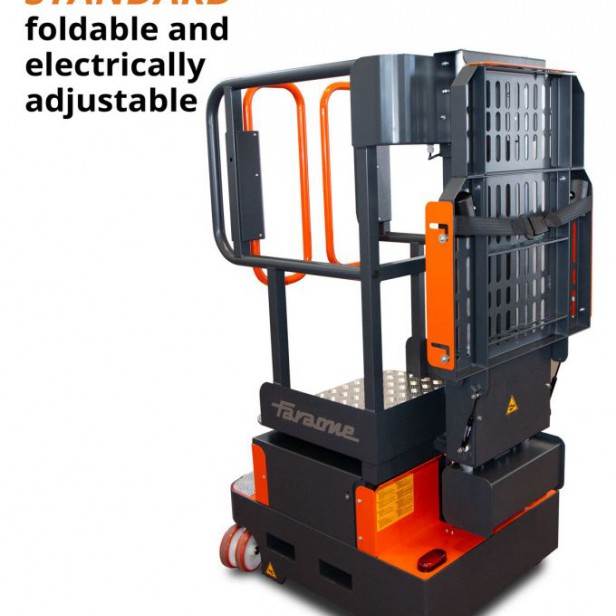

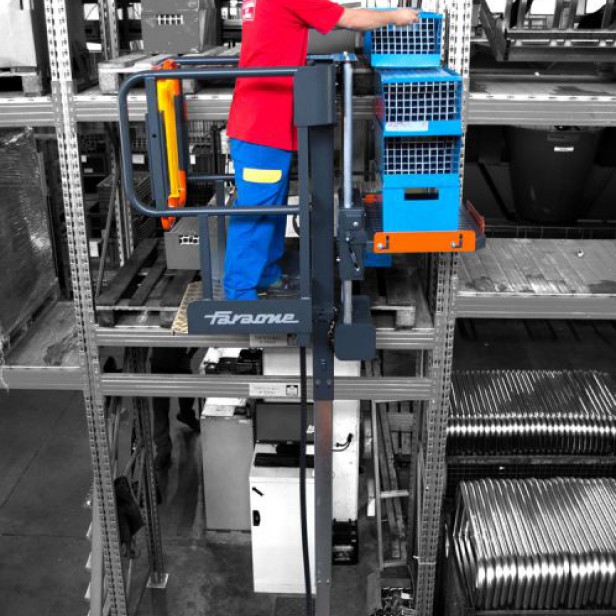

Picking plate having 100 kg safe load capacity, electrically adjustable and foldable.

On demand a fixed picking plate instead of the electrical one, having 3 possible adjustments.

Elevah 5 picking, the new generation of stock pickers

+ COMPACT

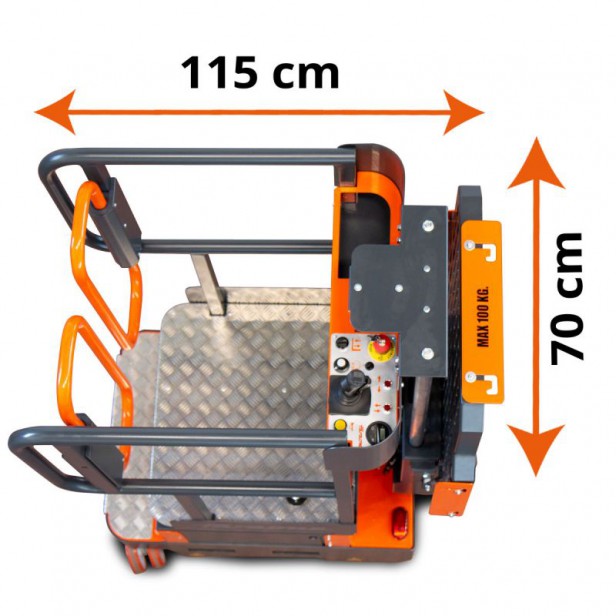

The most compact of its category (footprint cm 70 x 115).

+ HANDY

It turns on itself. Extremely easy to drive.

+ WIDE

Large basket, convenient for all sizes.

+ COMFORTABLE

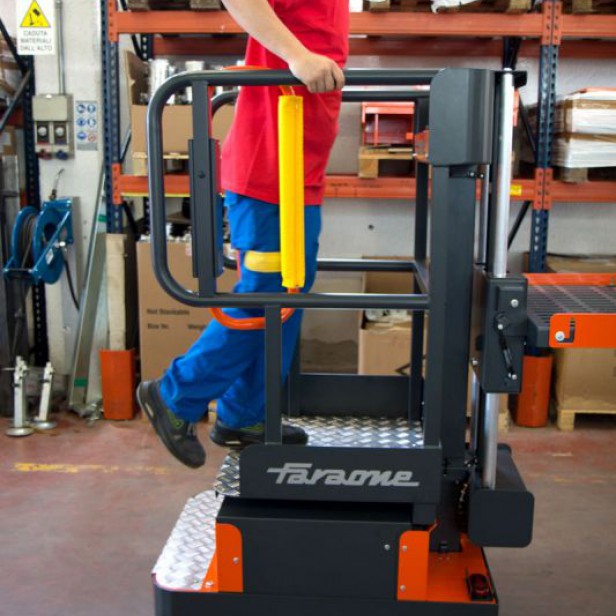

Practical and safe access thanks to the large platform and side handles.

+ SAFE

CONTROL ACCESS

Automatic door block. Prevents accidental opening.

TILT DEVICE

Prevents lifting on sloping surfaces.

SIGNALS

3 presence detectors that can be integrated with the BLU SPOT accessory.

JOYSTICK

All controls at hand.

SPEED CONTROL

Speed control adjustment.

STANDARD Retractable cable for the charger

OPTIONAL

RADAR SYSTEM

3 anti-collision radar systems can be fitted on the machine.

KEY ACCESS

Basket block at max. 1,95 m platform height.

ELEVAH 5 ADAPTS TO THE ENVIRONMENT

Manufactured in standard orange/grey colour. It is available in other colours on request, in order to harmonize the machine with the environment where it is used.

In this way it can be used even in settings of aesthetic prestige such as airports, banks, hotels, without creating an aesthetic contrast with the context.

The machine can work at temperatures between -15° C and +40 °C

• Max. working height 5,15 m
• Max capacity 200 kg
• Number of people 1
• Use Internal - External

A Closed machine height 1690 mm

B Min. height from the ground* 289 mm

C Maximum platform height 3150 mm

D Base overall dimensions 1540 mm

E 700 mm

F 1152 mm

G Cage dimensions 685 mm

H 600 mm

• Machine weight 640 kg
• Drive wheels dimension Ø 186 x 60 mm
• Swivel wheels dimensions Ø 150 x 40 mm

PICKING PLATFORM

I Dimensions 500 mm

L 680 mm

Adjustment Electrical

J Stroke 722 mm

Min. height from the ground 790 mm

Maximum height from the ground 4102 mm

• Capacity 100 kg

PERFORMANCE

• Power supply Electrical 24 V
• Batteries 2 Trojan Lead-Acid 12V 105 Ah
• Battery charger 115V – 230V 50/60HZ
• M Maximum climbing ability 15%
• Climbing ability at height 2,5%
• Internal turning radius 0
• External turning radius 1050 mm
• Max. speed (rising – descending) 0,2 m/s
• Maximum speed (with basket on the ground) 5,5 km/h
• N Maximum pressure for wheel at full load** 2,9 kN
• Work cycles (with fresh batteries) *** 100

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

*** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.

accessories

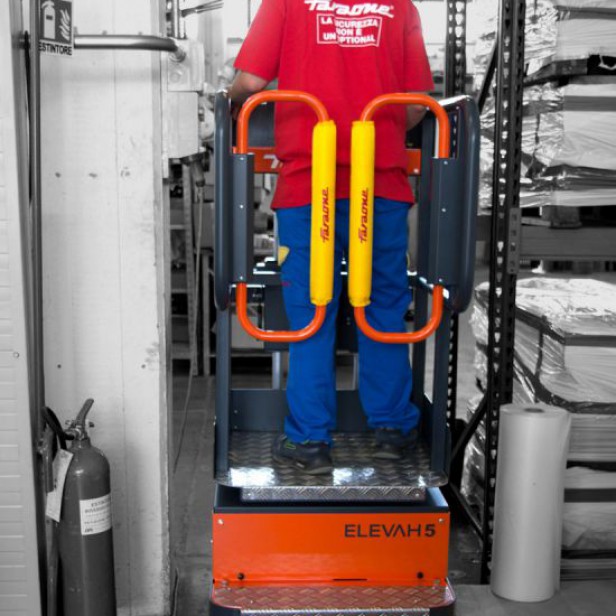

• PARACO50 Two Upholstered Covers 50 cm
• REDLIGHTS RED LIGHTS - Pair of red lateral signaling lights
• E5PEPP Components to enlarge the picking tray.
• PCC Current socket on the basket. 24 V/5 A
• SP.TFL 3 extractable protections for picking platform
• PFE.PM Front protection on picking manual's tray

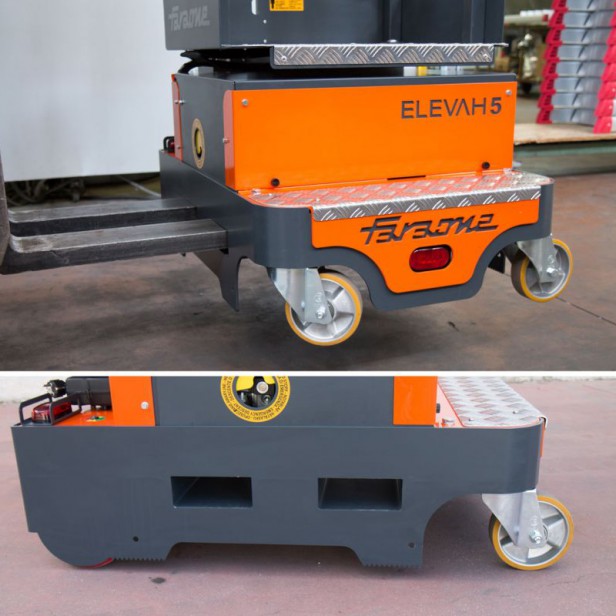

• E5RLA ( l.880 ) Side rollers wide 880 mm, to drive through shelf aisles

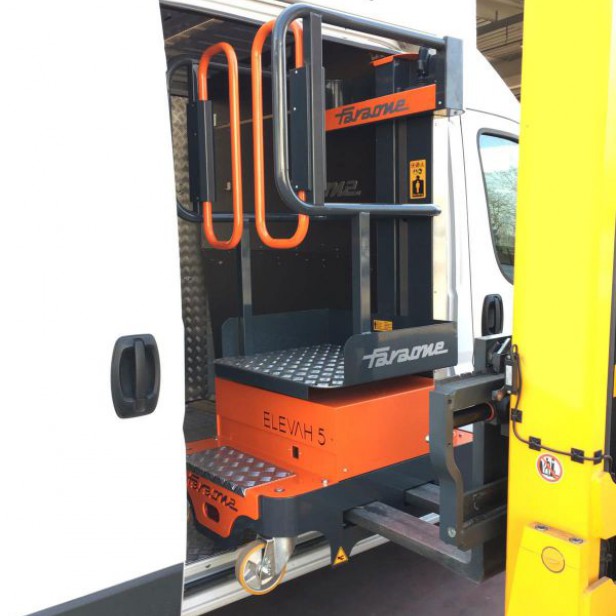

• E5PALLET Unloading system of the machine from truck platform without forklift
• E5RLB ( l.980 ) Side rollers wide 980 mm, to drive through shelf aisles
• E5RLC ( l.1020 ) Side rollers wide 1020 mm, to drive through shelf aisles
• E5 COV Resistant tarpaulin
• CL Wooden Crate for shipping
• 40HANG Clothes hanger tube
• PCCUSB Socket on board basket with USB socket

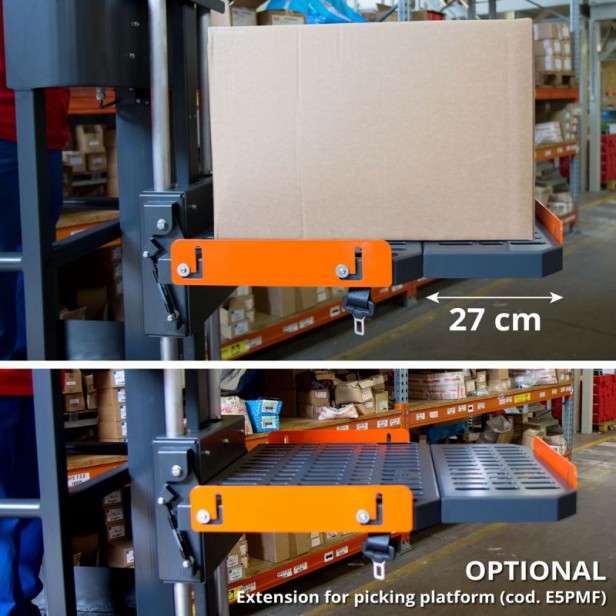

• E5 PMF Extension for picking platform (removable) + 27 cm (for electrical picking platform only)
• PFE.P Front protection on picking elettric's tray
• E5CPT Carry-All rack to fit on the picking plate, removable, 60 cm height.

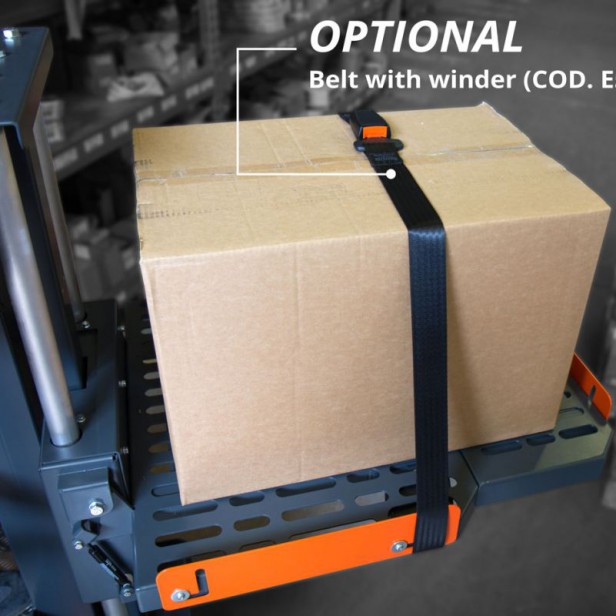

• E5 C Belt with winder to block the goods during picking activities

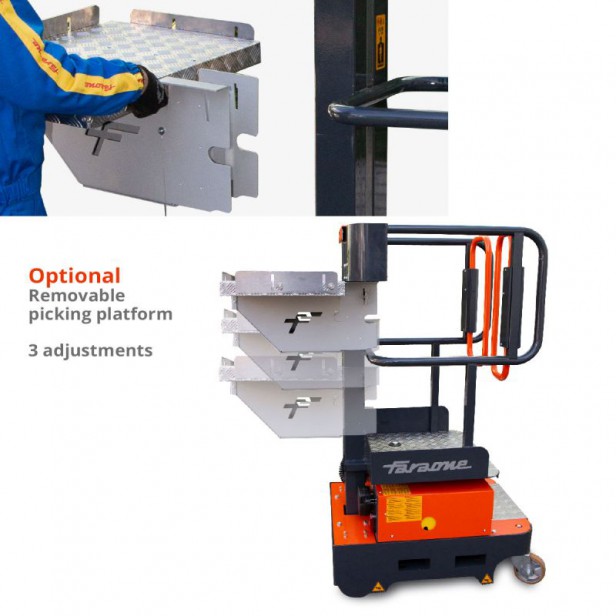

• E5PASP Removable picking platform
• PROPEPP Perimeter protection for picking platformRAL1 Customised machine finish painting
• RAL2 Custom painting of the machine base
• E5RADAR1B Rear Anti-collision Radar System for the Chassis
• E5 PO Protection for the operator’s head above the cage. Made of steel, it protects the operator should small objects fall from above
• BLUESPOT1 Front signalling light
• BLUESPOT1P Pair of signaling lights (front + rear)
• BLUESPOT2 Pair of signaling lights (front + rear)
• 51 KEY Machine start-up with code (only for 24 Volt version)
• E5RADAR1 Frontal Anti-collision Radar System for the Chassis
• E5RADAR3 Anti-collision Radar System to the Top (Driver’s Head protection)
• BG Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
• LITIO 4 Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °
• E5 ZI.VE Elevah 5 ZI.VE
• PEVA2 External protection for the Basket
• E5P.PLE Certification of the machine following Aerial Platform norms. The weight of the machine becomes 788 kg
• E5 AN-PR Crushing protection under the basket
• E5BLMA Directional electric block that can be activated at height, and double steering wheels with anti-crushing protection.
• KEY ACC KEY ACC
• 51 IN Additional control button to operate the machine with both hands
• IP65 IP65 Certification. Requires AGM batteries
• BSA Door block by lifted baske
• SCP Extra remote control for loading on ramps
• E5 GREEN E5 GREEN
• E5 WHITE E5 WHITE
• TA 11 Cushioning Pad in EVA

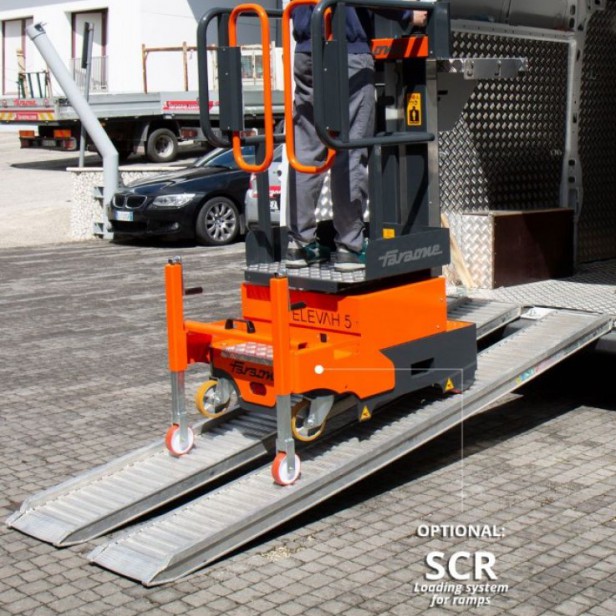

• E5 SCR Loading system for ramps
