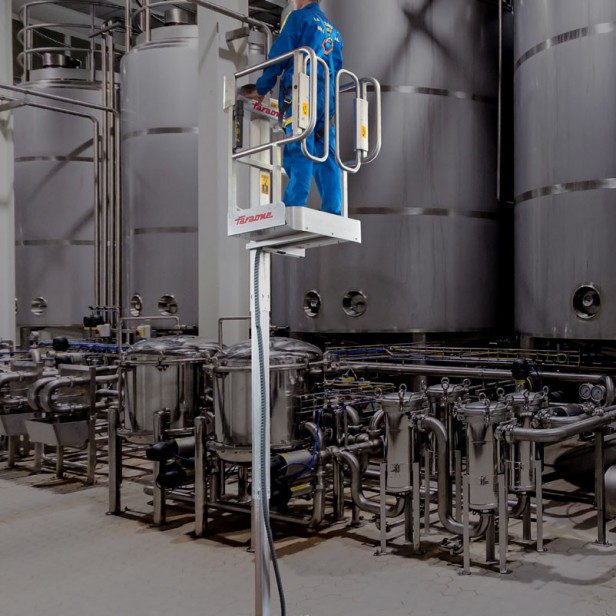

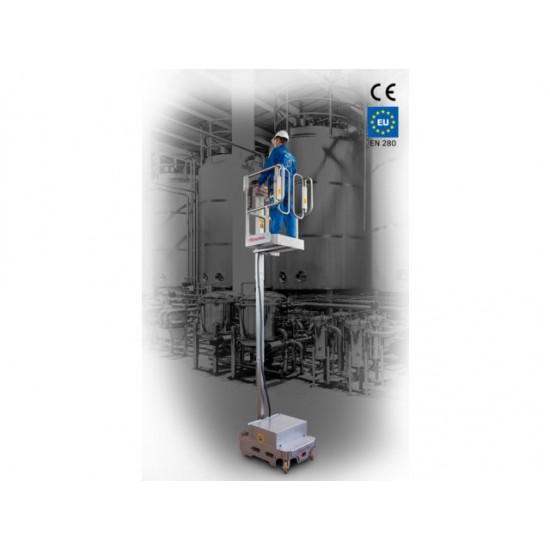

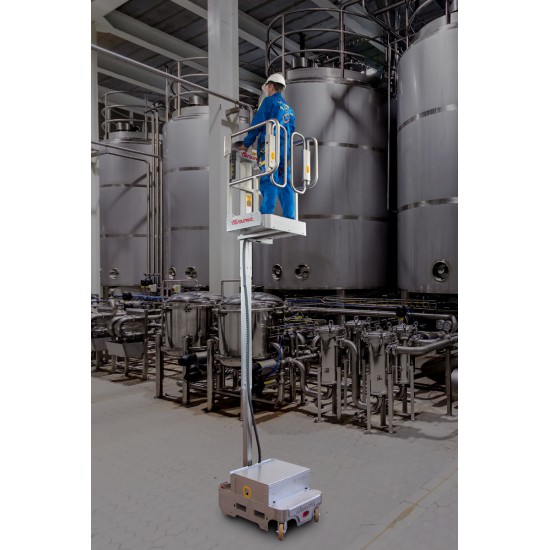

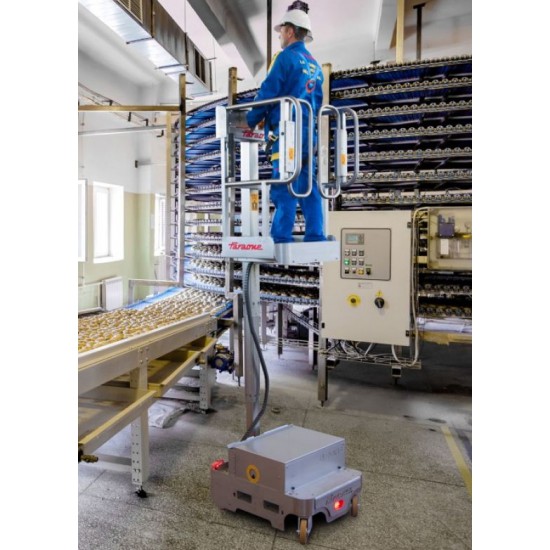

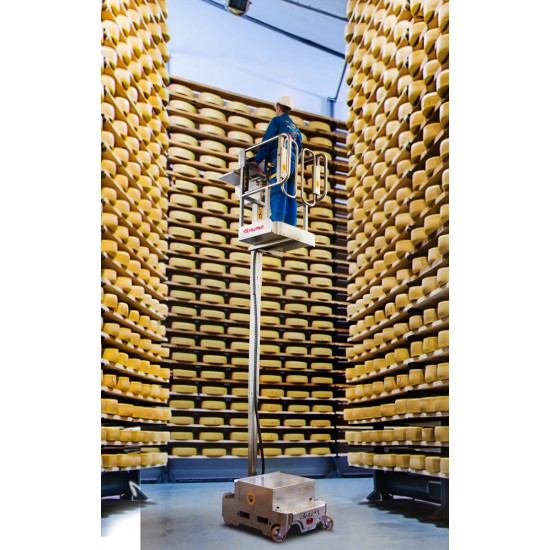

ORDER PICKER ELEVAH E5 INOX - 5.15Μ WORKING HEIGHT

• The new inox self-propelled stock picker + COMPACT + WIDE + HANDY + COMFORTABLE + SAFE

• Picking plate having 100 kg safe load capacity, electrically adjustable and foldable.
• On demand a fixed picking plate instead of the electrical one, having 3 possible adjustments.
• Elevah 5 picking, the new generation of stock pickers

+ COMPACT

The most compact of its category (footprint cm 70 x 115).

+ HANDY

It turns on itself. Extremely easy to drive.

+ WIDE

Large basket, convenient for all sizes.

+ COMFORTABLE

Practical and safe access thanks to the large platform and side handles.

+ SAFE

CONTROL ACCESS

Automatic door block. Prevents accidental opening.

TILT DEVICE

Prevents lifting on sloping surfaces.

SIGNALS

3 presence detectors that can be integrated with the BLU SPOT accessory.

JOYSTICK

All controls at hand.

SPEED CONTROL

Speed control adjustment.

STANDARD Retractable cable for the charger

OPTIONAL

RADAR SYSTEM

3 anti-collision radar systems can be fitted on the machine.

KEY ACCESS

Basket block at max. 1,95 m platform height.

The machine can work at temperatures between -15° C and +40 °C!!

• Max. working height 5,15 m
• Max capacity 200 kg
• Number of people 1
• Use Internal - External

A Closed machine height 1690 mm

B Min. height from the ground* 289 mm

C Maximum platform height 3150 mm

E Base overall dimensions 700 mm

F 1152 mm

G Cage dimensions 630 mm

H 780 mm

• Machine weight 640 kg
• (With electrical picking platform) 590 kg
• (With removable picking platform)
• Drive wheels dimension Ø 186 x 60 mm
• Swivel wheels dimensions Ø 150 x 40 mm
• PICKING PLATFORM
• I Dimensions 500 mm
• L 680 mm
• Adjustment Electrical
• J Stroke 720 mm
• Min. height from the ground 790 mm
• Maximum height from the ground 4102 mm
• Capacity 100 kg

PERFORMANCE

• Power supply Electrical 24 V
• Batteries 2 Trojan Lead-Acid 12V 105 Ah
• Battery charger 110V – 230V 50/60HZ
• M Maximum climbing ability 15%
• Climbing ability at height 2,5%
• Internal turning radius 0
• External turning radius 2100 mm
• Max. speed (rising – descending) 0,2 m/s
• Maximum speed (with basket on the ground) 4,5 km/h
• N Maximum pressure for wheel at full load** 3,10 kN
• Work cycles (with fresh batteries) *** 100

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

*** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.

• PARACO50 Two Upholstered Covers 50 cm
• REDLIGHTS RED LIGHTS - Pair of red lateral signaling lights
• E5PEPP Components to enlarge the picking tray.
• PCC Current socket on the basket. 24 V/5 A
• SP.TFL 3 extractable protections for picking platform
• PFE.PM Front protection on picking manual's tray
• E5PALLET Unloading system of the machine from truck platform without forklift
• E5 COV Resistant tarpaulin
• CL Wooden Crate for shipping
• E5HANG Clothes hanger tube
• PCCUSB Socket on board basket with USB socket
• E5 PMF Extension for picking platform (removable) + 27 cm (for electrical picking platform only)
• PFE.P Front protection on picking elettric's tray
• E5CPT Carry-All rack to fit on the picking plate, removable, 60 cm height.
• E5 C Belt with winder to block the goods during picking activities
• E5PASP Removable picking platform
• PROPEPP Perimeter protection for picking platform
• E5RADAR1B Rear Anti-collision Radar System for the Chassis
• E5 PO Protection for the operator’s head above the cage. Made of steel, it protects the operator should small objects fall from above
• 51 KEY Machine start-up with code (only for 24 Volt version)
• E5RADAR1 Frontal Anti-collision Radar System for the Chassis
• E5RADAR3 Anti-collision Radar System to the Top (Driver’s Head protection)
• BG Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
• LITIO 4 Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °
• PEVA EVA protection for the Basket
• PEVA2 External protection for the Basket
• E5P.PLE Certification of the machine following Aerial Platform norms. The weight of the machine becomes 788 kg
• E5 AN-PR Crushing protection under the basket
• E5BLMA Directional electric block that can be activated at height, and double steering wheels with anti-crushing protection.
• KEY ACC KEY ACC
• 51 IN Additional control button to operate the machine with both hands
• BSA Door block by lifted basket
• SCP Extra remote control for loading on ramps
• TA 10 Cushioning Pad in EVA
• E5 SCR Loading system for ramps

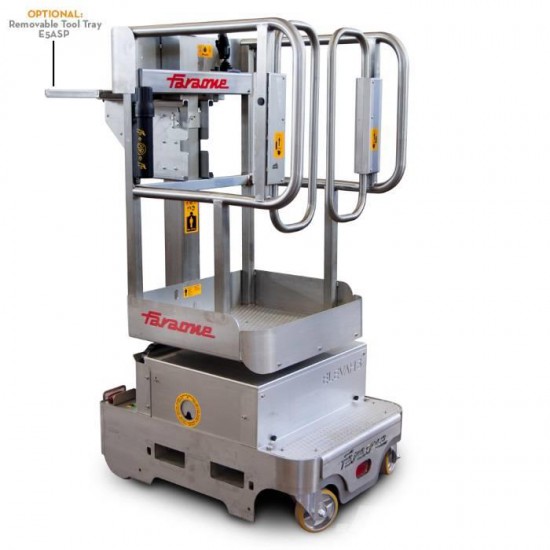

• E5ASP Removable Tool Tray ideal for maintenance activities (cm 30x70). Capacity: 40 Kg
