ORDER PICKER ELEVAH 40 M.P - 4Μ WORKING HEIGHT

Elevah 40 Move Picking

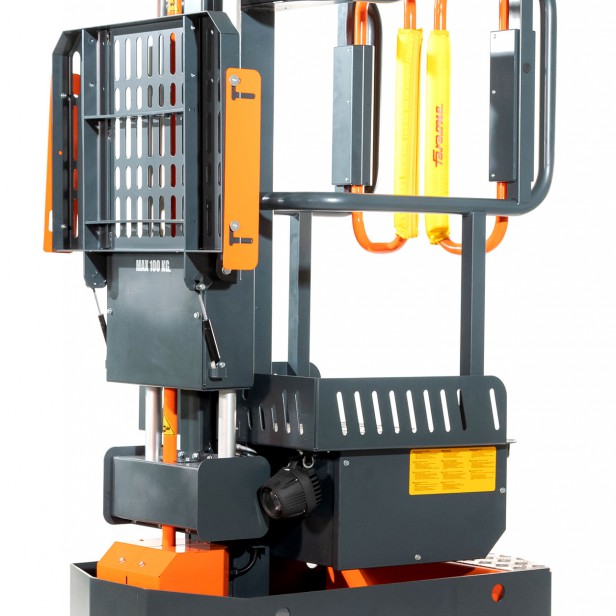

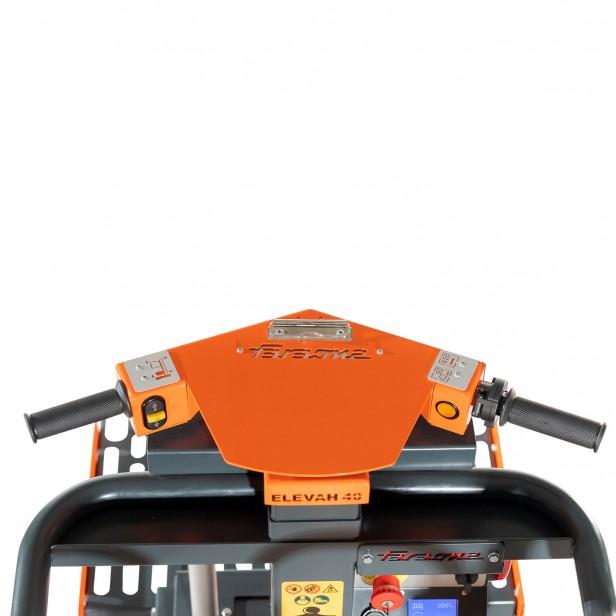

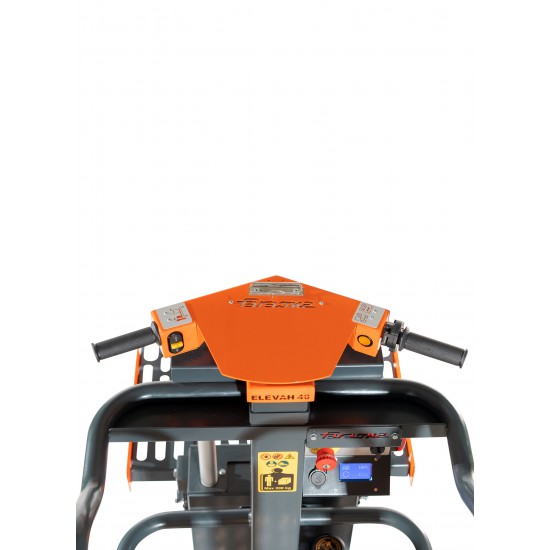

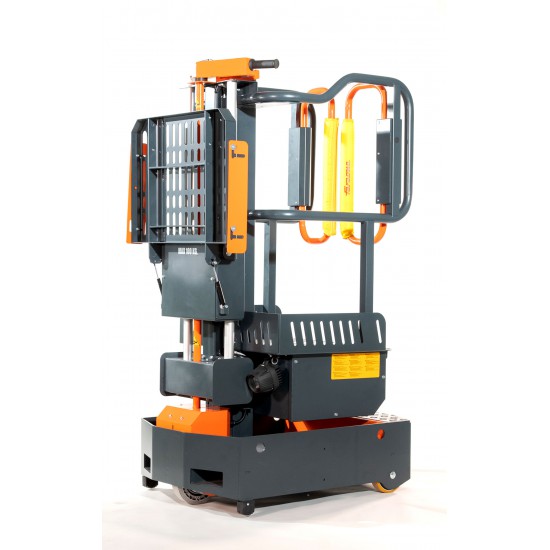

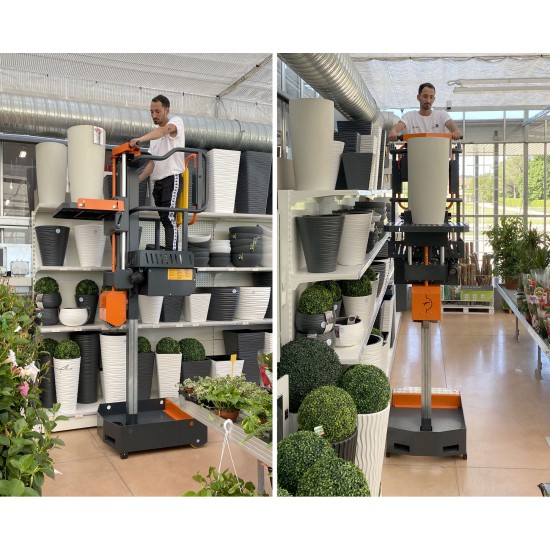

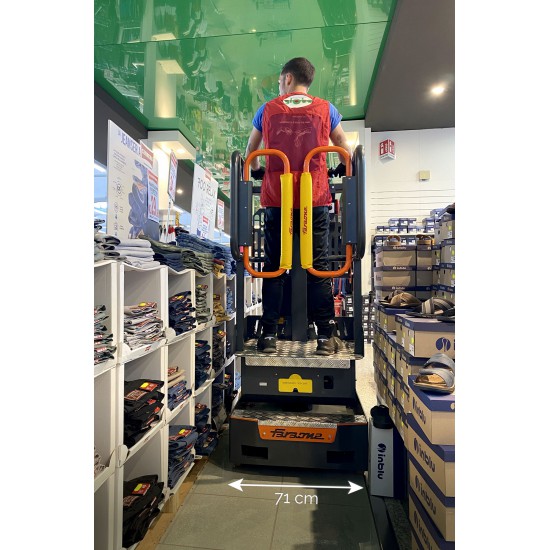

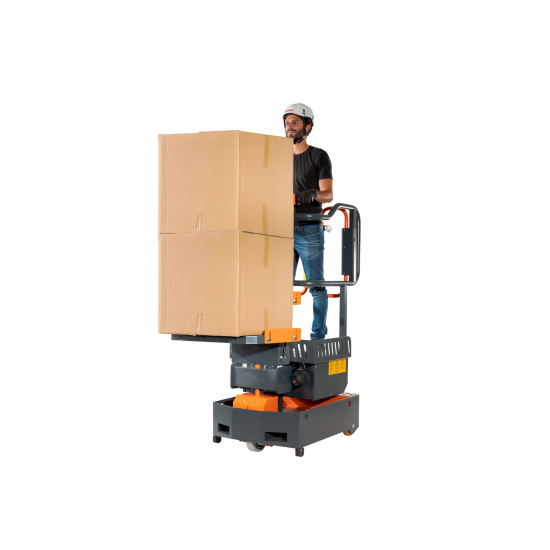

The new Elevah 40 Move Picking, totally renewed in design and performance, is the platform with a maximum working height of 4 meters that allows material picking activities up to 100 kg, optimizing times and doubling the level of safety. Ultra compact (only 71,5x100 cm with the picking tray closed), comfortable and easy to maneuver thanks to the handlebar that allows to move from one area to another without getting out of the basket.

• Available with electrical foldable picking tray (standard) or with manual picking tray (optional).
• Discover all the equipment and accessories to customize your Elevah 40 and fit it to your needs.

ELECTRIC SYSTEM

• Max. working height 4,00 m
• Max capacity 200 kg
• Number of people 1
• Use Internal - External

A Closed machine height 1730 mm

B Minimum platform height 290 mm

C Maximum platform height 1950 mm

D Base overall dimensions 1000 mm

E 715 mm

F 1425 mm

G Cage dimensions 685 mm

H 580 mm

• Machine weight 365 kg
• Driving wheels size Ø 186 x 60 mm
• Idle rear wheels size Ø 150 x 40 mm

PICKING PLATFORM

• I Dimensions 500 mm
• L 680 mm
• Adjustment Electric
• J Stroke 700 mm
• Min. height from the ground 850 mm
• Maximum height from the ground 2875 mm
• Capacity 100 kg

PERFORMANCE

• Power supply 24V
• Batteries 2 AGM 12V 45 Ah
• Battery charger 115V–230V 50/60HZ
• M1 Maximum climbing ability 15%
• M2 Surmountable landing slope 15%
• R1 Internal turning radius 900 mm
• R2 External turning radius 1780 mm
• Max. speed (rising – descending) 0,15 m/s
• Maximum shifting speed 5 km/h
• N Maximum pressure for wheel at full load ** 1,85 kN

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.

In assessing compliance, only those standards whose proposed measures have been implemented were considered and only if a corresponding risk does indeed exist.

MANUAL SYSTEM

• Max. working height 4,00 m
• Max capacity 200 kg
• Number of people 1
• Use Internal - External

A Closed machine height 1730 mm

B Minimum platform height 290 mm

C Maximum platform height 1950 mm

D Base overall dimensions 1360 mm

E 715 mm

G Cage dimensions 685 mm

H 580 mm

• Machine weight 345 kg
• Driving wheels size Ø 186 x 60 mm
• Idle rear wheels size Ø 150 x 40 mm

PICKING PLATFORM

• I Dimensions 500 mm
• L 700 mm
• Adjustment Manual
• J Stroke 980 mm
• Min. height from the ground 670 mm
• Maximum height from the ground 2975 mm
• Capacity 100 kg

PERFORMANCE

• Power supply 24V
• Batteries 2 AGM 12V 45 Ah*
• Battery charger 115V–230V 50/60HZ
• M1 Maximum climbing ability 15%
• M2 Surmountable landing slope 15%
• R1 Internal turning radius 900 mm
• R2 External turning radius 1780 mm
• Max. speed (rising – descending) 0,15 m/s
• Maximum shifting speed 5 km/h
• N Maximum pressure for wheel at full load ** 1,8 kN

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.

In assessing compliance, only those standards whose proposed measures have been implemented were considered and only if a corresponding risk does indeed exist.

Safety equipment

Standard

• Maximum capacity control via relief valve
• Light movement indicator
• Picking platform maximum capacity control with electronics on motor (Only on electrical platform)
• Automatic electronic parking brake
• Horn
• 2-sash access doors to basket with closure control
• Joystick with safety catch against accidental activation
• IP65 protected drive wheels
• Manually activated emergency descent of the basket to base
• Two-hand operation

Optional

• REDLIGHT1 REDLIGHT1- Pair of red lateral signaling lights
• E5 C Belt with winder to block the goods during picking activities
• E40RADAR1 Frontal Anti-collision Radar System for the Chassis
• E40RADAR1B Rear Anti-collision Radar System for the Chassis
• E40RADAR3 Anti-collision Radar System to the Top (Driver’s Head protection)
• E5 PO Protection for the operator’s head above the cage. Made of steel, it protects the operator should small objects fall from above
• BLUESPOT1 Front signalling light
• BLUESPOT1P Pair of signaling lights (front + rear)
• BLUESPOT2 Pair of signaling lights (front + rear)
• E40 AN-PR Crushing protection under the basket
• 51 KEY Machine start-up with code (only for 24 Volt version)
• 40 KEY ACC Configurable machine height block
• IP65 IP65 Certification. Requires AGM batteries
• Ergonomics and functionality equipment

Standard

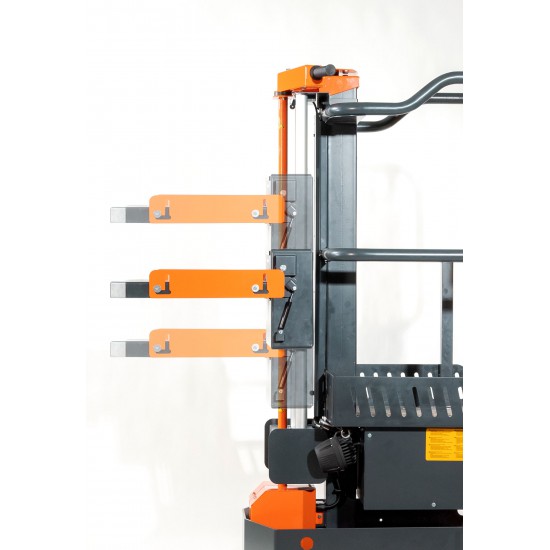

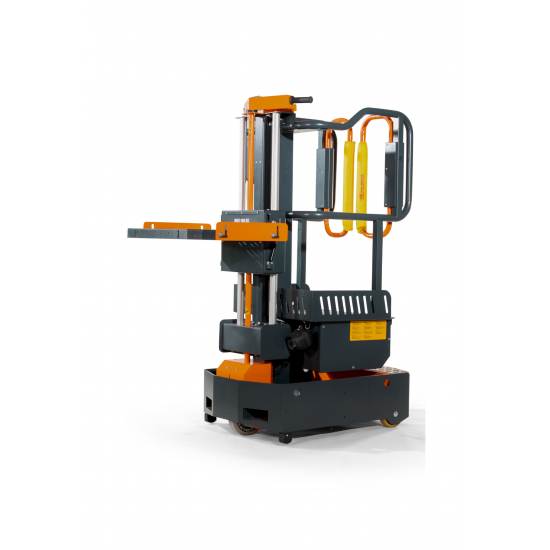

• Fold-away electrical picking platform
• Picking platform side guards

Optional

• PARACO50 Two Upholstered Covers 50 cm

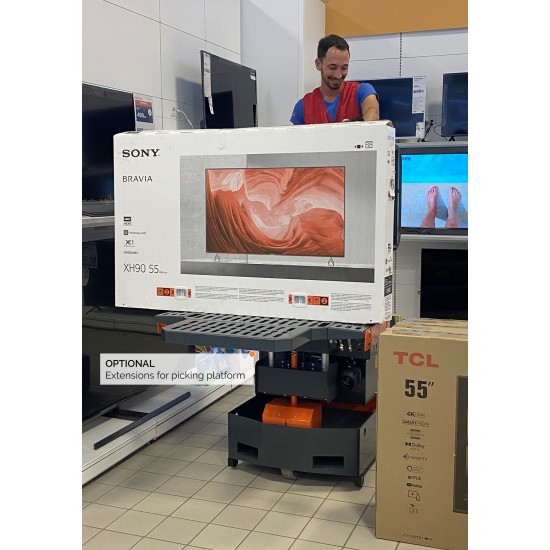

• E5PEPP Components to enlarge the picking tray.
• PCC Current socket on the basket. 24 V/5 A
• SP.TFL 3 extractable protections for picking platform
• PFE.PM Front protection on picking manual's tray
• E40PALLET Unloading system of the machine from truck platform without forklift
• E5RLB ( l.980 ) Side rollers wide 980 mm, to drive through shelf aisles
• E5RLC ( l.1020 ) Side rollers wide 1020 mm, to drive through shelf aisles
• 40COV Resistant tarpaulin
• CL Wooden Crate for shipping
• 40HANG Clothes hanger tube
• PCCUSB Socket on board basket with USB socket
• E40 CR Additional machine up and down control only for loading-unloading on van
• E40PASP Manually adjustable removable picking platform, 100 kg capacity
• E5RLA ( l.880 ) Side rollers wide 880 mm, to drive through shelf aisles
• PFE.P Front protection on picking elettric's tray
• E5CPT Carry-All rack to fit on the picking plate, removable, 60 cm height.
• TA 15 Cushioning Pad in EVA

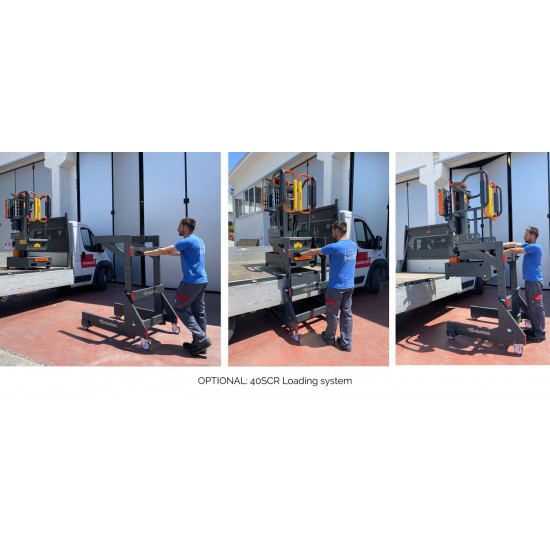

• E40 SCR Loading system for ramps
• E40PEPP Components to enlarge the manual picking tray.
• E40 ZI.VE Elevah 40 galvanised and then painted, it guarantees higher resistance to atmospheric agents
• E40 GREEN Base painted grey (RAL 7016) with green finishing (RAL 6011)
• E40 WHITE Base painted grey (RAL 7016) with white finishing (RAL 1013)
• RAL1 Customised machine finish painting
• RAL2 Custom painting of the machine base

Electronics, power supply and batteries equipment

Standard

• Proportional type self-propulsion
• Proportional basket lifting
• Proportional basket descent
• Lifting block with 80% batteries

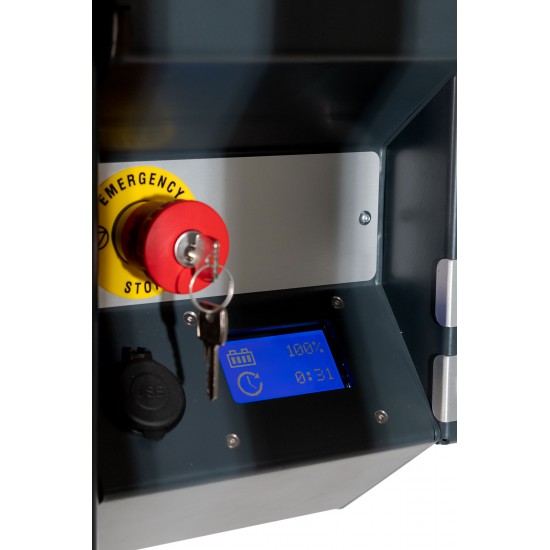

• Hour meter and battery charge indicator on basket
• Multi-voltage and multi-frequency battery charger 6A - 115V - 230V - 50/60Hz.
• High resistance batteries AGM 24V - 50A

Optional

LITIO 2 Lithium Batteries 12.8V 50Ah
