Elevah 5 Move light

Lightweight self-propelled platform with electric elevation that allows you to reach up to 5 m.

• MAX. WORKING HEIGHT: 4,9 m
• WEIGHT: 400 Kg
• COMPACT: only 78 cm wide
• MAX. CAPACITY: 200kg (1 Person)
• MANEUVERABLE: Turning radius = 0
• COMFORTABLE: practical and safe access to the platform DOORS LOCK: it avoids accidental opening of the basket
• SPEED CONTROL: speed limiter with the basket on the ground
• INCLINOMETER: anti-tilt system
• DETECTORS: 3 acoustic and light presence indicators
• AUTOMATIC ELECTRONIC PARKING BRAKE
• EMERGENCY DESCENT

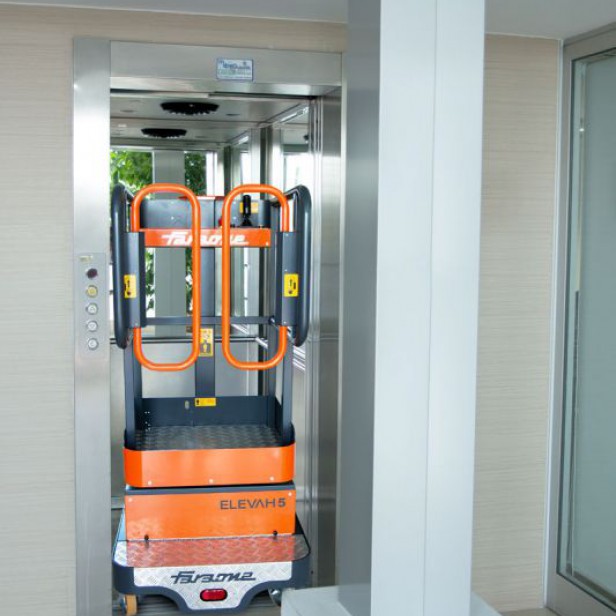

• Elevah 5 Move Light is a low weight (only 400kg) and compact platform that is easy to transport by any means, even in a lift. It is ideal for delicate or low load-bearing floors (mezzanines).

• The Elevah 5 Serie allows you to reach up 5m working height: they are the most compact platforms on the market!

• Elevah 5 Move Light is characterised by its ease of maneuverability: it can be driven with one hand using the convenient joystick, it turns a full 360° thanks to its zero turning radius and it can move even in the narrowest spaces.

• It is self-propelled at height, so it can be moved without having to lower basket, saving time in operations.

• The basket has a comfortable and safe access and it allows the operator to work at height protected on all sides, minimising the risk of injury.

In equipment and accessories section, you fill find the list of standard components and accessories to customize Elevah E5 Move Light and adapt it to your needs.

• FRONT, REAR AND CEILING ANTI-COLLISION RADAR
• BASKET BLOCK: max. at 1,95 m height
• BLUESPOT1 AND BLUESPOT2 (driving directions signalling light)
• ANTI-CRUSHING PROTECTION UNDER THE BASKET

MORE OPTIONAL

• DIFFERENT COLORING OF MACHINE UPON REQUEST.
• DIRECTIONAL LOCKING OF SWIVELS WHEELS
• TRUCK LOADING AND UNLOADING SYSTEM
• Standard charger with retractable cable (Not included if BKIT option is selected.

The machine can work at temperatures between -15° C and +40 °C

• Max. working height 4,9 m
• Max capacity 200 kg
• Number of people 1
• Use Internal

A Closed machine height 1690 mm

B Min. height from the ground* 290 mm

C Maximum platform height 2910 mm

D Base overall dimensions 1110 mm

E 780 mm

F Cage dimensions 685 mm

G 600 mm

• Machine weight 400 kg
• Power supply 24 V
• Batteries 2 Trojan Lead-Acid 12V 105 Ah
• charger 110V – 220V 50/60HZ
• Climbing ability at height 1,7% -1°
• H Maximum climbing ability 15%
• Drive wheels dimension Ø 186 x 60 mm
• Swivel wheels dimensions Ø 150 x 40 mm
• Internal turning radius 0
• Max. speed (rising – descending) 0,2 m/s
• Maximum shifting speed 5,5 Km/h
• Maximum shifting speed at height 1 Km/h
• I Maximum pressure for wheel at full load** 2,1 kN

Work cycles (with fresh batteries) *** 100

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

*** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Compliant with EN280 rule.

Approved for indoor use or outdoor use in the absence of wind.

accessories

• PARACO50 Two Upholstered Covers 50 cm
• REDLIGHT1 REDLIGHT1 - Pair of red lateral signaling lights
• PCC Current socket on the basket. 24 V/5 A
• E5PALLET Unloading system of the machine from truck platform without forklift
• E5 COV Resistant tarpaulin
• CL Wooden Crate for shipping
• PCCUSB Socket on board basket with USB socket
• E5LRLA ( l.960 ) Side rollers wide 960 mm, to drive through shelf aisles
• E5LRLB ( l.1020 ) Side rollers wide 1020 mm, to drive through shelf aisles
• RAL1 Customised machine finish painting
• RAL2 Custom painting of the machine base
• E5RADAR1B Rear Anti-collision Radar System for the Chassis
• E5 PO Protection for the operator’s head above the cage. Made of steel, it protects the operator should small objects fall from above
• BLUESPOT1 Front signalling light
• BLUESPOT1P Pair of signaling lights (front + rear)
• BLUESPOT2 Pair of signaling lights (front + rear)
• 51 KEY Machine start-up with code (only for 24 Volt version)
• E5RADAR1 Frontal Anti-collision Radar System for the Chassis
• E5RADAR3 Anti-collision Radar System to the Top (Driver’s Head protection)
• BG Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
• LITIO 4 Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °
• E5 ZI.VE Elevah 5 ZI.VE
• PEVA2 External protection for the Basket
• E5 AN-PR Crushing protection under the basket
• E5LBLMA Directional electric block that can be activated at height, and double steering wheels with anti-crushing protection.
• KEY ACC KEY ACC
• 51 IN Additional control button to operate the machine with both hands
• IP65 IP65 Certification. Requires AGM batteries
• SCP Extra remote control for loading on ramps
• E5 GREEN E5 GREEN
• E5 WHITE E5 WHITE
•

• TA 10 Cushioning Pad in EVAE5 SCR L Loading system for ramps
• E5ASP Removable Tool Tray ideal for maintenance activities (cm 30x70). Capacity: 40 Kg
