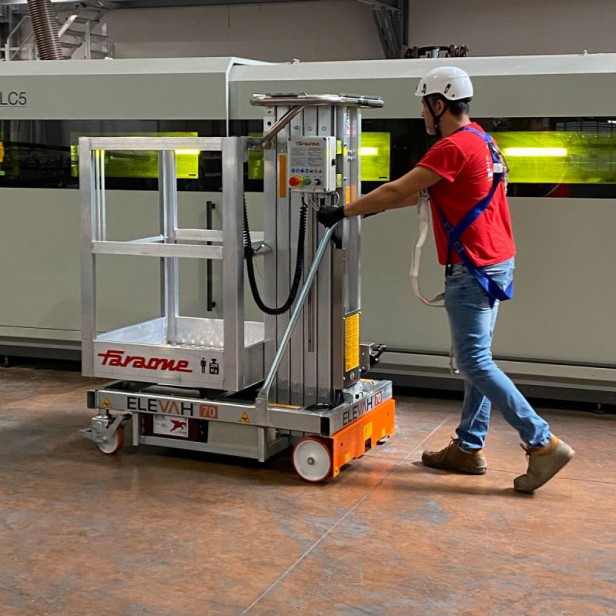

PERSONNEL LIFT ELEVAH 70 - WORKING HEIGHT 7.25M

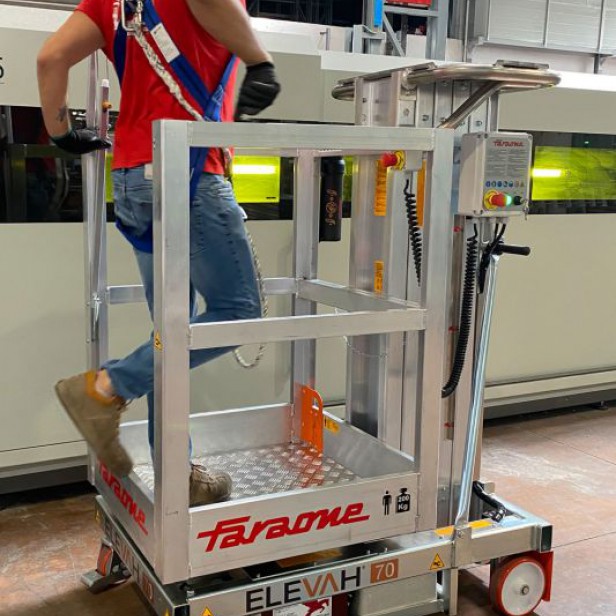

Elevah® 70 is a platform, made entirel of aluminium, which is equipped with a large basket and has a payload capacity of 200 kg.

WORK IN SAFETY

Safety is ensured during any type of work at height (maintenance, inspection, assembly, etc ...).

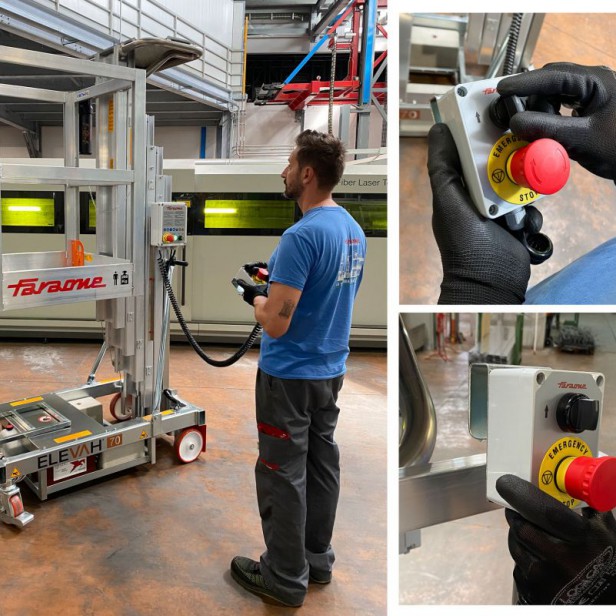

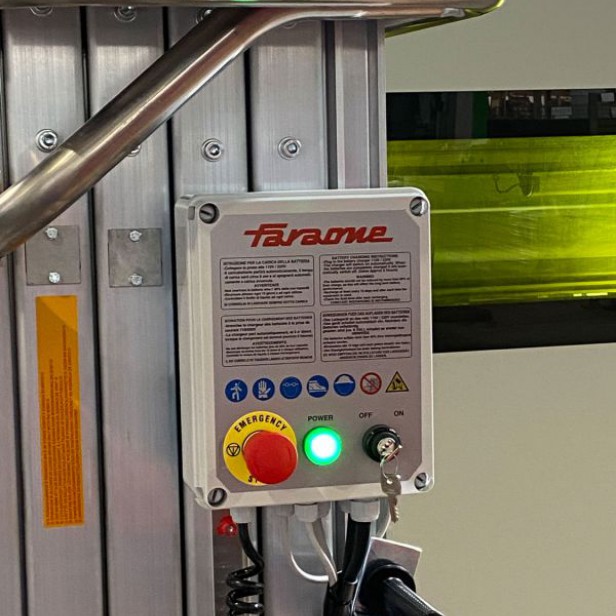

REMOVABLE CONTROL

This allows the platform to also be raised from the ground.

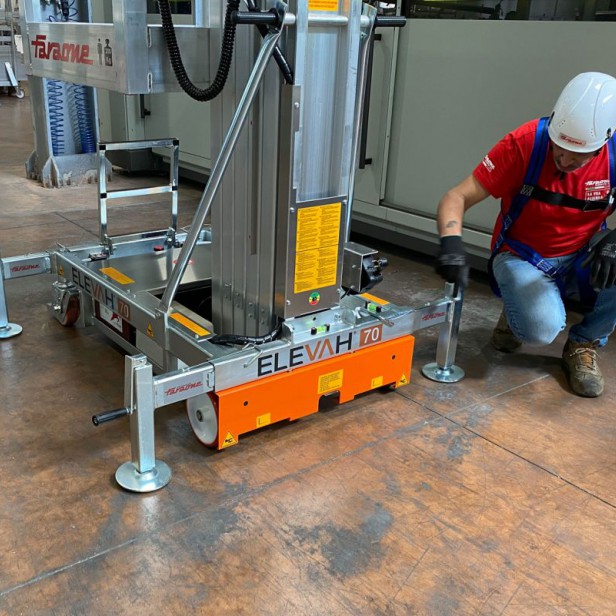

STABILITY AT HEIGHT

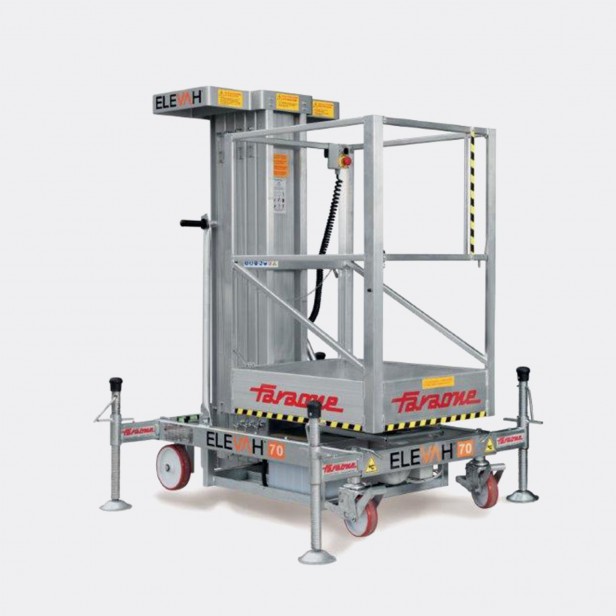

By using stabilizers and positioning the cage 70 cm above ground level, a working height of 7 m can be reached.

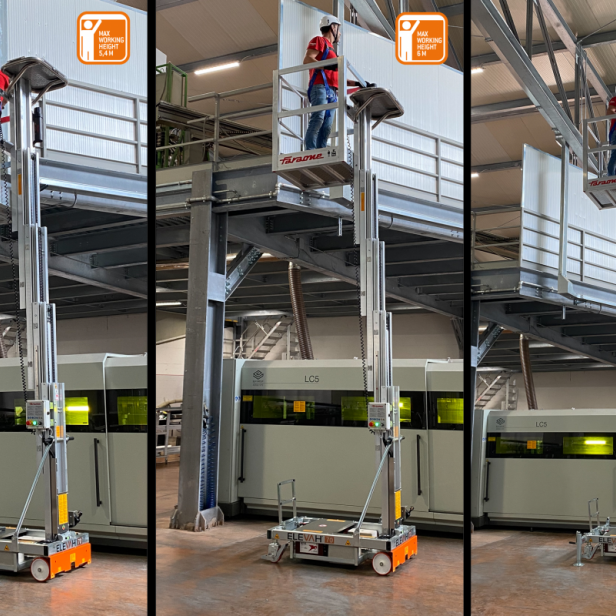

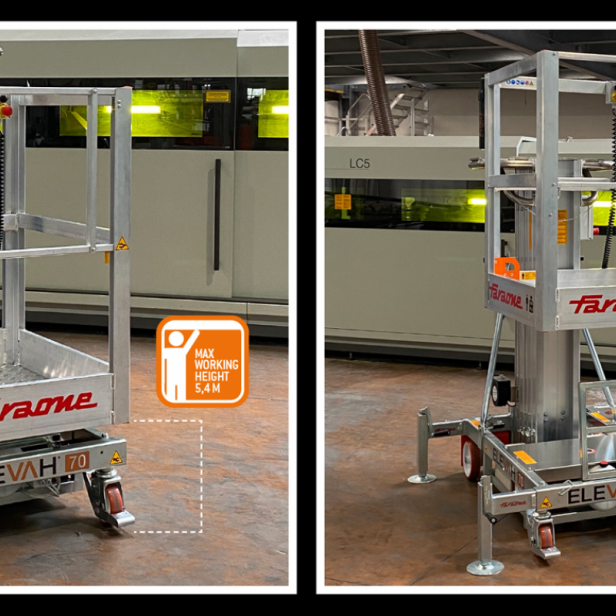

MAXIMUM WORKING HEIGHT:- WITHOUT STABILIZERS 6m- WITH STABILAZERS 7.25m

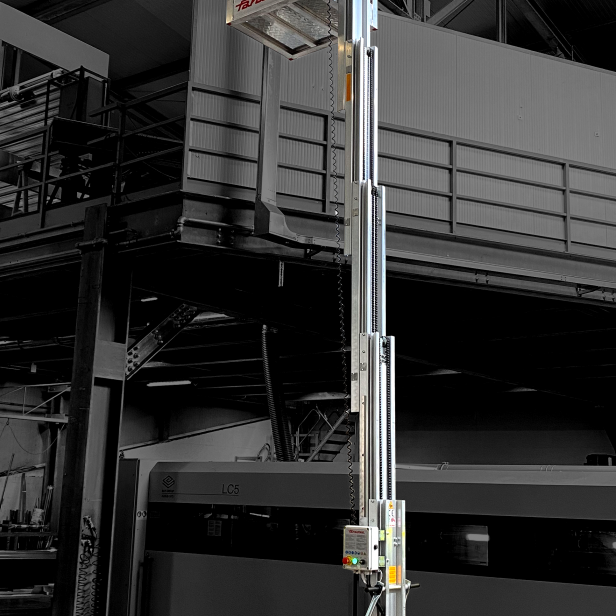

The maximum height reached is 725 cm with the basket set at 525cm above the ground

The machine can work at temperatures between -15° C and +40 °C

                                           Without Stabilizers - With Stabilizers

• Max. working height 6 m (With basket in position 2) 7,25 m (With basket in position 2)
• Max capacity 200 kg
• Number of people 1
• Use Internal

A Closed machine height 1700 mm

B Minimum platform height 380 mm

C Height from the ground to the walking surface 970 mm

D Maximum platform height 4000 mm 5250 mm*

E Base overall dimensions 1320 mm 1380 mm

F 780 mm 1350 mm

G Cage dimensions 780 mm

H 850 mm

I Max. distance from the wall 0 mm 40 mm

J 0 mm 300 mm

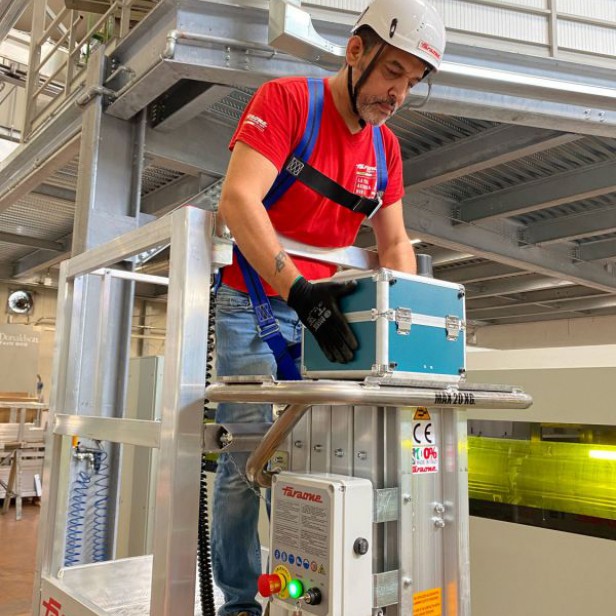

K Fixed picking tray dimensions 760 mm

L 440 mm

• Fixed picking tray capacity 20 kg
• Peso macchina con stabilizzatori, Alimentazione 24V 430 kg
• Machine weight with stabilisers (power supply 220V 50/60Hz) 400 kg
• Power supply 24V N ° 2 Lead Acid Batteries 12V 105 Ah
• 24V power supply - Battery charger 110V - 220V
• Swivel wheels dimensions (fixed) Ø 200 x 50 mm
• Swivel wheels dimensions Ø 150 x 45 mm
• Max. speed (rising) 0,2 m/s
• Max. speed (descending) 0,15 m/s

L Maximum pressure for wheel at full load** 2,0 kN

L Maximum pressure for stabilizer at full load** 2,2 kN

Work cycles (with fresh batteries)*** 200

* Max H. reached with cage at height -C-

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

*** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Compliant with EN280 rule.

Approved for indoor use or outdoor use in the absence of wind.

Elevah, the aerial platform made in Italy
