ELECTRIC LIFTING PERSONEL RONIN LIFT 181KG MAX CAPACITY

RONIN LIFT

THE RONIN LIFT HAS BEEN DESIGNED TO BE THE WORLD’S MOST ACCESSIBLE POWERED ASCENDER. NEVER HAS IT BEEN EASIER TO GET UP AND DOWN.

When we started out on the Ronin journey, we saw powered rope ascender technology had existed. The technology was mainly confined to limited uses and to a small user base. The technology was not able to get broad acceptance and use because it was priced at a level that did not make sense to the industries and individuals it was supposed to serve. We recognized that an access tool that people did not have access too, did not make any sense. Powered ascenders are an amazing technology they solve a common problem all humans have, going up is challenging. The Ronin Lift is the first ascender available that crosses the full spectrum of use. From recreational to military and everything in-between our users are vast, their problems are common. The Ronin Lift supports their needs by, making job the easier to complete, the adventure more enjoyable, and the climbing experience safer for everyone.

RONIN LIFT

PART #: KIT2805-11APWR

World’s most accessible powered ascender in the market today.

Safe working load 400 lbs. (181 kg) and weighs only 24 lbs. (11 kg) with battery.

This powerful tool has revolutionized safety and injury prevention in the workplace, by removing the physical strain and fatigue of climbing. The Ronin Lift battery-powered power ascender is an affordable tool that every at-height worker should have in their tool kit.

Ronin Lift was developed to manage heavy loads in tough environments to help perform the task at hand. Even though it is one of the lightest machines on the market, it’s smooth, fast, and easy to use.

Ronin Lift maintains controlled acceleration through its variable-speed thumbwheel up to the maximum safe working load of 400 lbs. (181 kg).

Ronin Lift versatility allows the use of mechanical advantages up to 3:1, which means loads of up to 1200 lbs. (544 kg) can be accommodated. Both Ronin Lift anchor points are rated at 5,000 lbs. for confident rigging.

RONIN LIFT KIT INCLUDES:

1 Ronin Lift Ascender

1 Wireless Remote

1 Anti-Panic Handle

1 Reverse Function

1 Battery

1 Charger

1 Charger Cable – Type A, B or C

1 Hard Case w/Custom Foam

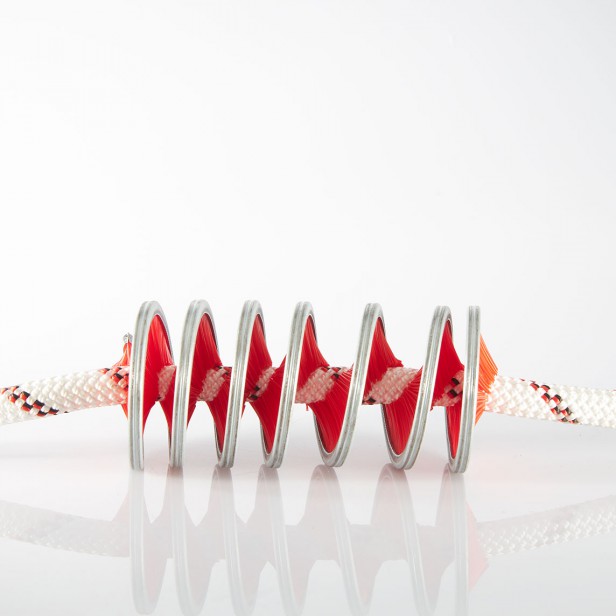

1 Rope Brush

1 Rubber Motor Protector

1 Perfect Burn Tip

FEATURES:

• 400 lbs. (181 kg) Safe Working Load
• Variable Speed Control (0.5 – 1.5 ft./sec)
• Hands-Free Braking System
• Gravity Feed Descent
• Automatic End Feed Rope Loading
  • Safely Secures Rope inside the Lift & Prevents Accidental Detachment
  • Allows for Angled Ascents
• Hot-Swappable Battery
• Lithium Rechargeable Battery
• Water Resistant IP54 Rating
• Operating Temp. -4°F – 120 °F (-20 °C – +49 °C)
• Mechanical Advantage Allowed up to 4:1 ratio to lift, up to 1600 lbs. (725 Kg)
• CE Certified (EC and EU Type Examination Cert)

Category: Battery Powered Rope Ascender

Width (W): 28.82 cm

Depth (D): 39.09 cm

Height (H): 33.90 cm

Weight: Approximately 11 kg

Construction: Aluminum, Stainless Steel and Bronze

Finish: Powder Coat Black

Operating Temperature Range: -20 ºC – +49 ºC

Ingress Protection: IP54

Battery Type: 28 VDC Lithium Ion Rechargeable

Battery Life Ascent: 107 m of rope @ 181.43 kg
Standard Battery:  213 m of rope @ 90.71 kg

Battery Re-Charge Time: Approximately 2 hours

Rope Type: 10-13 mm Aramid or Kernmantle Sheath Static Line Rope

Rope Loading: End Feed

Ascent Speed: Variable (.15 – .45 m/per second)

Descent Method: Gravity Feed with Manual Brake

Descent Speed:  1.06 m/sec. max @ 181 kg

Secondary Safety: Secondary Lock-Out Feature (Hands-Free)

Max Working Load: 181 kg

Product Certifications: CE Certified & ANSI Certified

Reverse Functionality: For Angled Ascents, winching applications, removing rope from the system.
