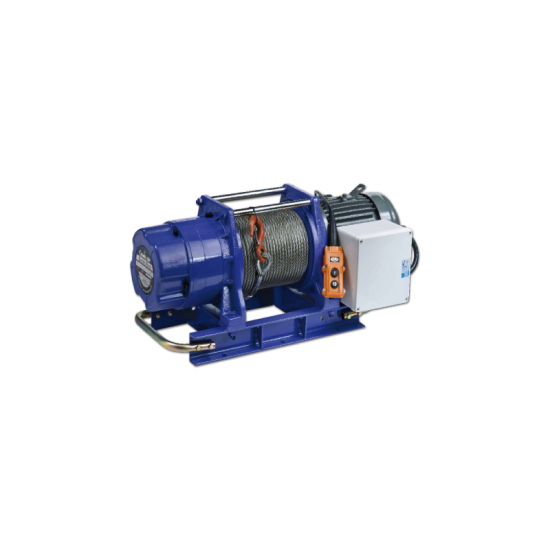

CWG-500TH Wire rope winch 130m * 8mm 500kg 380V

CWG-500TH

• Lightweight and compact design is ideal for easy installation.
• Electromagnetic spring-applied failsafe brake.
• Planetary gears for maximum mechanical efficiency.Cast steel foot mountings.
• Heavy duty high efficiency ball bearings on al running surfaces
• Enclosed drum flanges to prevent rope becoming trapped between drum and support castings
• 24 VAC low voltage control comes as standard
• Rated capacity limiter limits driving power of motor to prevent overloading of the winch

TECHNICAL SPECIFICATIONS

• Lifting capacity: 500 kg at wire rope top layer
• Lifting speed: 19 – 34 m/min
• Power source: 3 phase, 380-440V
• Motor rating IP54: 3.7 kw x 2 poles induction motor
• Maximum lifting height: 127 m
• Braking methods: Electromagnetic spring-applied failsafe brake
• Wire rope: 8 mm x 130 m, 6 x 19, with 2,970 breaking strength

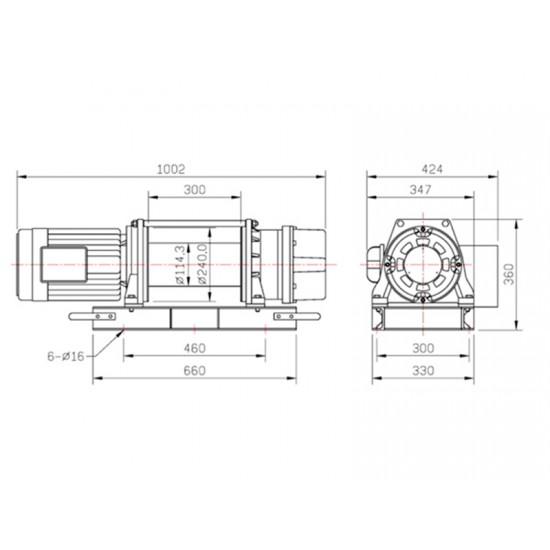

• Drum length: 300 mm
• Drum dia.: 114.3 mm
• Drum flange dia.: 240 mm
• Mounting bolt pattern: 460 mm x 300 mm
• Compliant with EN 14492-1 requirements :

* For hoisting application:

  The working coefficient for the first rope layer on the drum shall be at least 5.

  The D/d ratio to the center of the rope shall be at least 15 for the drum.

  A switch with emergency stop and limit functions are requested.

* For pulling application:

  The working coefficient for the first rope layer on the drum shall be at least 3.

  The D/d ratio to the center of the rope shall be at least 12 for the drum.

  A switch with emergency stop and limit functions are requested

Lifting Capacity, Lifting Speed and Rope Capacity:

Note:

1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%
3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

• The winch is not intended to be used in any manner for the movement or lifting of personnel.
• The rated lifting capacity shown is based on the top rope layer on the drum
• The rope winding on the drum shall remain 5 wraps from the drum


Warranty

• Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
