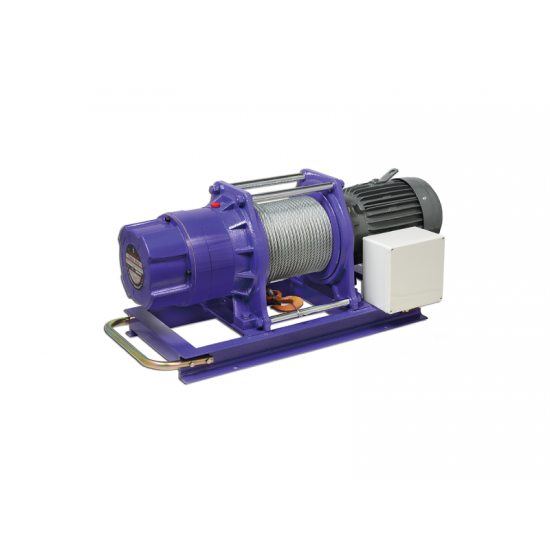

CWG-30375 Wire rope winch 60m * 10mm 900kg 380V

CWG-30375

• Electromagnetic spring-applied failsafe brake
• Heavy duty high efficiency ball bearing on all running surfaces
• Planetary gears for maximum mechanical efficiency
• Cast steel foot mountings
• Fabricated steel drum
• Supplied on steel base plate ready to mount
• Rated capacity limiter limits driving power of the motor to prevent overloading of the winch
• Quiet running
• Low voltage control ass'y comes as standard
• Emergency stop function switch is available upon request.

• Lifting capacity: 900 kg at wire rope top layer
• Lifting speed:
• Option A: 13 – 20.6 m/min
• Option B: 8.5 – 13.5 m/min
• Power source: 3 phase, 380-440V
• Motor rating IP54:
• Option A: 3.8 kw x 4 poles induction motor
• Option B: 2.2 kw x 6 poles induction motor
• Gear ratio: 48:1
• Maximum lifting height: 58 m
• Braking methods: Electromagnetic
• Wire rope: 10 mm x 60 m
• Drum length: 230 mm
• Drum dia.: 127 mm
• Drum flange dia.: 275 mm

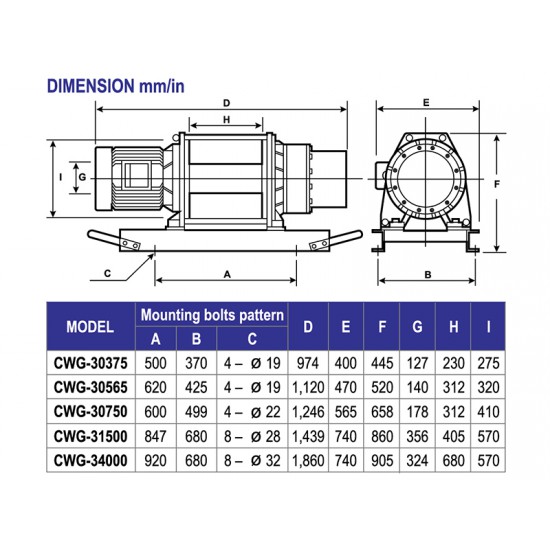

• Mounting bolt pattern: 500 mm x 370 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Lifting Capacity, Lifting Speed and Rope Capacity:

Note:.Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

Note:

1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%
3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

• The winch is not intended to be used in any manner for the movement or lifting of personnel.
• The rated lifting capacity shown is based on the top rope layer on the drum
• The rope winding on the drum shall remain 5 wraps from the drum


Warranty

• Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.  WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.
