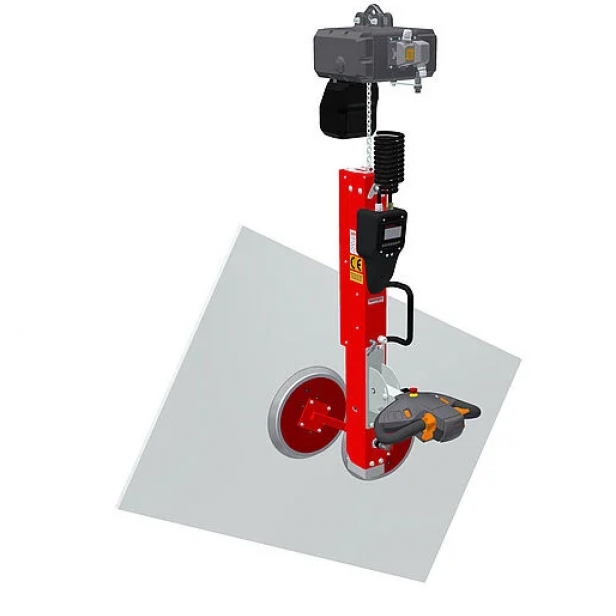

GLASS VACUUM UGL2S WITH CHAIN HOIST FOR LIFTING UP TO 3M 250KG

UniGlass Series

Our standard lifters for glass handling.

Our most frequently used lifting devices for glass handling. The Lifters of our UniGlass series are standard vacuum lifters for flat glass, insulated glass (IG) or windows with special safety measures.

Barbaric glass lifting devices, with patented components, were developed in-house and in addition to particular operating convenience and unique safety standard.

Glass elevating processes require stable, lightweight constructions with little net mass and flexible suction beams for all applications in glass transportation.

Barbaric lifters are a functional unit of lifter and vacuum load sensing.

Fields of application

For glass up to 3.3 x 2.5 m size and 250 kg weight.

Ideal for all processes with vertical processing:

• Vertical edging machines
• Vertical CNC machines
• Vertical washers
• Manipulation on A-frames
• Insulated glass lines
• Window production on vertical presses
• Window assembling and many more

Technical data

• Working load 250 kg
• Lifting speed 0-10 m/min.
• Rotation range 200 °
• Rotation time approx. 4 sec. / 90°
• Suction time approx. 2 sec.
• Vacuum generation Energy saving ejector
• Usable chain length 3 m
• Dead weight approx. 65 kg

Functions & Features

• Narrow body for optimal view on the working area. Lifter with tilting device for glass and windows. For vertical lifting activities with different suction beams.
• Rotation range of 200°, electro-hydraulically
• Incl. safety system to protect against unintentional letting go of the glass due to incorrect operation
• Blow-off feature for quick release of glass
• Continous and smooth movements
• Electric chain hoist with wear-free magnetic brake
• Overload control with oil-lubricated slipping clut
• Emergency supply of the warning horn even in case of power failure
• Pneumatic vacuum generation using highly efficient ejector technology
• Ergonomic operating handle with all operating elements in the control handle
• Suction cups optimized for impression
