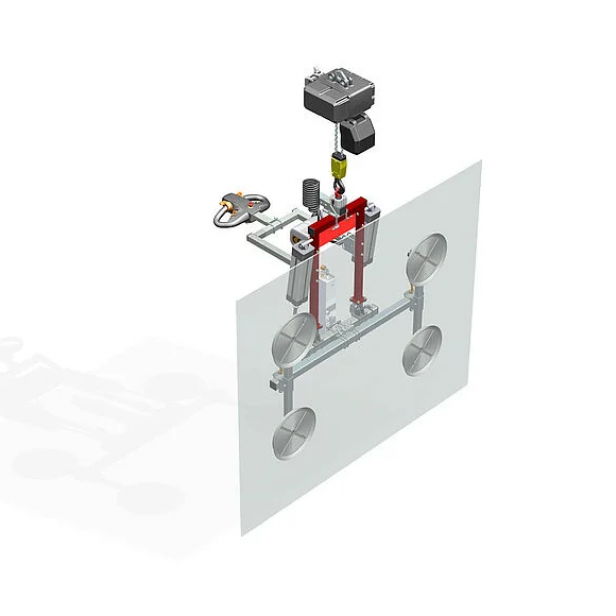

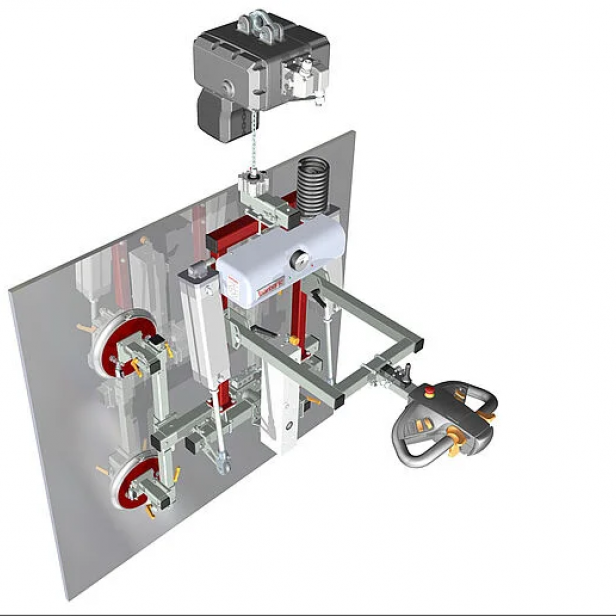

GLASS VACUUM UGL4 WITH CHAIN HOIST FOR LIFTING UP TO 2M 500KG

UniGlass Series

Our standard lifters for glass handling.

Our most frequently used lifting devices for glass handling. The Lifters of our UniGlass series are standard vacuum lifters for flat glass, insulated glass (IG) or windows with special safety measures.

Barbaric glass lifting devices, with patented components, were developed in-house and in addition to particular operating convenience and unique safety standard. Glass elevating processes require stable, lightweight constructions with little net mass and flexible suction beams for all applications in glass transportation. Barbaric lifters are a functional unit of lifter and vacuum load sensing.

Fields of application

For glass up to 3.3 x 2.5 m resp. up to 6 x 3.3 m with optional Y-slip beam and 500 kg weight.

Ideal for a wide range of applications:

• Horizontal and vertical glass processing machines
• Washing, grinding, curing, laminating or cutting in horizontal and vertical position
• Loading and unloading of autoclave cars and many more

Technical data

• Rotation Function 200 °, rotation time approx. 6 sec./90°
• Tilting Function 90 °, tilting time approx. 6 sec./90°
• Suction Cup Size 270 mm or 350 mm
• Chain Hoist 250 kg: 0 - 10 m/min.500 kg: 0 - 5 m/min.continuously variable speed (frequency converter)
• Air Pressure 6 - 8 bar filtered compressed air
• Lifting Height approx. 2 m
• Operating Voltage 230 V / 50 HZ

Functions & Features

Handling device for all lifting activities in the glass, window or door production with different types of the suction beams. Very compact body for an optimal view on the working area.

• Rotating 200°, optional 360° endless
• Tilting function 90° Incl. safety system to protect against unintentional letting go of the glass due to incorrect operation
• Blow-off feature for quick release of glass sheets
• Continous and smooth movements (0 - 10 m/min.)
• Load beam with many variations depending on application and glass thickness
• Chain hoist overload safety feature
• Vacuum generation: pneumatically with safety function
• Special designs up to 2000 kg possible
