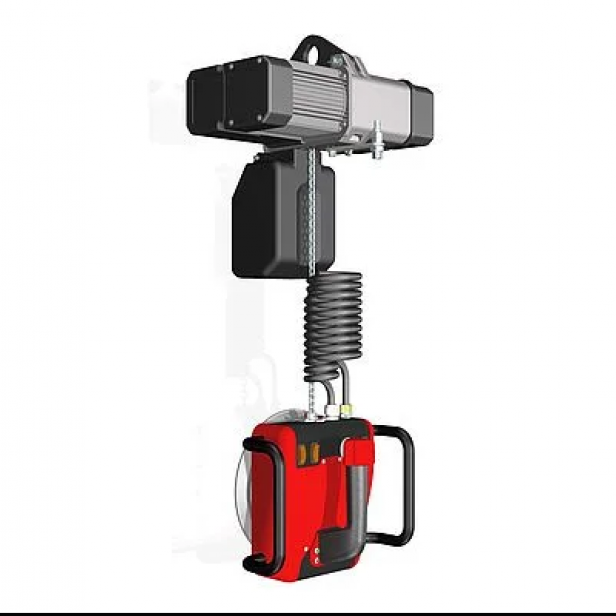

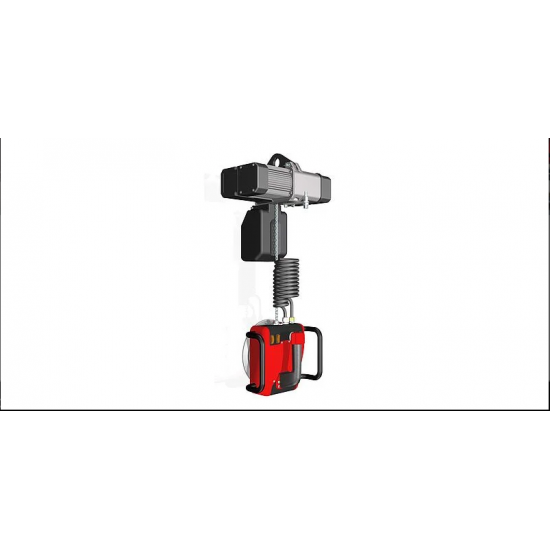

MINI GLASS LIFTER GML1 WITH HOIST FOR LIFTING 150KG

Glass miniLifter GML

fast - compact - safe

Unique handling concept for all fast handling processes of parts with a smooth surface..

features

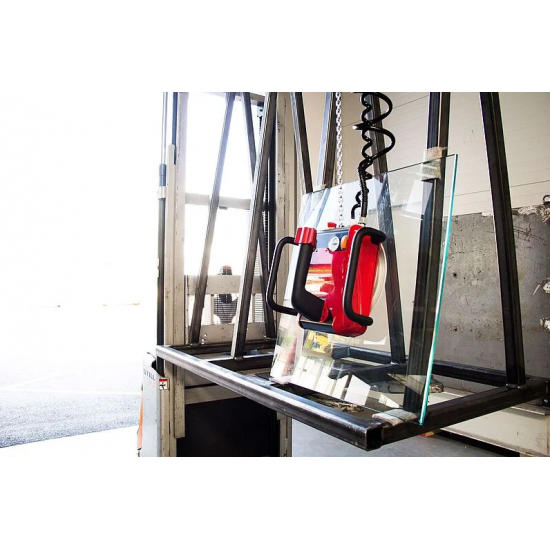

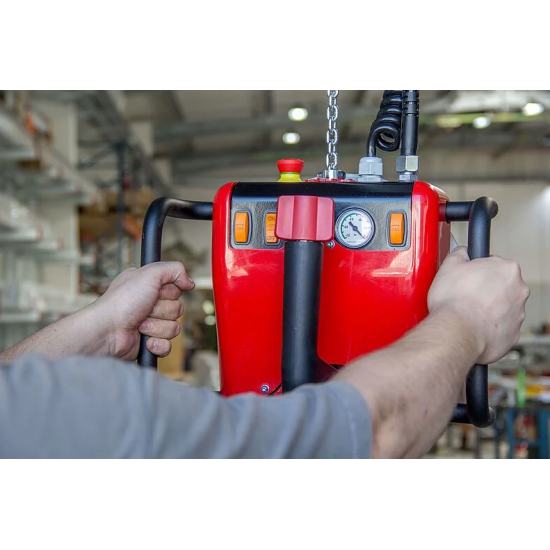

Unique handling concept for quickly moving parts with a smooth surface. Developed for all fast handling processes in the glass and window area. Ergonomic design with handles on both sides of the frame. One-hand operation with stepless hitch control. All operating elements are integrated in the compact base body.

All benefits at a glance

• Easy material handling due to small design and low dead weight
• Replaceable suction cups and imprint-optimized suction cup rubber
• High safety standard with pneumatic vacuum generation and secured release function
• Overload protection on chain hoist

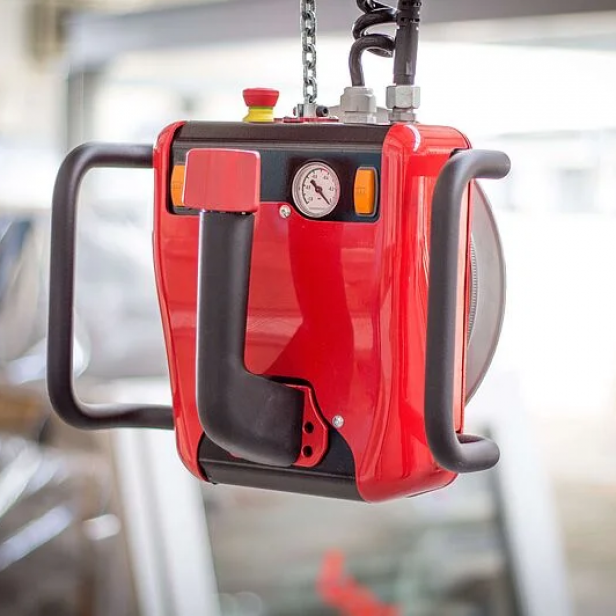

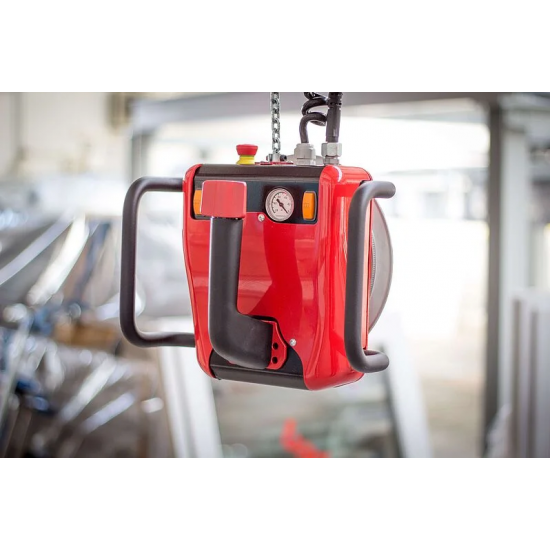

• Safety horn and vacuum gauge integrated in the base body

Technical specifications

• Load capacity: up to 150 kg
• Suction pad: Ø 270 mm or 350 mm
• Vacuum generation: pneumatic with safety function
• Lifting speed: up to 16 m/min. infinitely variable
• Suction time: approx. 2 sec.
• Dissolving time: approx. 1 sec.
• 360° rotation function (endless) with model GML 2
