- VACUUM FOR LIFTING AND MOVING DOOR LEAVES WITH TILT UWL5 FOR 250KG UP TO 2M
Delivery 25-30 wo.days
VACUUM FOR LIFTING AND MOVING DOOR LEAVES WITH TILT UWL5 FOR 250KG UP TO 2M
- Stock: Delivery 25-30 wo.days
- Model: 2056
0,00€
0,00€
(With Tax)

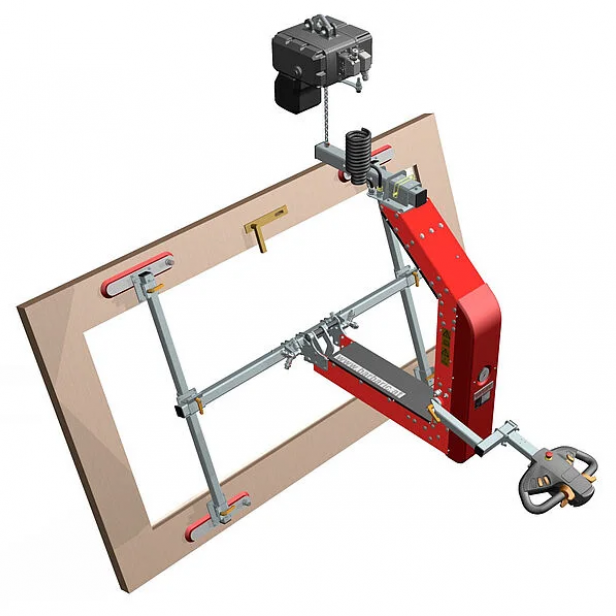

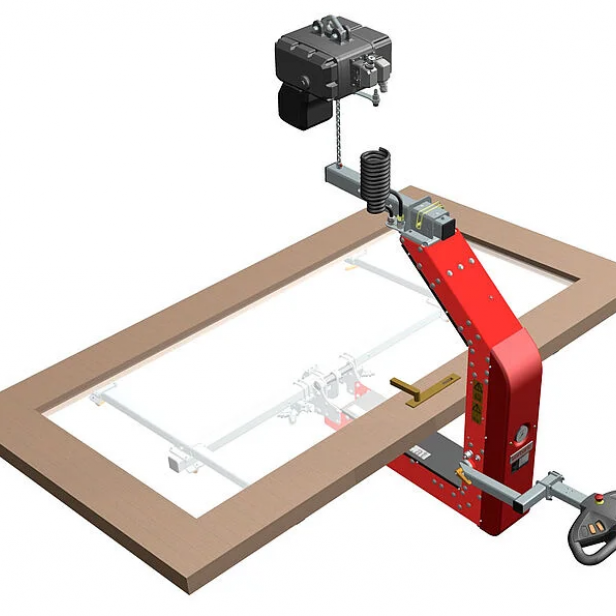

Special lifting device with a narrow body for vertical & horizontal transport of door leaves
Features
- Tilting of the parts by 180° horizontally
- Tilting speed is infinitely variable
- complete with hoist

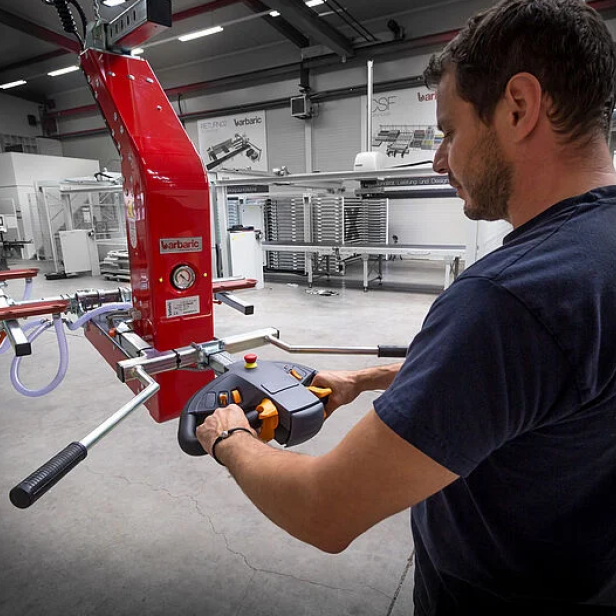

- One-hand operation possible thanks to the special handling handle
- stepless execution of all movements
- Manual focus adjustment
Technical
specifications
- Load capacity: 220 kg / 250 kg
- Tilting time: approx. 6 sec./90°
- Suction plate size: 4x or 6x 377 x 81 mm Special versions on request
- Lifting speed: 0-10 m/min infinitely variable using a frequency converter
- Lifting height: approx. 2.0 m
- Operating voltage: 230 V / 50 Hz
