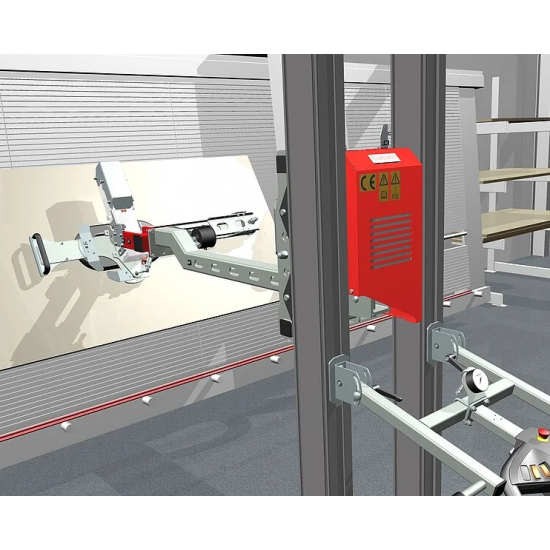

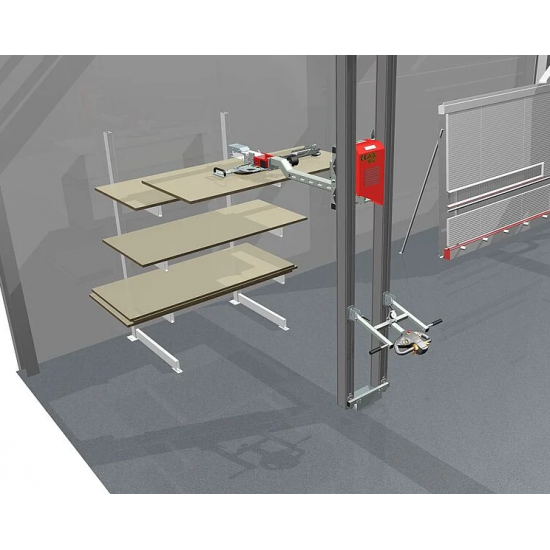

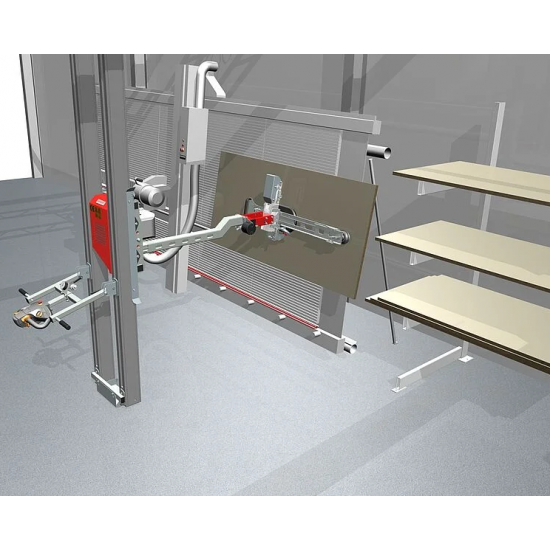

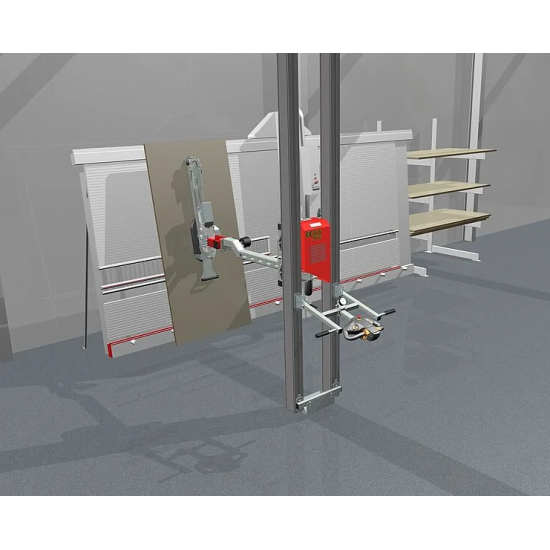

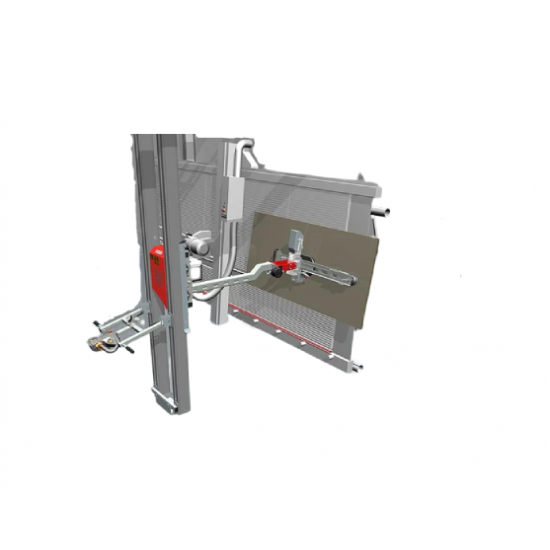

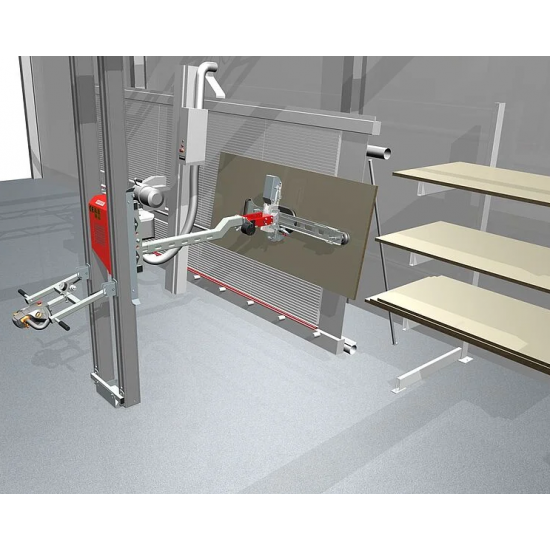

RWL LIFTING SYSTEM WITH VACUUM FOR INSTALLING PANELS ON SHELVES UP TO 100KG

 RWL Rack lifter

 Construction

• Rail system with double bridge
• Lifting mast can be rotated 360°
• lifting carriage guided in lightweight aluminum profiles
• special load traverse for separating the panels
• steering
• All switching elements are housed in our special handling handle. Additional handles are attached to the frame for guiding, rotating and driving the manipulator.

Options

• Load increase to 250 kg
• Vacuum generation: using an ejector (6 bar compressed air required)
• Endless turning of the lifting mast
• Electric drive for bridge travel
• Pneumatic parking brake for slewing ring (6 bar compressed air required)
• Custom truss
• Electrical rotating 90°

 Technical specifications

• Load capacity: max. 100 kg
• Lifting speed: max. 10 m/min (infinitely variable using a frequency converter)
• Vacuum generation: by means of an electric vacuum pump (25 m³/h)
• Operating voltage: 230 VAC / 50 Hz
• Tilting device: 90°
• Rotator: 90° (manual)
• Spans: up to 12 m
• Lifting heights: up to 8 m
• Lifting mast: 360° rotatable, not endless
• Display on the operating handle - camera mounted on the lifting carriage
