UNIVERSAL LIFTING VACUUM CSL TYPE O FOR LIFTING GLASS-METAL SHEETS-PANELS AND STONE UP TO 250KG

ConstructionLifter Type O

Our construction site universal jack with a particual compact design

• Innovative, compact and ergonomic - our universal jack for use on construction sites.
• The ConstructionLifter CSL Type O is our universal device for use on construction sites with a particularly compact design. The innovative suction pad design combines two suction pads in one vacuum unit, thereby enabling special ergonomics and safety. A dual-circuit vacuum pump system ensures the greatest possible safety in mobile use on the construction site. With a maximum load of 250 kg, panels can be moved not only vertically but also horizontally.
• Our suction pads with a particularly elastic and robust sealing lip are suitable for both smooth and structured surfaces. The built-in double battery system not only ensures a long service life of up to 200 vacuuming processes, but also ensures particular safety on construction sites thanks to the redundant design of the batteries.

 Diverse areas of application:

• Handling of smooth and structured surfaces
• Installation of facade elements

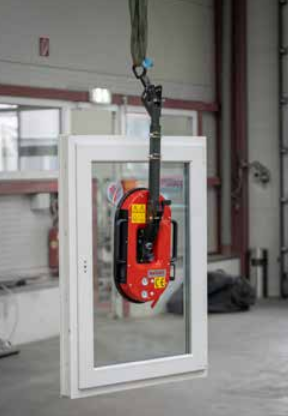

• Installation of glass or stone elements and metal sheets

Product features:

• Max. load: 250 kg
• Innovative suction pad design with two vacuum chambers
• Universally usable sealing lip for structured and smooth surfaces
• Greatest possible safety through dual-circuit technology
• Minimum priming time thanks to the high suction capacity of the pumps
• Special ergonomics: several handles enable easy handling
• Modern dual battery system
• Long operating time with one battery charge

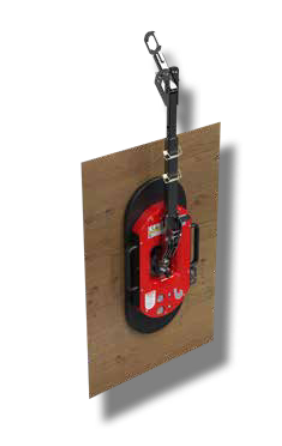

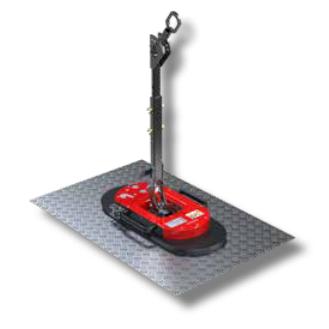

• Horizontal and vertical transport possible (rotating and tilting function)
• Low dead weight due to aluminum body
• Two pressure gauges and acoustic warning signal for pressure monitoring
• Weight: 24kg
• manufactured according to EN 13155 - for use at construction sites.

•  for safety reasons each vacuum circuit is equiped with alarm horn and non return valve.
• to monitor the vacuum pressure level each vacuum circuit is fitted with a vacuum gauge with red/green sector.

• battery status indication trough LED display
• turning possibility 360° in horizontal position, lockable in four different possitions.
• tiltable free - up to 90° and locked in vertical position mechanically
• equiped with a dismantlable telescopic suspension point
• aluminium light-weight components, colour: Cover in RAL 3000, other parts in various shades of grey/black
• slim design with a maximum depth of about 150 mm.
• high duty cycle of approx. 200 initated suction cycles with charged battery
• overall dimensions: about 1140mm x 400mm (with retracted telescopic arm)
• dimension of the suction plate: about 735mm x 320mm

• charging voltage: 230 V / 50 Hz
• dead weight of about: 24 kg
• lifting capacity: 250 kg (setpoint at defined nominal conditions @ 280m ASL tested in Linz -Austria
• (use of the lifting device above 1000m sea level, must be announced when ordered,
• special adjustments and values according to the local circumstances needs to be considered)
