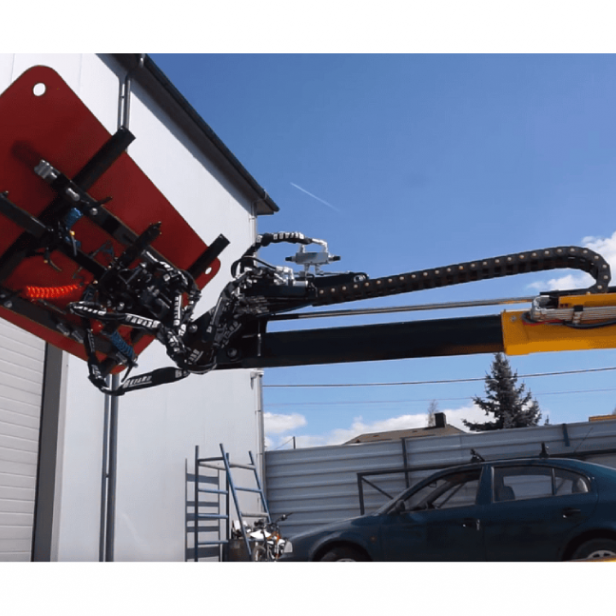

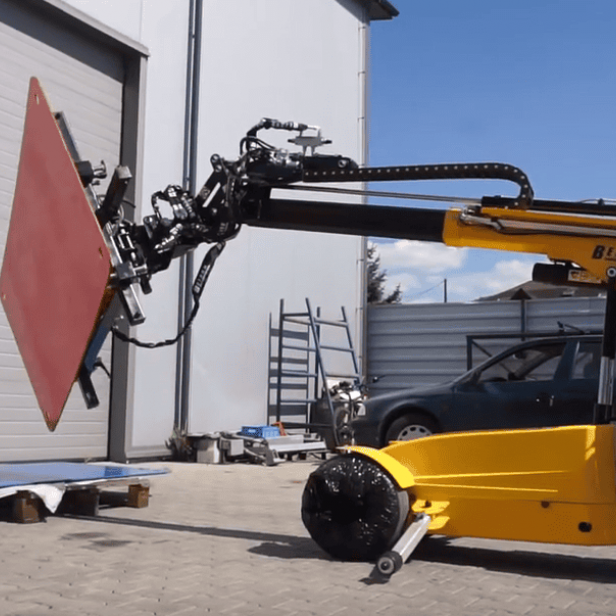

PANEL LIFTING ROBOT XC400 - 400KG -3,9M

BEFARD XC 400

One hydraulic extension. Reach up to 3.90 m. Hoist capacity up to 400 kg.

• BEFARD XC series assembly robots are irreplaceable devices for mounting and transporting windows, glass and other flat surfaces. BEFARD battery, electric and hydraulic robots are ideal for both outdoor (e.g. in front of buildings) and indoor use.
• BEFARD XC robots, regardless of the variant, have the option of suction cup frame lateral movement by 100 mm, such a solution enables the operation of the lateral movement hydraulic cylinder for precise placement of the window in the window opening. The spacing of suction cups can also be increased, for obtaining a larger or smaller area depending on the needs and the size of the glass to be transported.

Extra equipment:

• Suction cups with adjustable distance to frame
• Twin wheels at the front
• Hydraulic/electric swivel – manual swivel as standard option
• Hydraulic/electric lateral tilting – manual tilting as standard option
• Radio control - in standard
• Suction cup covers

*Weight of the machine: 948kg

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

* All BEFARD devices are covered by a 12-month warranty.
