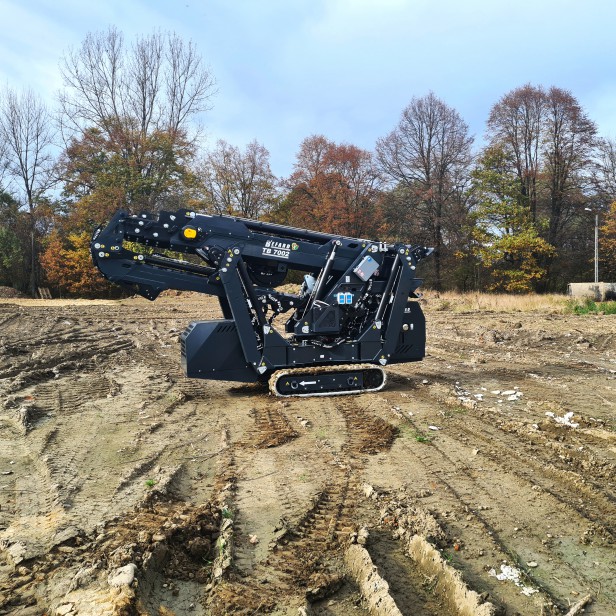

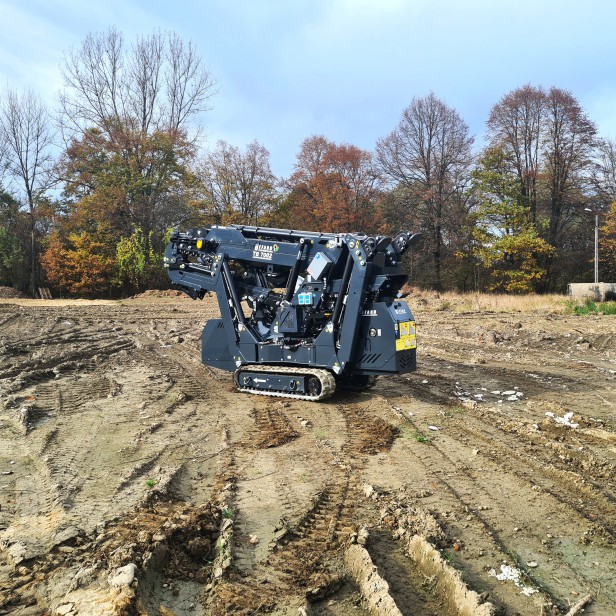

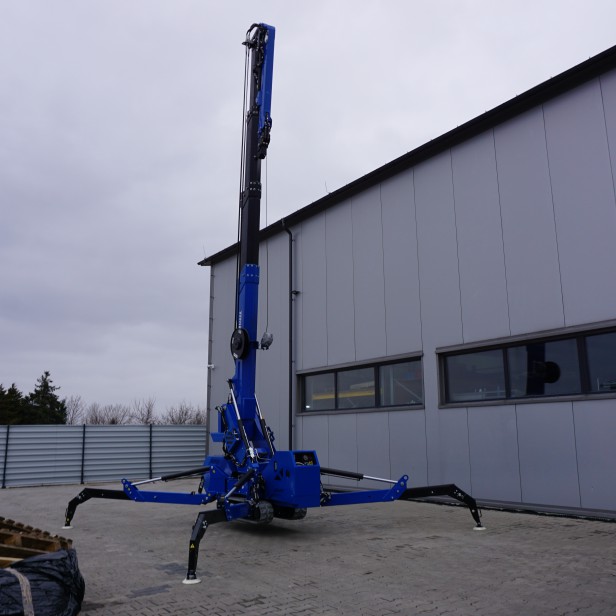

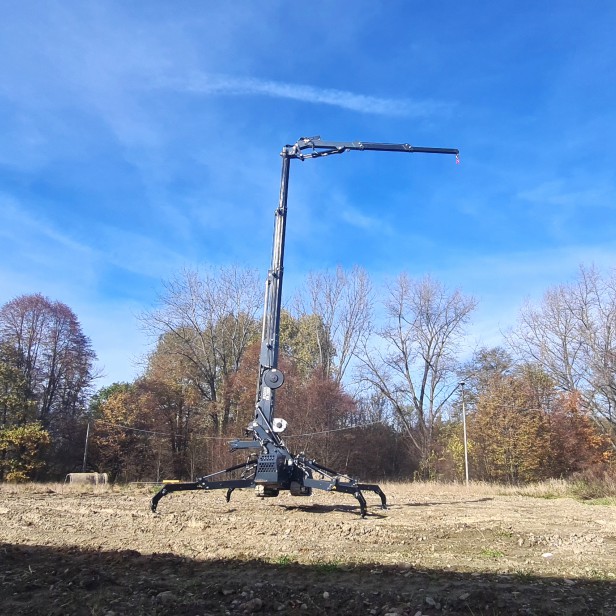

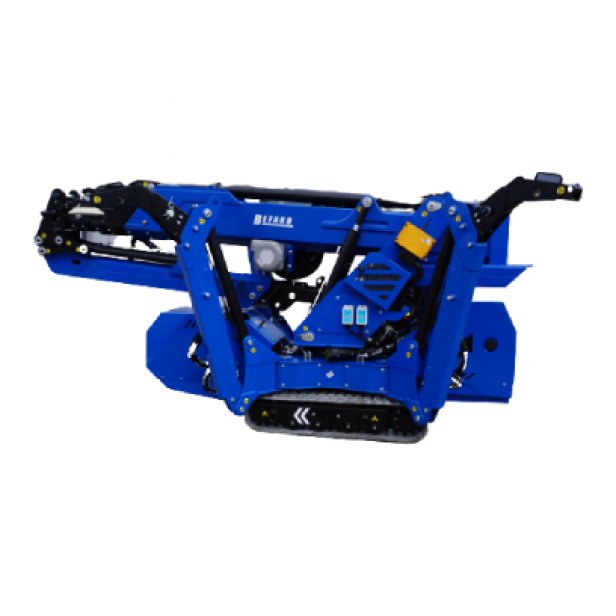

MINI CRAWLER CRANE TB7002 - 2500KG UP TO 17.3M

BEFARD TB 7002 mini crane

Mini cranes on tracked chassis for indoor and outdoor use Maximum hoist capacity: 2500 kg.

•  Mini crane steered by remote controle also known as mini crawler crane, mobile crane, window installation crane and mini spider crane is an excellent solution for window installation. The BEFARD TB7002 mini crane is distinguished by the greatest reach in its weight category and remarkable precision of work. The compact design allows you to transport a trailer with a GVM of 3.5t.
• The BEFARD TB7002 spider-type mini crane for window installation has a lifting capacity of up to 2500 kg, and the range of this mini-crane is almost 18 m vertically.
• The standard version of the BEFARD TB7002 mini crane is equipped with a Fly Jib and a hydraulic winch, so that no window installation is a challenge.

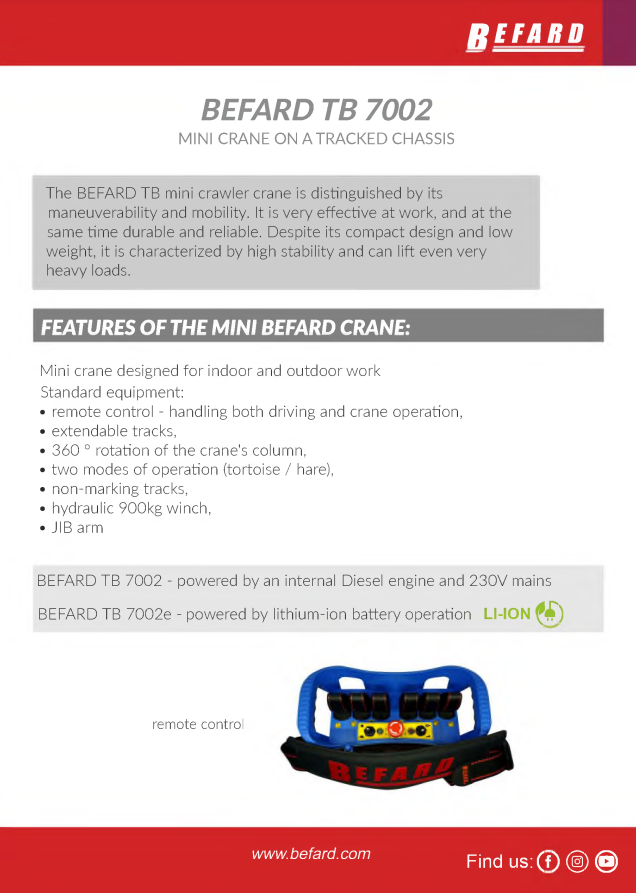

BEFARD TB7002 mini crane is available in two versions:

• BEFARD TB 7002 - diesel-electric power supply (diesel engine + 230V power supply)
• BEFARD TB 7002E - lithium-ion battery operation

The unit can be retrofitted with any XP and XR series vacuum suction cup and a hydraulic winch.

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty.

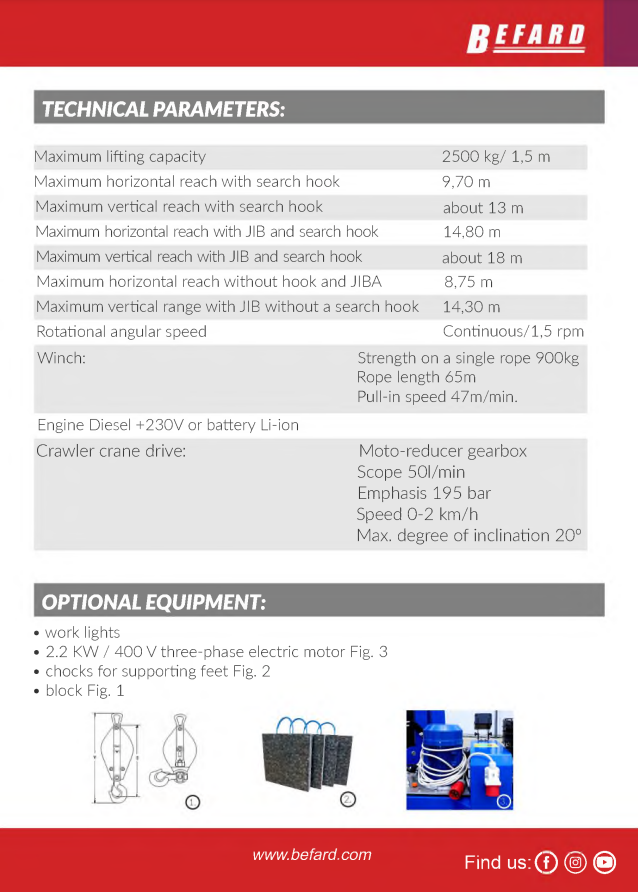

Specification:

                BEFARD TB 7002

• Radio controlled               driving, operation and foot deployment
• Dual power supply          fuel and electric

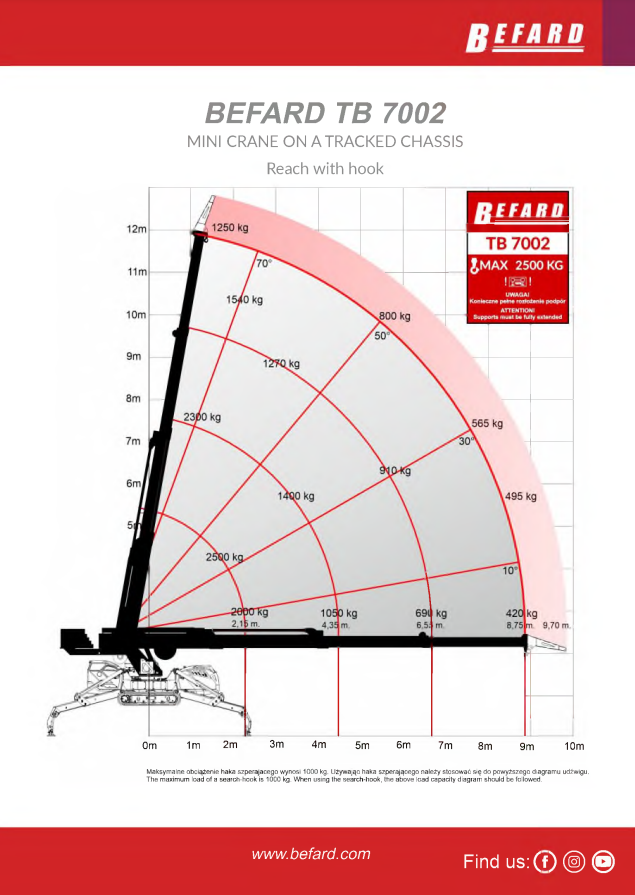

• Maximum hoist capacity (as shown in the diagram)          2500 kg
• Anti-overload system    yes
• Hydraulic extensions      4x hydraulic 2x hydraulic (JIB)
• Maximum horizontal outreach   8,75 m
• Maximum horizontal outreach (JIB)         14,3 m
• Maximum vertical outreach above           11,9 m

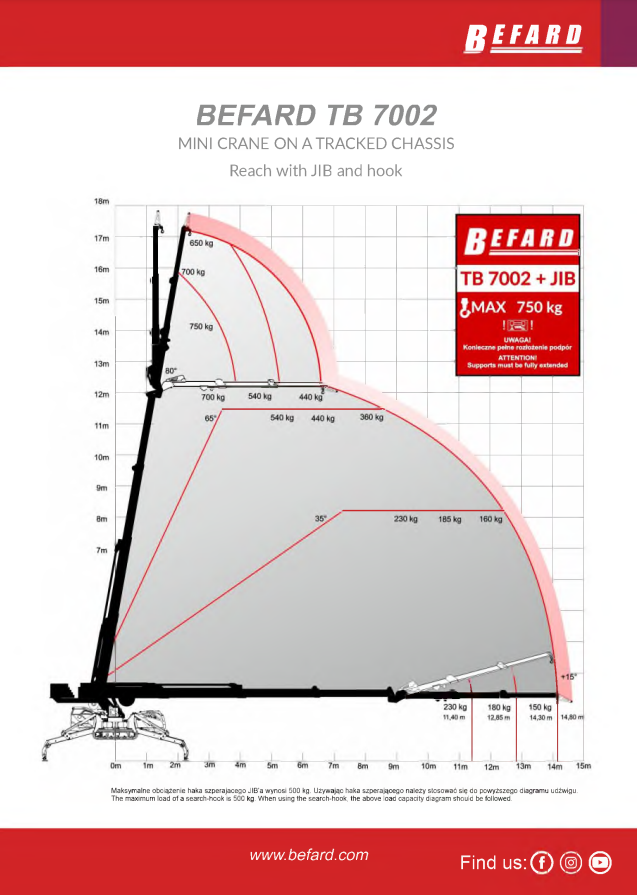

• Maximum vertical outreach above (JIB) 17,3 m
• Active boom      15°
• Supports              four manually unfolded feet with hydraulic deployment

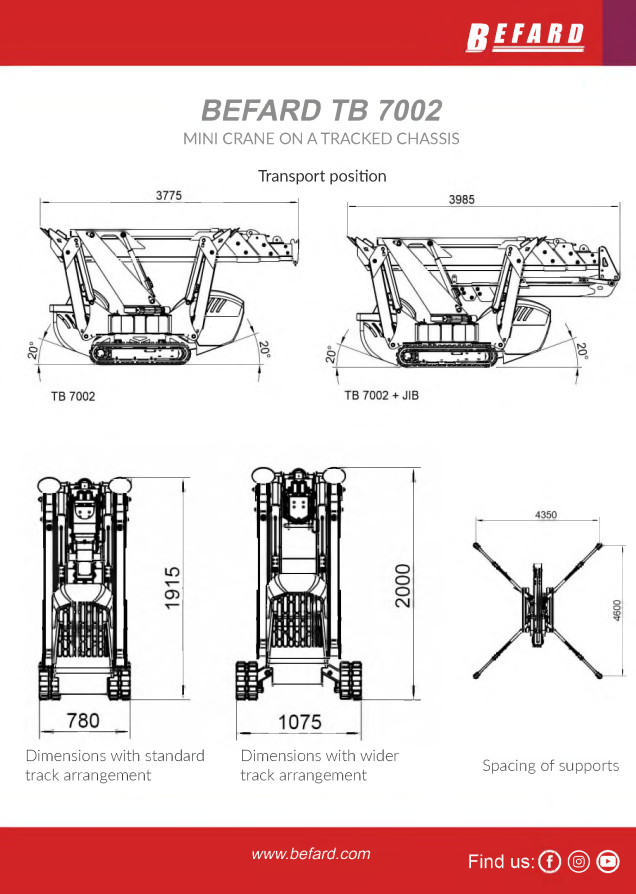

• Height   185 cm
• Width    78 cm
• Weight standard crane - about 2390 kg
• jib - about 230kg
• 230V power supply - about 50 kg
• 400V power supply - about 60kg
• footrests - about 18 kg
• winch - about 100 kg
