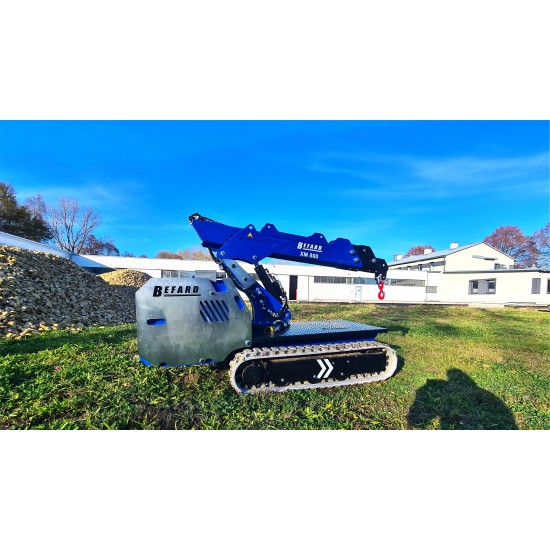

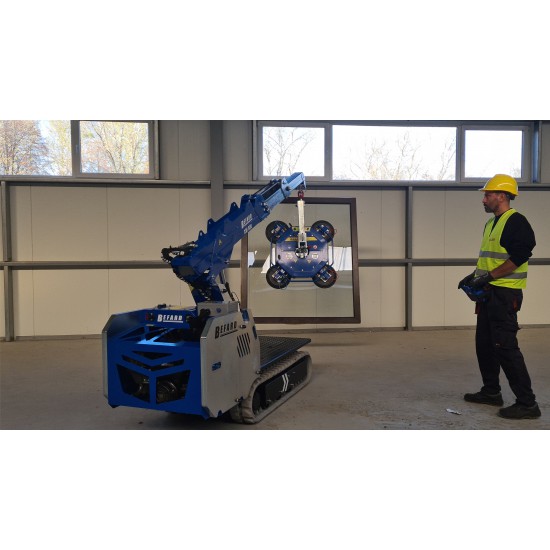

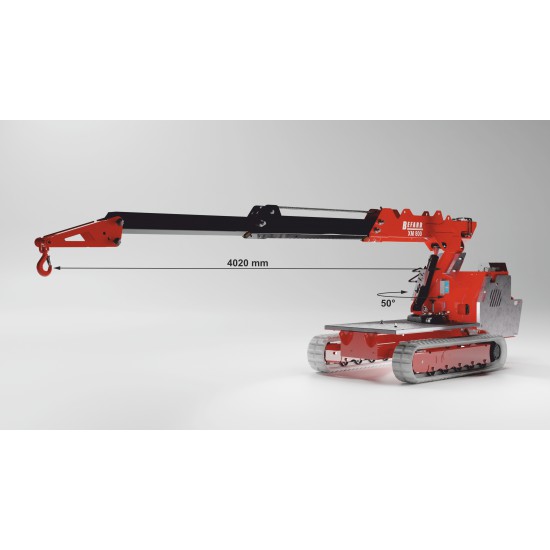

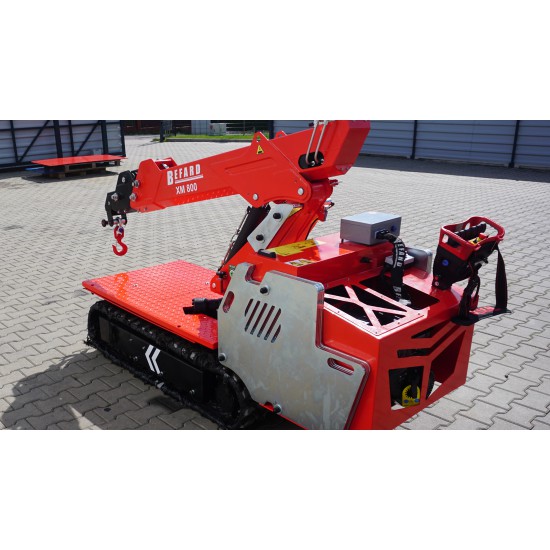

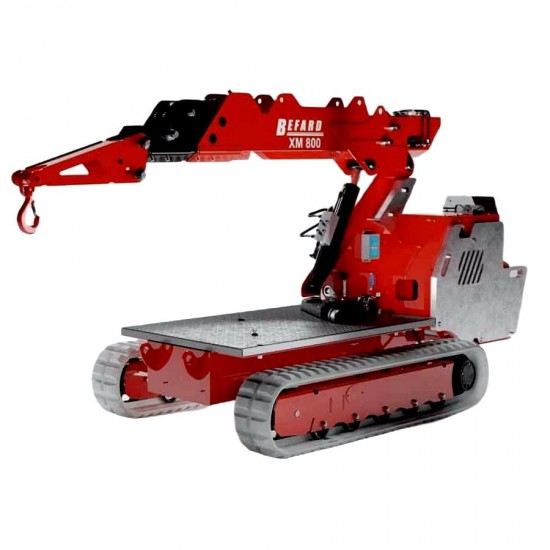

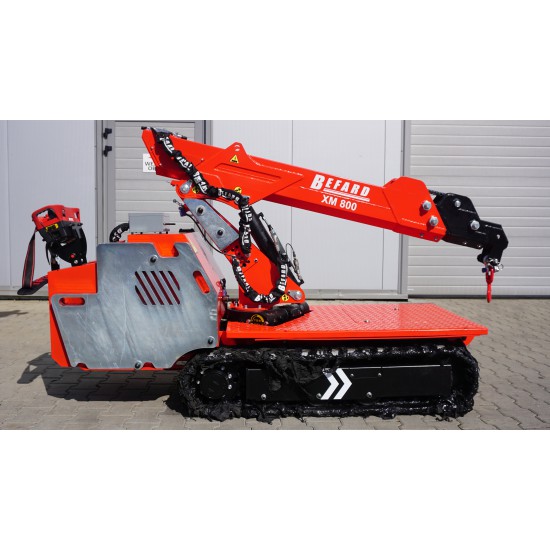

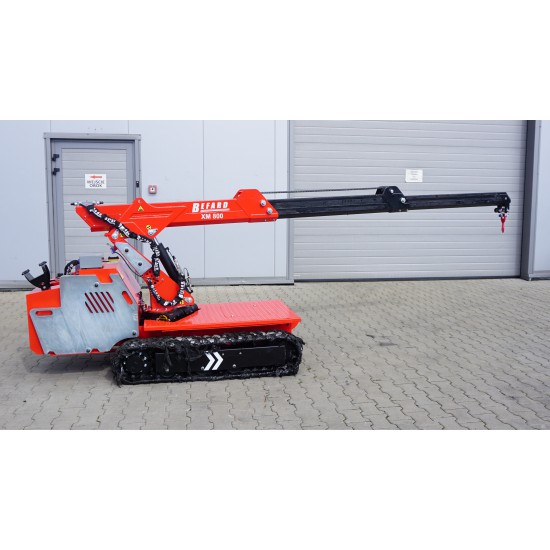

MINI CRAWLER CRANE XM800 - 800KG UP TO 6.17M

BEFARD XM 800

Mini cranes on tracked chassis for indoor and outdoor use Maximum hoist capacity: 800 kg.

• PICK and CARRY tracked mini crane with column rotation function BEFARD XM 800 radio-controlled with non-marking tracks that allow you to work indoors and outdoors, e.g. in production halls.
• The use of a tracked chassis enables work in difficult construction conditions.
•  The unit can be retrofitted with any XP and XR series vacuum suction cup, hydraulic winch, search hook and LED lamp.

 The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU.

Specification:

                BEFARD XM 800

• Radio control     both driving and working of crane including start-stop engine
• Power supply    fuel, gasoline or lithium-ion batteries (optional also on-grid 230V/110V)
• Maximum hoist capacity (as shown in the diagram)          800 kg
• Anti-overload system    yes
• Hydraulic extensions      2
• Maximum vertical outreach above
• optional equipment        6,17 m
• Maximum vertical outreach above           4,6 m
• Maximum horizontal outreach
• optional equipment        5,0 m
• Maximum horizontal outreach   3,5 m
• Height in the transport position 145 cm
• Width of device                78 cm
• Tracked chassis non-marking, extendable chassis (78-110 cm)
• Rotating column               rotation left and right 25° (total 50°)
