- LIGHTING TOWER WITH POWER GENERATOR & MANUAL LIFTING SYSTEM LUX M12 UP TO 9M - ILLUMINATED AREA 4200 SQM
- Stock: Delivery 25-30 wo.days
- Model: 2148

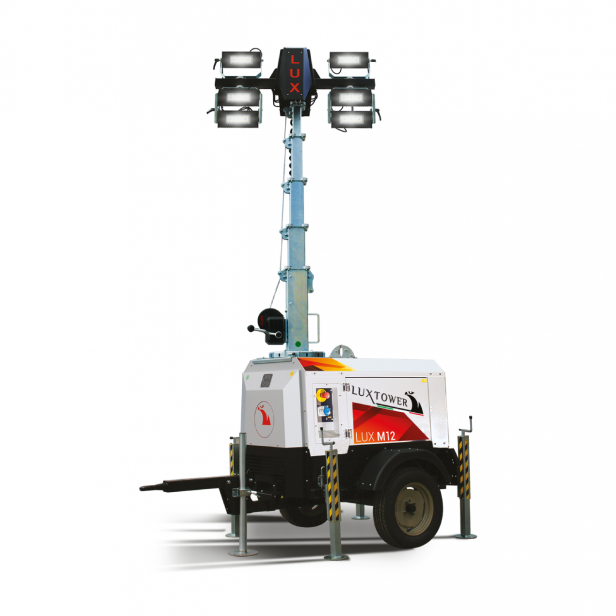

LUX M12
LUX M12 is one of the brighter results which is part of a development path distinguished by the application of the innovative LED technology.The LED lighting towers are ideal for the rental business, standing out for low consumption, compactness, sturdiness and easy to use.
- The lighting tower has an integrated generator, galvanized vertical telescopic mast with manual lifting system, and equipped with Six 160 W Multi Led floodlights.
- Multi Led floodlight are made in Europe by a leading company in the lighting sector.
160 W | 23.763 lm
Advantages
& applications
LUX M12 is a strong and long-lasting machine, reliable over time.
Each Luxtower lighting tower undergoes a detailed and special manufacturing which makes it unique on the market:
- The metal body is first galvanized then powder coated by polyester to avoid corrosion.
- The vertical telescopic mast is galvanized and equipped with anti-shock plastic pads
- The metal body is equipped with a double asymmetrical air vents to prevent annoying jams
- Damping cage on Linz Alumen alternator to contain voltage surges
- Both control panels and projectors have plug & play system for an easier replacement in case of damage.
- Muffler is placed into an isolated metal case to prevent undue overheating
LUX M12 is
suitable for outdoor applications and for wide areas:
- Construction sites
- Rental companies
- Extraction sites
- Events
THE LED BENEFIT
The application of LED technology on lighting towers is oriented towards reducing fuel consumption and CO2 emissions, improving at the same time the performance and life of the lamps.
Unlike metal halide lamps, LED headlights provide:
- Instant lighting without waiting for overheating
- Up to 60% fuel savings compared to the metal halide or halogen
- Lamps life five times longer compared traditional ones.
- Up to 40.000 working hours
- Low environmental impact with about 50% CO2 reductions
- Less spare parts replacement
- No ballast, no ignitors, floodlight glass, no lamps

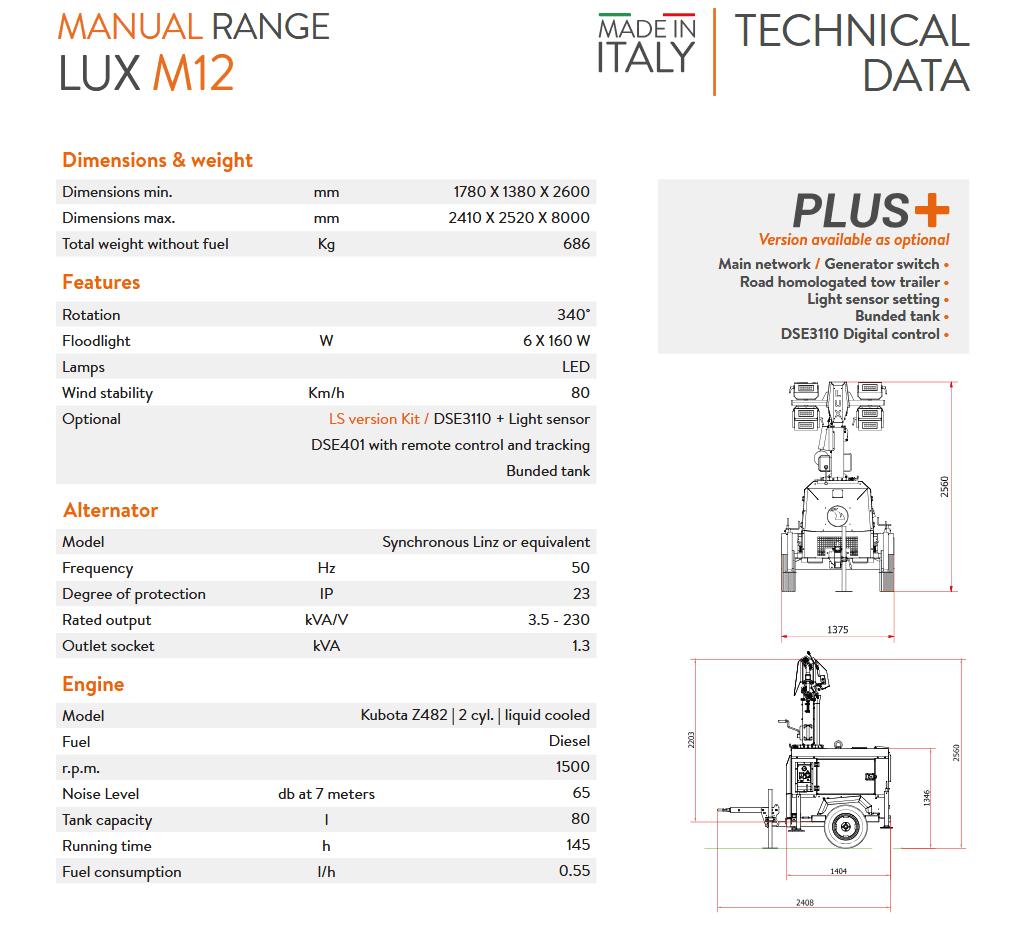

Features
- Dimensions min. 2390 X 1380 X 2560 (mm)
- Dimensions max. 2390 X 2370 X 9000 (mm)
- Maximum height 9 m
- Dry weight 686 Kg
- Mast rotation 340°
- Lifting system Manual
- Lamps 6 X 160 W - Multi Led
- Illuminated Area 4200 m²
- Optional LS version Kit [ DSE3110 control panel + Light sensor ]
- DSE401 with remote control and tracking
- Bunded tank
- Alternator Synchronous
- Power generator 3,5 kVA – 230 V
- Outlet socket 1.3 kVA
- Engine Kubota Z482 - 2 cyl - 1500 rpm
- Cooling system Water
- Tank capacity 80 l
- Consumption 0.55 l/h
