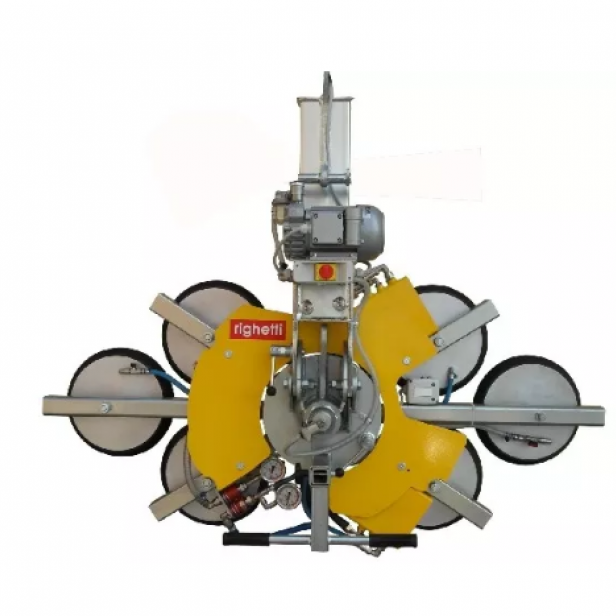

GLASS VACUUM LIFTER 220VM OR 380V VEB6 RCMBM WITH MANUAL TILT & ROTATION MAXIMUM LOAD 600KG

VEB6 RCMBM

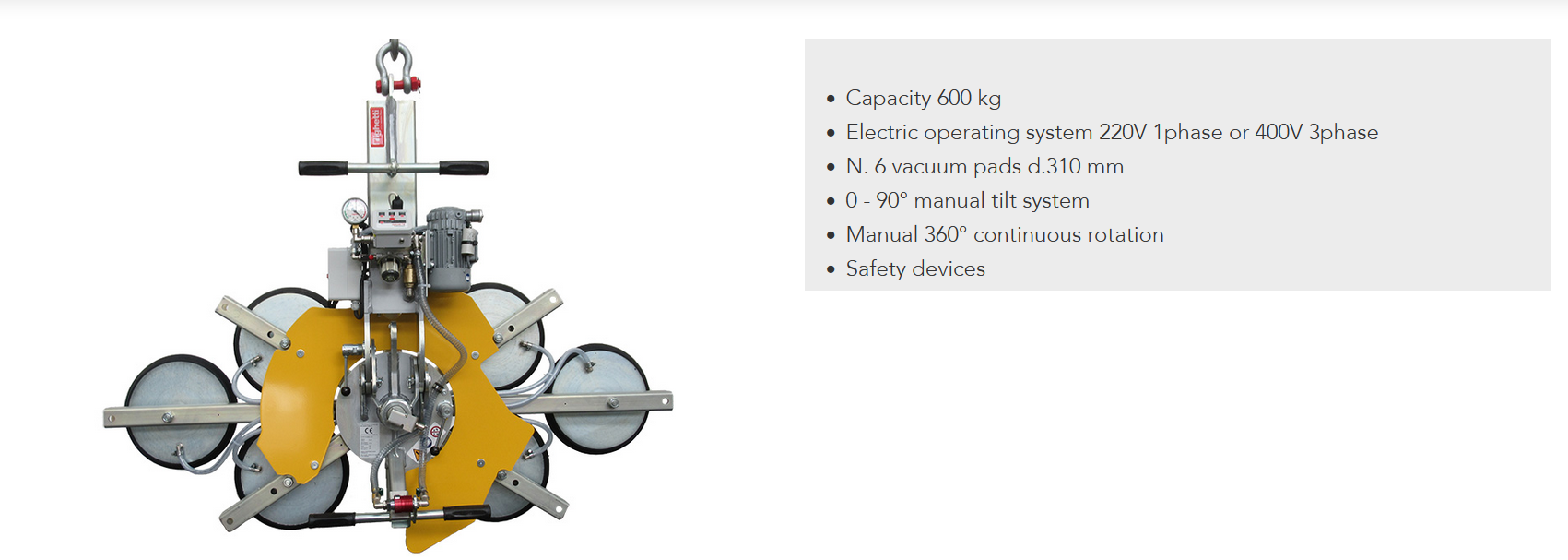

The model VEB6 RCMBM is a glass vacuum lifter with 6 vacuum pads d. 310 mm, 600kg capacity and electric operating system, which can be 400V 3phase or 220V 1phase.The vacuum lifter VEB6 features manual 0-90° tilt and manual 360 degree rotation.One vacuum circuit with vacuum tank and safety devices, guarantee security on lifting and handling big glass panels.

• Capacity 600 kg
• Electric operating system 220V 1phase or 400V 3phase
• N. 6 vacuum pads d.310 mm
• 0 - 90° manual tilt system
• Manual 360° continuous rotation
• Safety devices

Technical specifications

• Application Glass panels
• Maximum capacity 600 kg
• Suction plates No. 6 suction plates diameter 310 mm
• Plates with lip and safety ring
• Plates with internal springing

Handling of the load

• 360° continuous rotation, with the possibility of blocking automatic at every 90°
• 90° tilting, with possibility of automatic blocking in horizontal and vertical position
• Plate coverage 1420 x 678 mm
• Power supply 400V 3 phase 50Hz or 220V single phase 50Hz
• Vacuum system Single vacuum circuit
• Tare 95 kg
• Control Manual slide valve for load grip / release, positioned on the lift structure
• Load release with double action command
• With remote control as an option

Characteristics

• techniques Acoustic and visual alarm
• Vacuum gauge for each vacuum circuit
• Vacuum filte
• Lowered hook for transom glass installation
• Optional Double vacuum circuit
