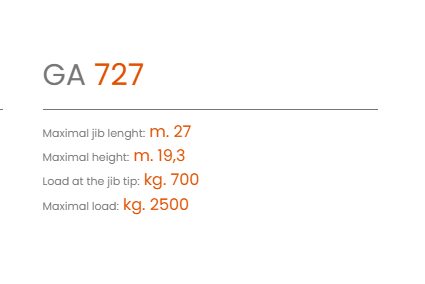

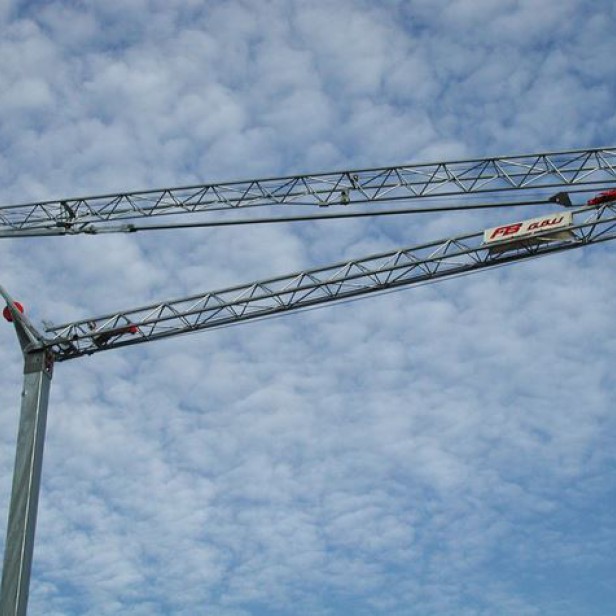

SELF ERECTING CRANE GA 727 MAX LOAD 2500 KG - 9.5Μ & 700KG - 27M &19.3M HEIGHT

GA Self Erecting Cranes

Safety, reliability and user friendliness

The GA series hydraulic self-erecting cranes are the ideal solution for customers who are looking for a quick and easy installation, the proportioned lines and the numerous details make these cranes an excellent lifting solution and underline the attention in the design phase reserved for reliability and security.

Whichever model or version you choose, these cranes ensure that construction companies can also work on sites with limited space.

This means that hydraulic self-erecting cranes can be used to build single-family and multi-occupancy homes as well as small infrastructure projects.

GA Self-erecting cranes standard carachteristics are:

• Fully hot galvanized mast, jib und pins
• All non-galvanized components are subjected to a shotblasting / sandblasting treatment, high protection anti-rust painting and a double finishing coat

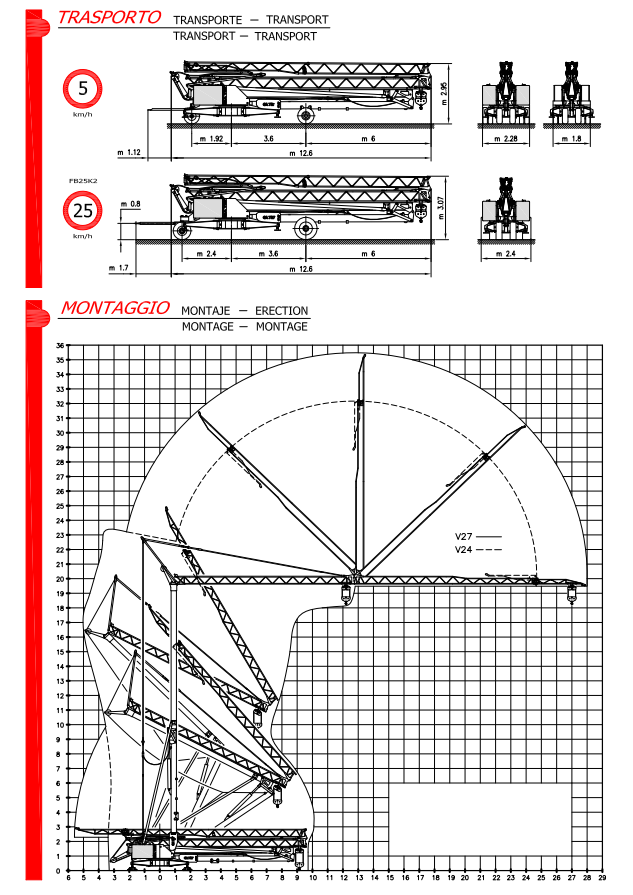

• Wheeled axles for towing on site
• Braking axles for towing on the road up to 25 km / h (Optional)
• Axle Vaigo (Optional)
• Box for electrical equipment

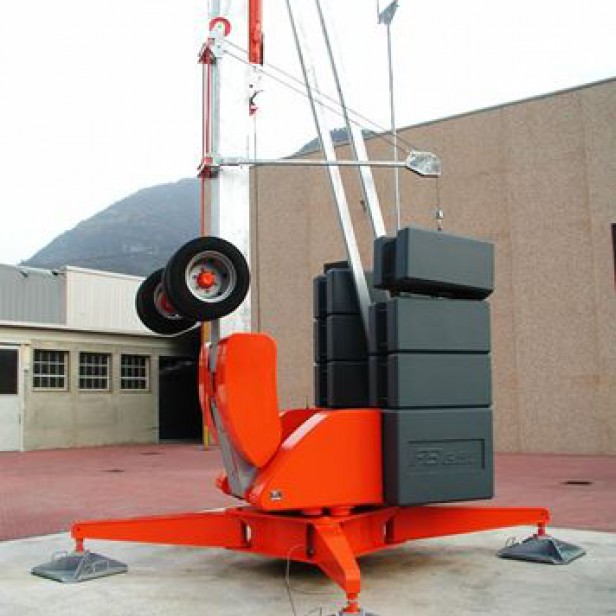

• Erection ballast blocks and working ballast blocks

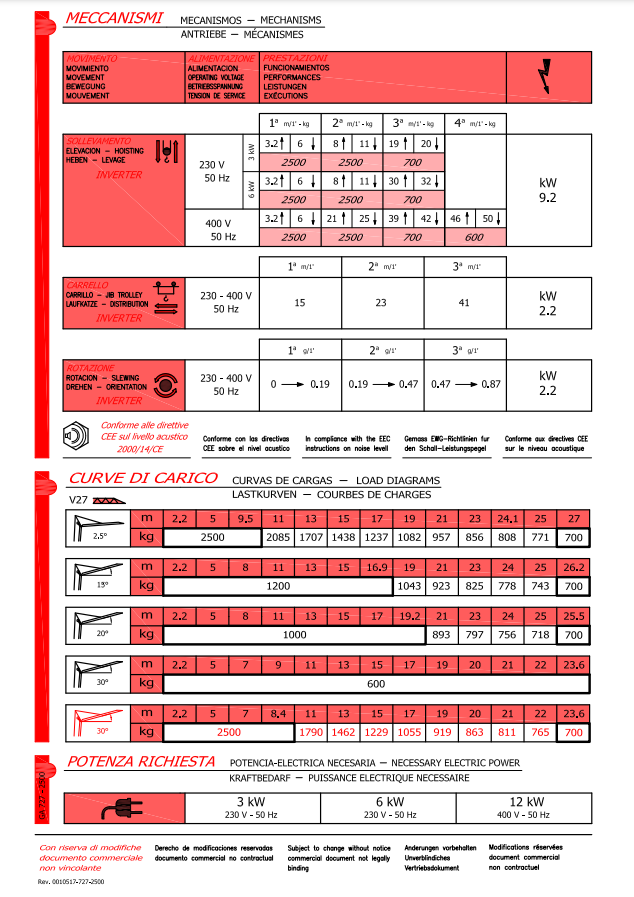

• Inverter for the control of hoisting movements, slewing and trolley
• Possibility of working with luffed jib
• Adjustable stabilizers for perfect machine leveling
• Prearrangements for anti-collision system (Optional)

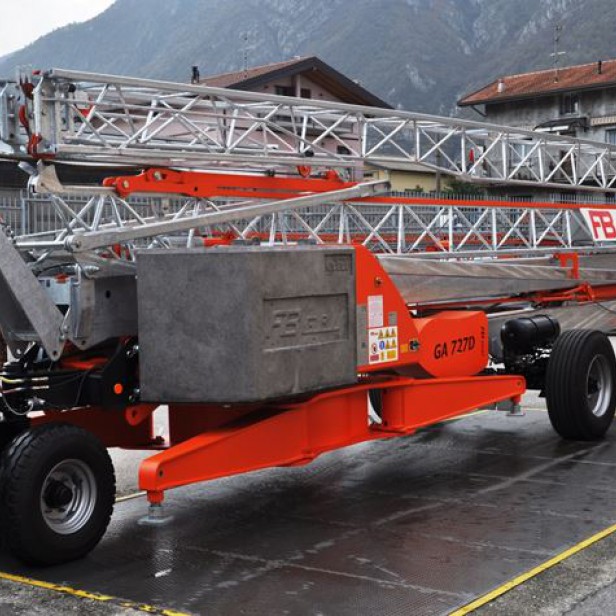

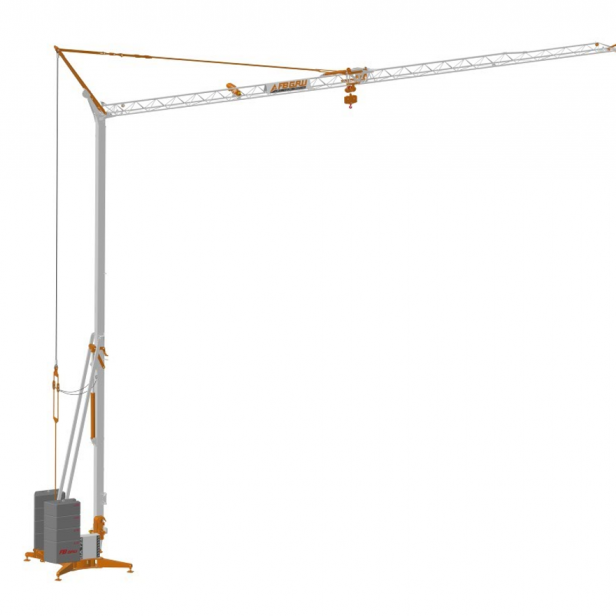

GA 727

• GA727 let you move higher without lowering performances!

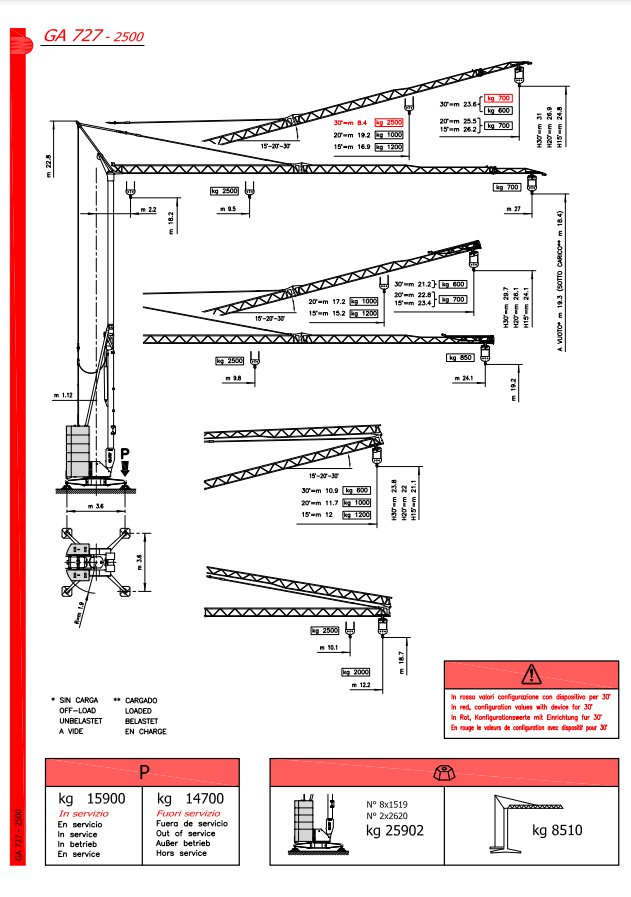

• This self-erecting crane allow to building companies to work both with horizontal and 30° luffed jib, maintaining a maximum load of 2500 kg.
• It is drawn up to fit the installation of the most forefront technologies, such as the anti-collision system and a display monitor to guarantee the best safety situation on the building site
