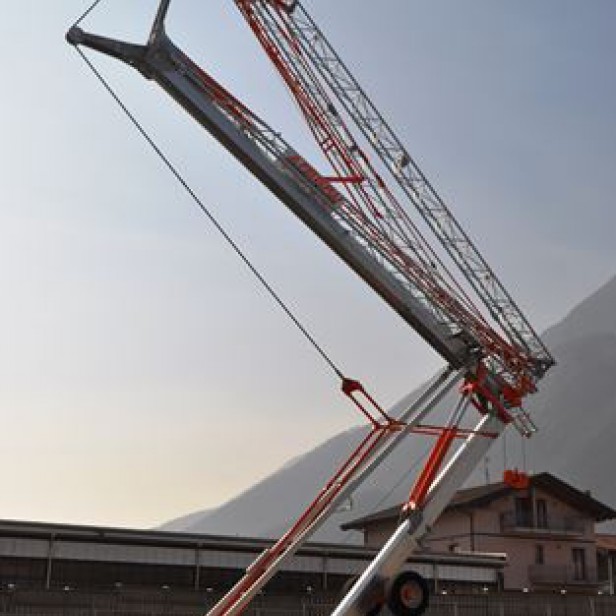

SELF ERECTING CRANE GA 143 MAX LOAD 4000 KG - 14Μ & 1000KG - 43M & 24.4M HEIGHT

GA Self Erecting Cranes

Safety, reliability and user friendliness

• The GA series hydraulic self-erecting cranes are the ideal solution for customers who are looking for a quick and easy installation, the proportioned lines and the numerous details make these cranes an excellent lifting solution and underline the attention in the design phase reserved for reliability and security.
• Whichever model or version you choose, these cranes ensure that construction companies can also work on sites with limited space.
• This means that hydraulic self-erecting cranes can be used to build single-family and multi-occupancy homes as well as small infrastructure projects.

 GA Self-erecting cranes standard carachteristics are:

• Fully hot galvanized mast, jib und pins
• All non-galvanized components are subjected to a shotblasting / sandblasting treatment, high protection anti-rust painting and a double finishing coat

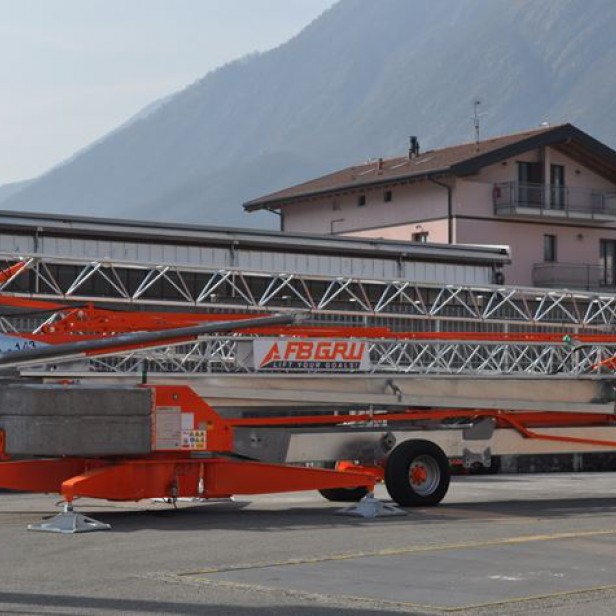

• Wheeled axles for towing on site
• Braking axles for towing on the road up to 25 km / h (Optional)
• Axle Vaigo (Optional)
• Box for electrical equipment
• Erection ballast blocks and working ballast blocks

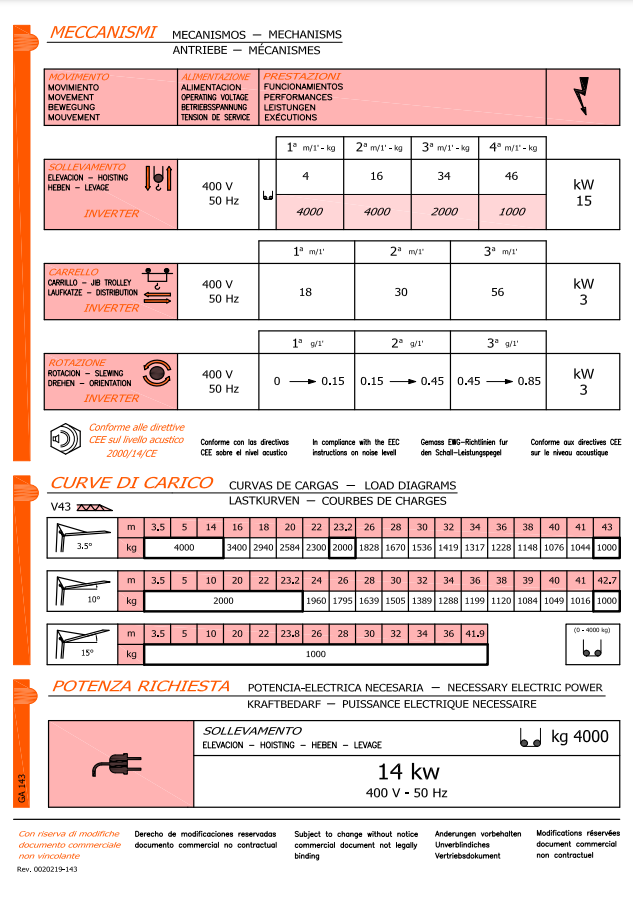

• Inverter for the control of hoisting movements, slewing and trolley
• Possibility of working with luffed jib
• Adjustable stabilizers for perfect machine leveling
• Prearrangements for anti-collision system (Optional)

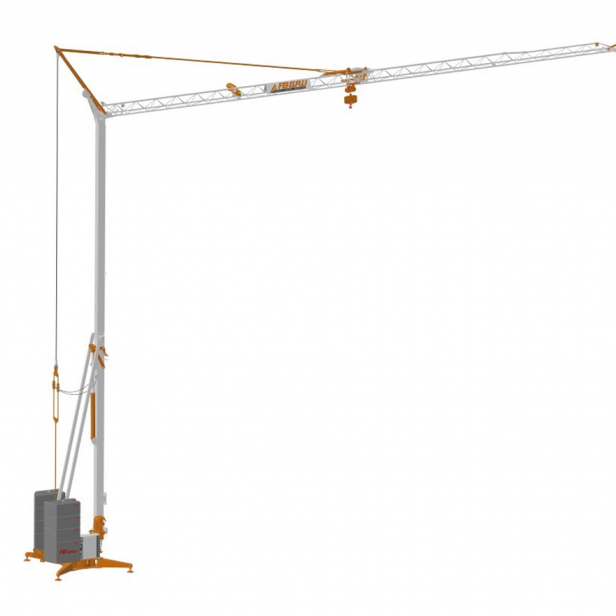

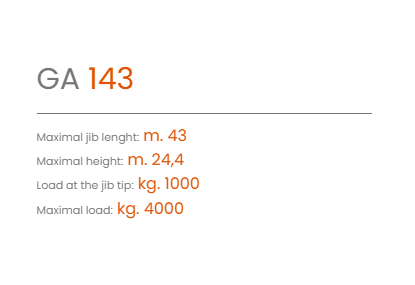

GA 143

• Bigger, more powerful and faster.
• The GA143 fast-erecting crane was designed for those companies that always want more and are never satisfied.

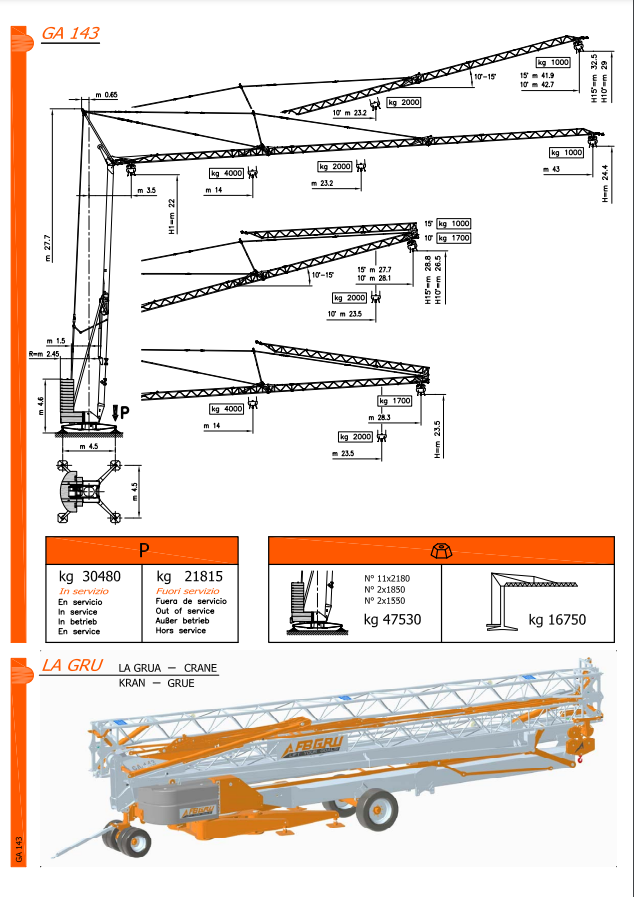

• With a 43-meter jib, it is the largest bottom-slewing crane of the GA range, and with a 15 kW motor it can lift up to 4000 kg with 2-fall to speed up lifting operations.

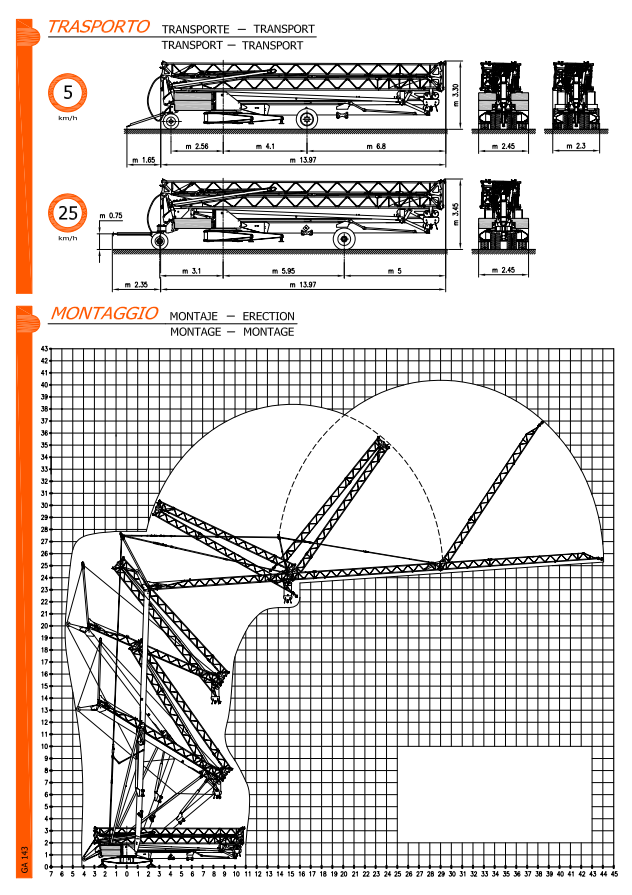

• Speed is the very essence of this project.This crane is indeed perfect for quick assembly on the building site, thanks to its two-cylinder hydraulic mounting system.
• Power and speed, combined with unique lines and space-saving dimensions in the working phase, make this fast-erecting crane an excellent lifting solution thanks to its dimensions in the working phase.
