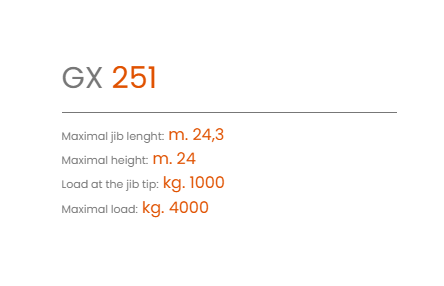

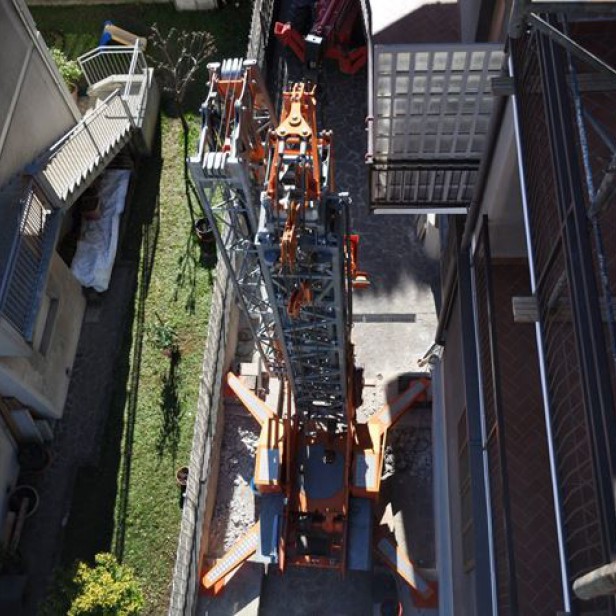

SELF ERECTING CRANE GX 251 MAX LOAD 4000 KG - 7.9Μ & 1000KG - 24.3M & 24M HEIGHT

GX for impossible building sites.

Compactness, power and versatility

The GX series telescopic crane was created to meet a large number of needs of construction companies. It is a compact crane that does not create problems of accessibility to construction sites. The reduced dimensions during transport conceal a powerful machine capable of lifting very heavy loads. A crane able to develop in height so as to overcome any obstacle as well as the possibility of working with different configurations to adapt to each infrastructure site.

GX characteristics:

• Fully hot galvanized mast, jib und pins
• All non-galvanized components are subjected to a shotblasting / sandblasting treatment, high protection anti-rust painting and a double finishing coat

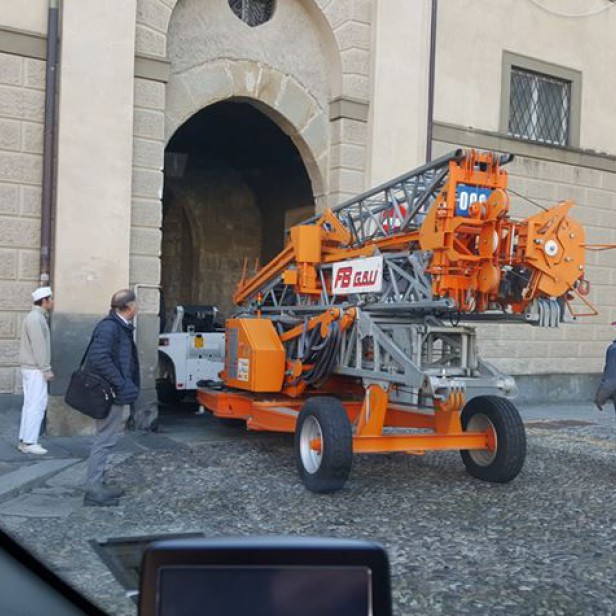

• Wheeled axles for towing on site
• Braking axles for towing on the road up to 25 km / h (Optional)
• Axle Vaigo (Optional)
• Box for electrical equipment
• Erection ballast blocks and working ballast blocks

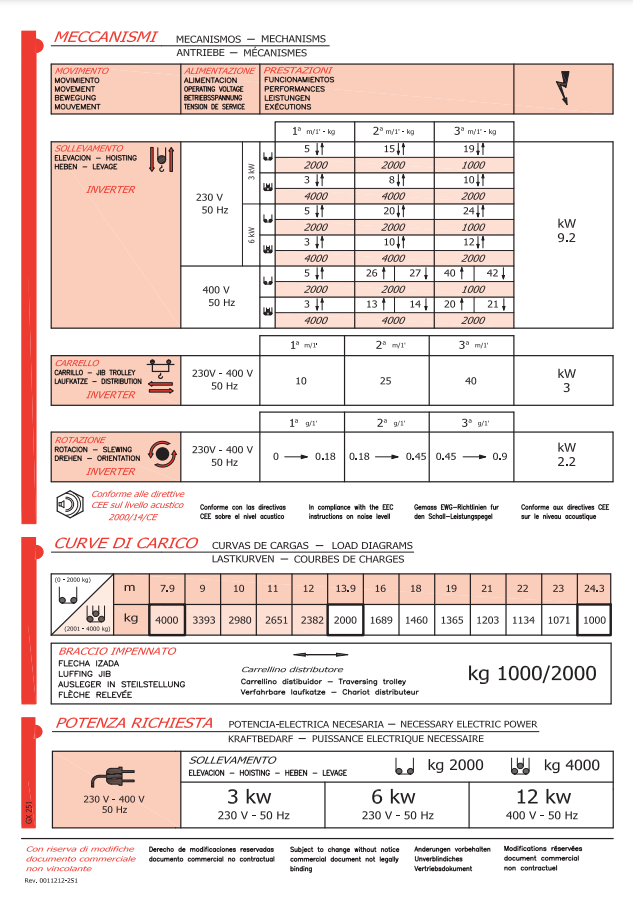

• Inverter for the control of hoisting movements, slewing and trolley
• Possibility of working with luffed jib
• Adjustable stabilizers for perfect machine leveling
• Prearrangements for anti-collision system (Optional)
• Control with joystick remote control with display of weight and wind speed
• PROGRAMMABLE LOGIC CONTROLLER (PLC)
• Self-ballasting derrick

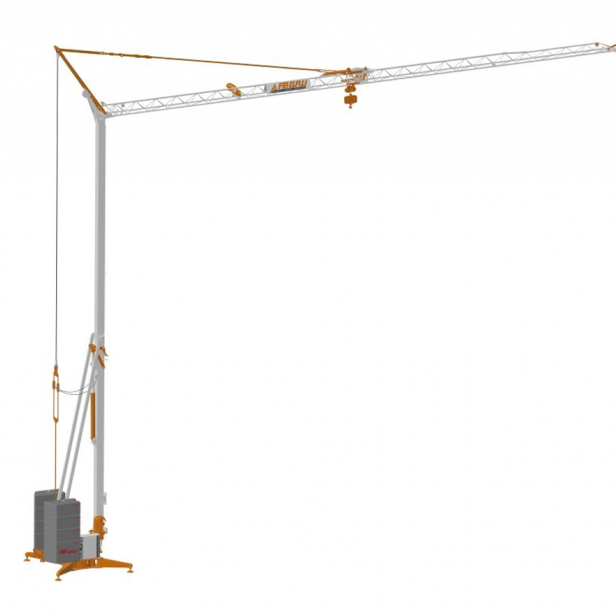

GX 251

• Nothing is impossible thanks to the GX251! The most compact self-erecting crane ever with a footprint of 7 meters.
• The ideal lifting solution for building contractors who often work on construction sites with very little space or access difficulties.

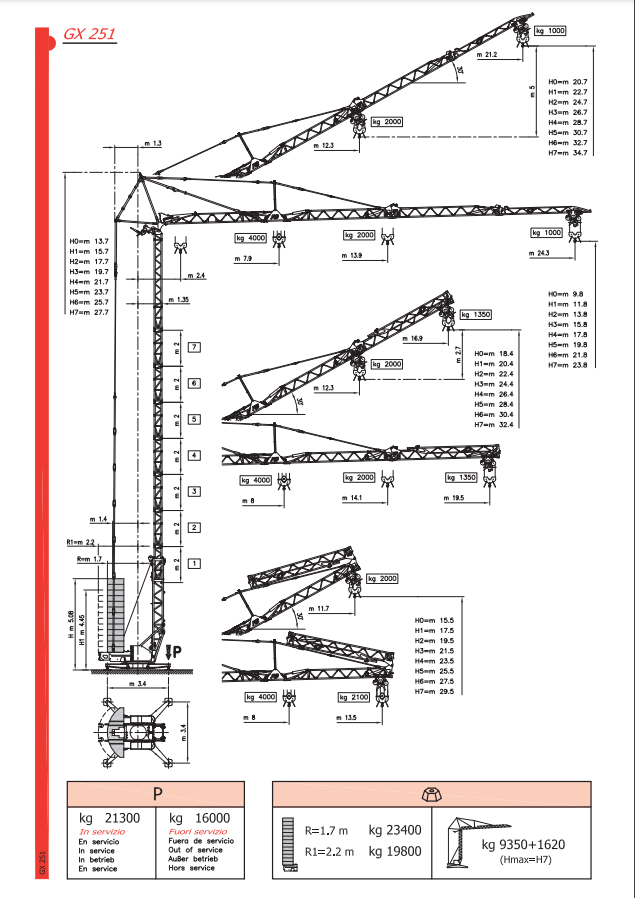

• A small crane only apparently seen the 24 meters of arm and 24 meters of height that can be reached by tower telescope.
• First class performance also in terms of capacity: 1000/4000 kg load with horizontal arm, 1000/2000 kg instead when working at 30 °.
• Maximum work versatility for the crane that adapts to each site.
