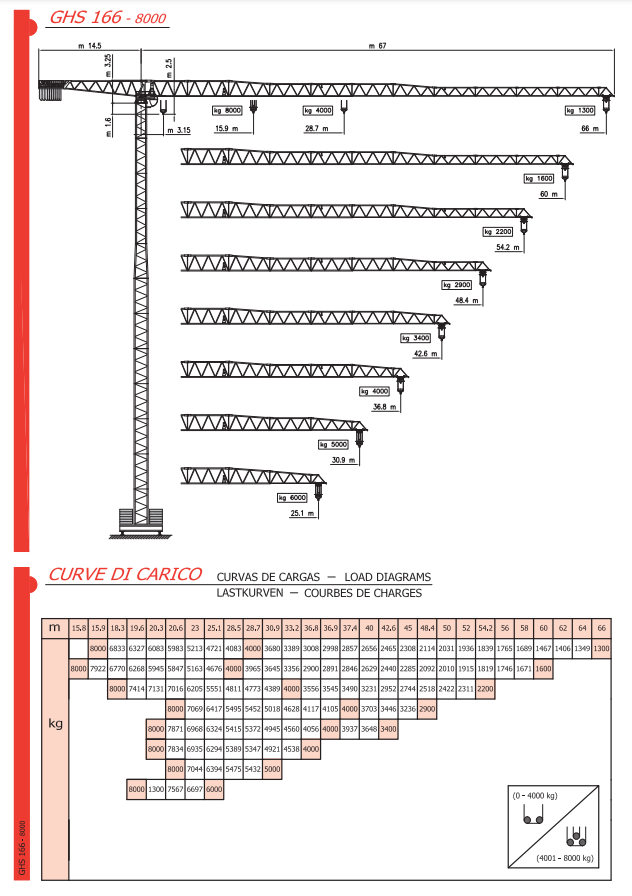

TOWER CRANE GHS 166 MAX LOAD 8000KG - 20.6M LENGTH & 1300KG - 66M LENGTH & 72M HEIGHT

GHS Tower crane.

Simplicity, modularity and security

• Every construction company has its own requirements for this FB has created the GHS tower crane series that, with a modular design with attention to the smallest details, guarantees simplicity and rapidity of assembly.
• The robust construction stands for safety and reliability and makes these models an excellent lifting solution.
• The Flat-Top crane line is designed to enhance functionality and performance; in this way it is guaranteed to the construction companies to work in building sites characterized by a limited space. If the building site has problems with access, our tower cranes offer the helicopter-structural assembly solution.

 Features of GHS Top-slewing-cranes:

• Counter ballast blocks

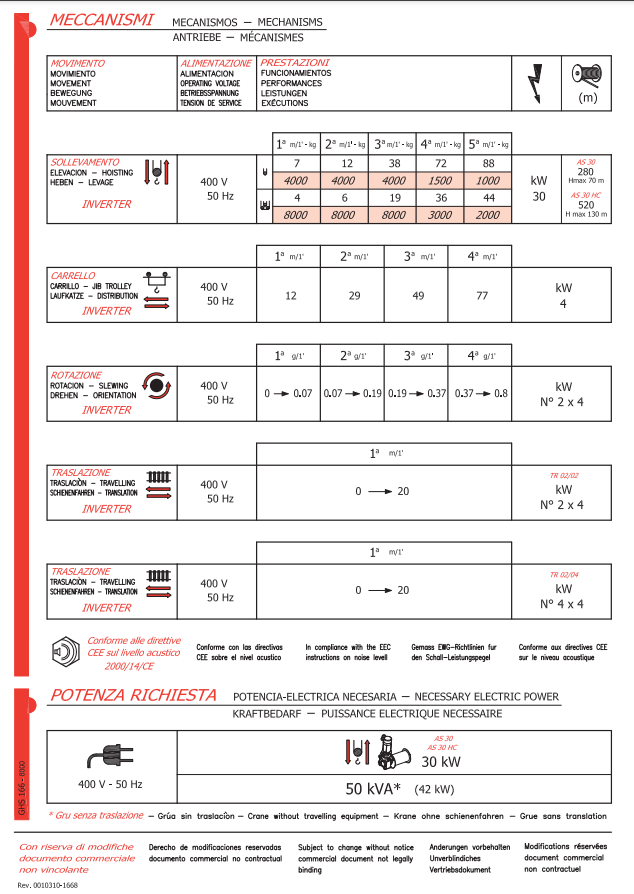

• Inverter for the control of hoisting movements, slewing and trolley
• Electrical equipment box in stainless steel
• Push-button control with cable
• joystick remote control
• Anemometer
• Cabin (Optional)
• Mounting cage (Optional)
• Travelling mechanism (Optional)
• Prearrangements for anti-collision System (Optional)

 GHS 166

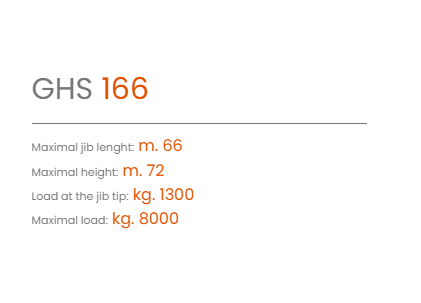

• The bigger the better! GHS 166 is a tower crane with 66 meters jib, which can lift up to 8000 kg load.
• An excellent lifting solution for those construction companies looking for a powerful and performing top slewing crane.
