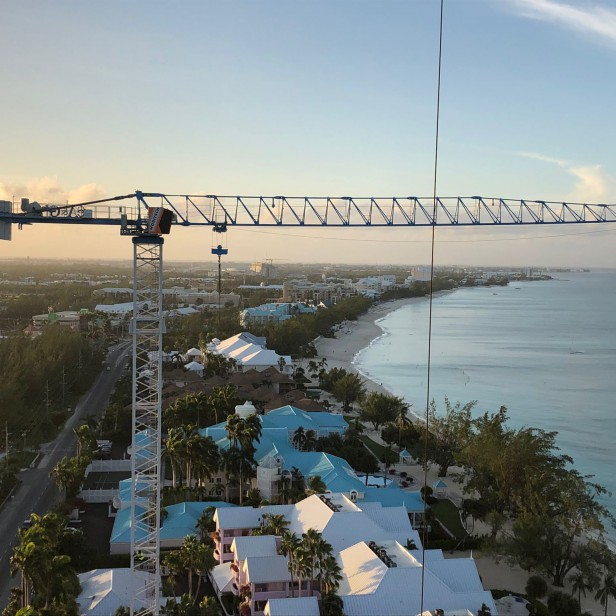

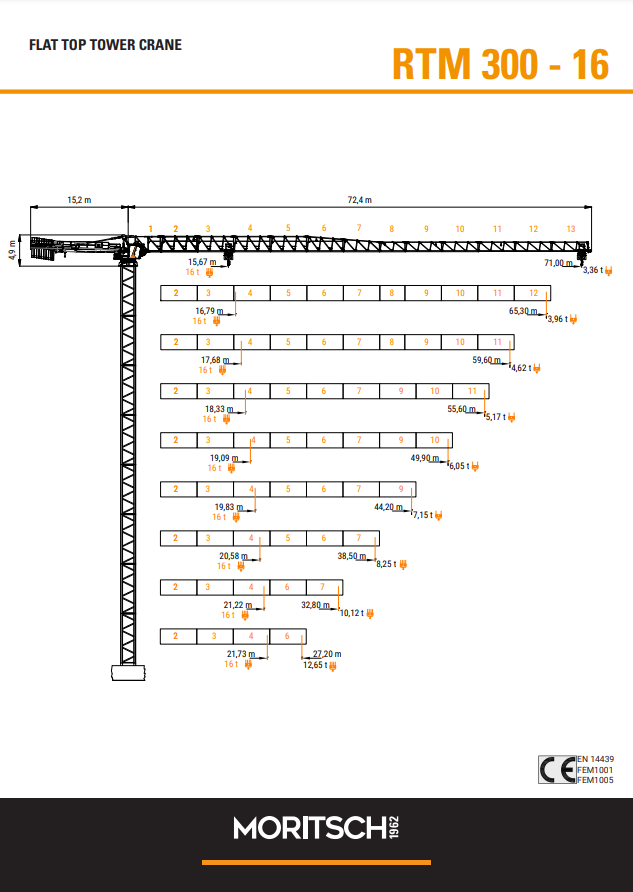

FLAT TOP CRANE RTM300 MAX CAPACITY 16000KG - 71M LENGTH & 66M HEIGHT

FLAT TOP CRANES

The RTMs are a range of tower cranes designed entirely topless.

•  They have a maximum load capacity between 6 Tons and 16 Tons and an arm length which varies between 50 m. and 75 m.
• The RTM is designed to guarantee fast and safe assembly, with the rental companies always at the center of our thoughts.
• The counter arms designed by Moritsch Cranes are entirely pre-assembled in the factory.
• Hoist and trolley winches, platforms and handrails are all pre-assembled to ensure safe and loaded assembly.
• The trolley winch is pre-assembled in the factory and positioned inside the first arm trunk which is welded to the rotation unit. In this way, with just two crane pulls, the entire rotating part is assembled and ready to work.
