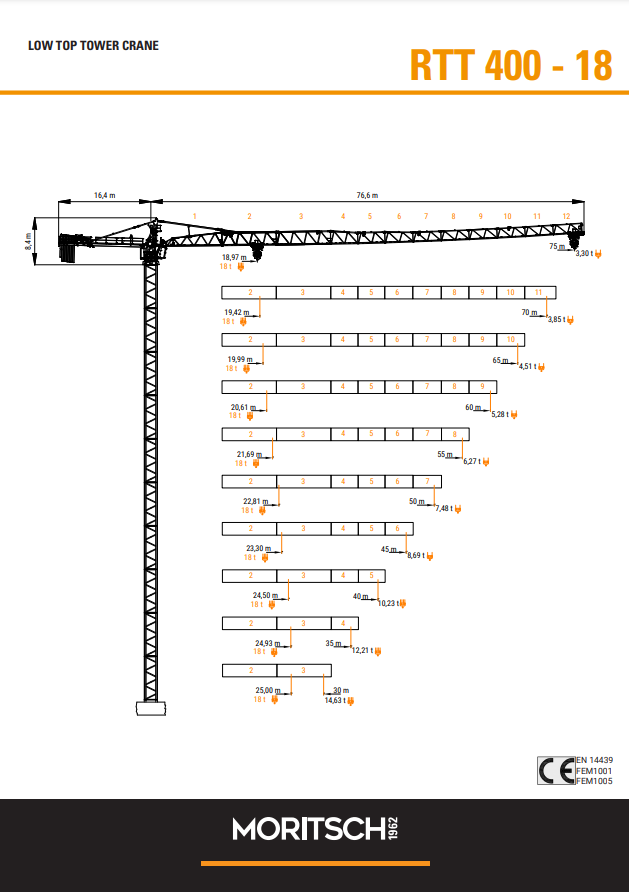

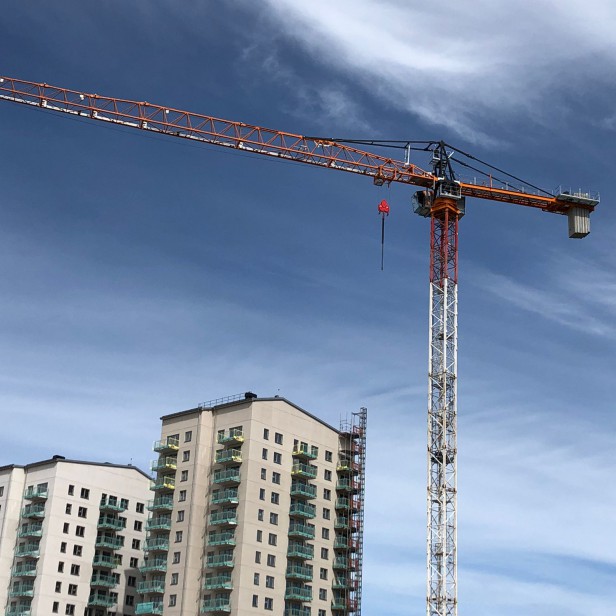

LOW TOP CRANE RTT 400 MAX CAPACITY 18000KG - 75M LENGTH & 84M HEIGHT

RTT EXTENSION
LOW TOP CRANES

• The RTT range is a low top designed for the first time by Moritsch Cranes for a standard range of large cranes.
• The RTT Range has lifting capacities ranging from 16 Tons to 40 Tons and can be configured with maximum outreaches from 75m to 85m.

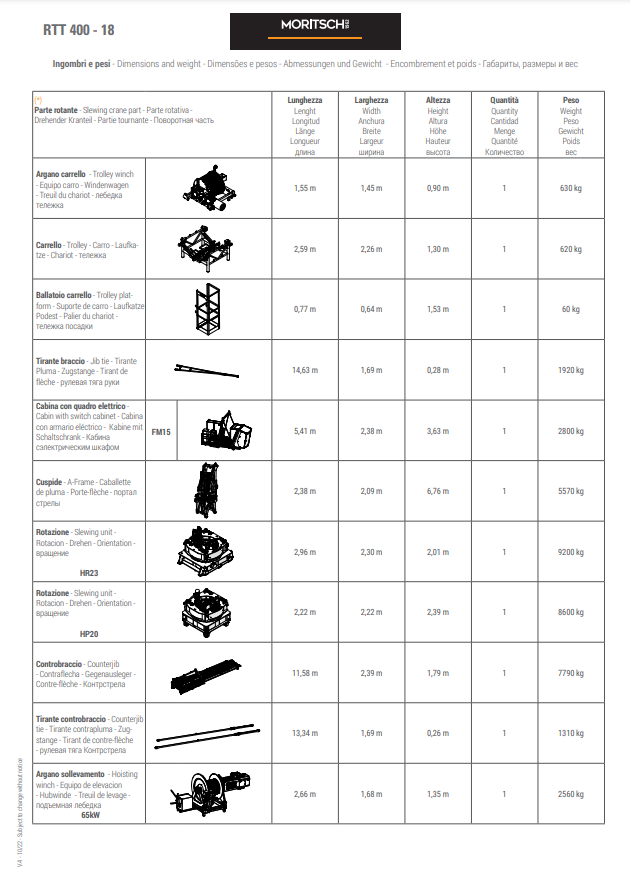

• Low top cranes are designed to combine the benefits of quick and safe erection while allowing for improved boom stability. The RTT has a complete counter jib fitted at the factory for easy transport. Tie rods, decks and handrails are all fitted prior to shipment. The first arm trunk is also pre-assembled in-house, together with the trolley, the rope and the winch.

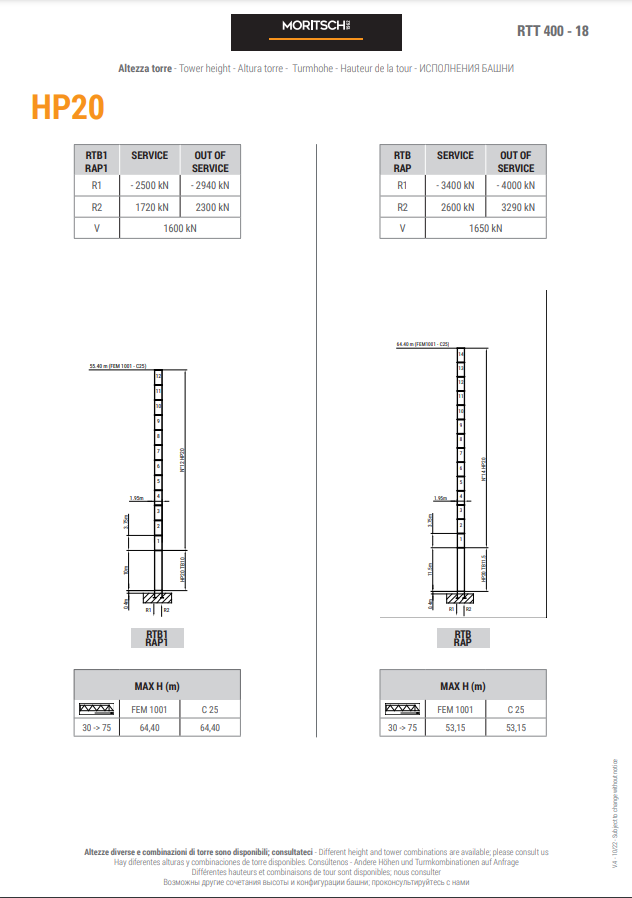

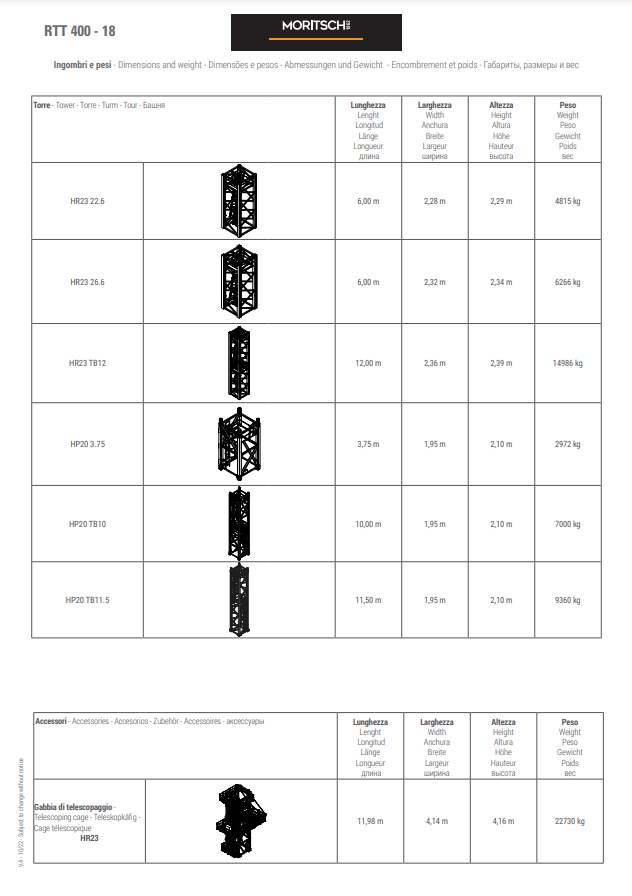

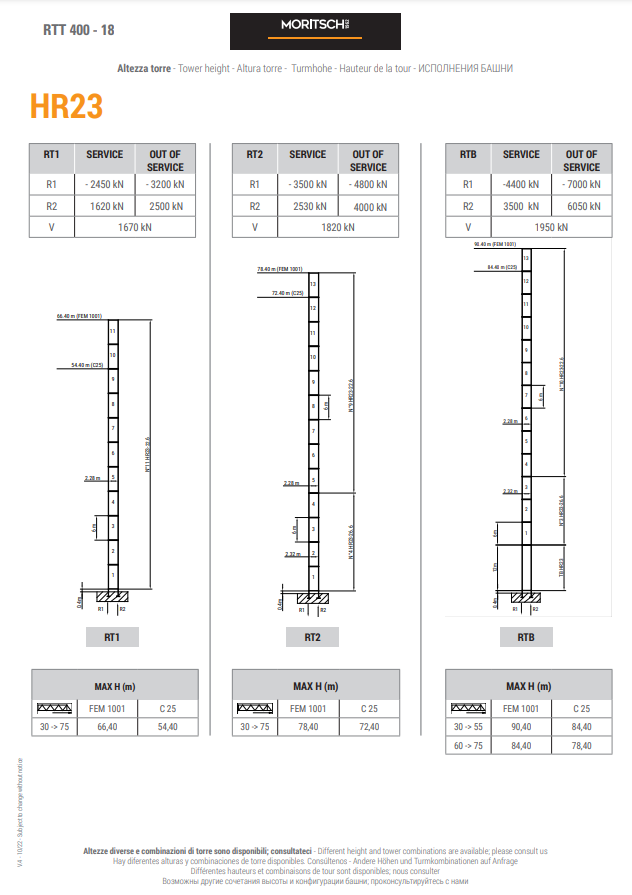

• The RTT range can use TM212, TM23, HP20 and HR23 tower elements.

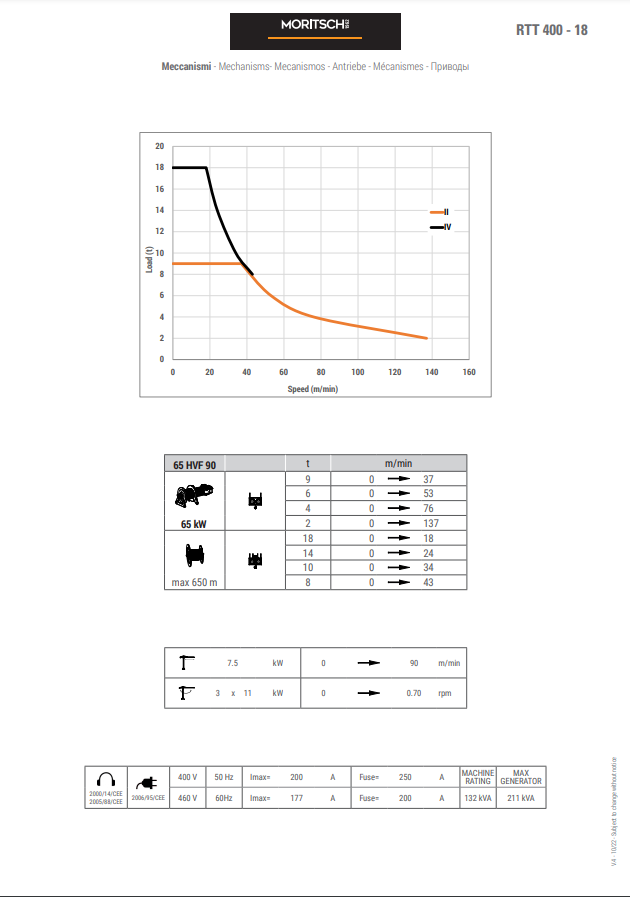

• Winches are available from 45kW to 150kW.
• Remote diagnostic system, black box and area ban system are standard for this range.
