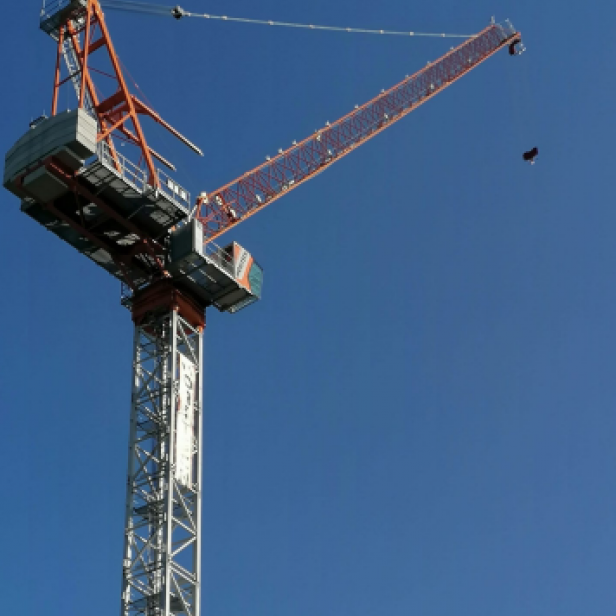

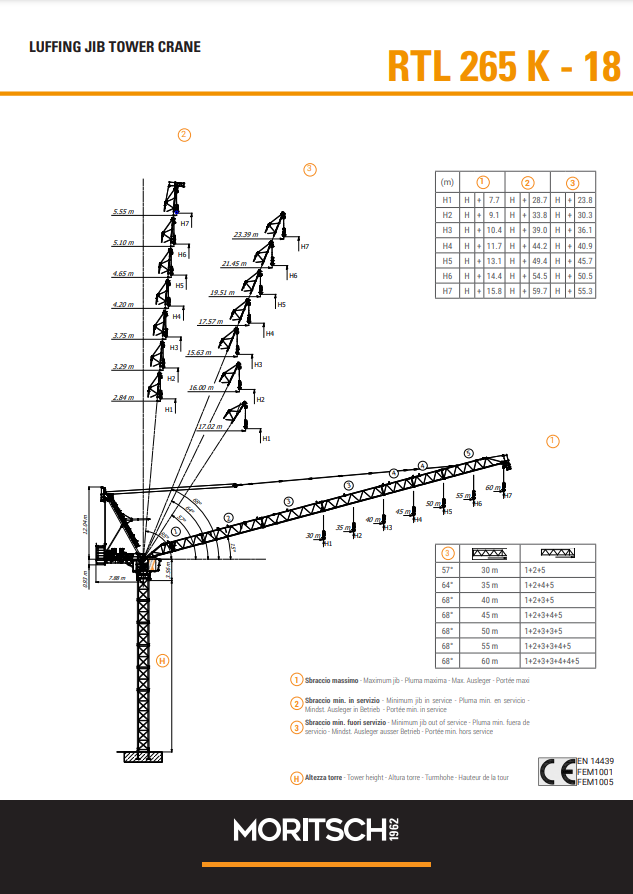

LUFFING JIB TOWER CRANE RTL265K MAXIMUM CAPACITY 18.000KG - 60M LENGTH & 64,40M HEIGHT

LUFFING JIB TOWER CRANE

The RTLs are undoubtedly the best known cranes in the Moritsch Cranes range. Jib cranes have been part of the Moritsch family tradition since 1989, when the first crane was sold in Toronto.

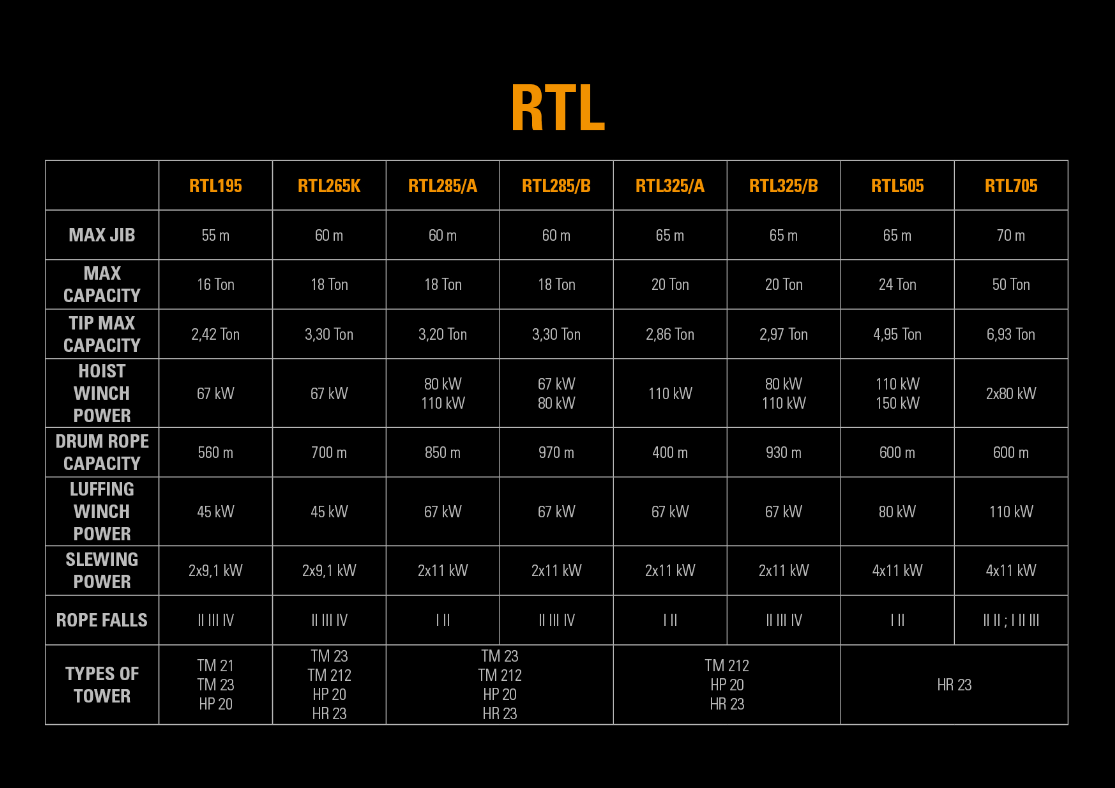

•  The RTL range starts from the 16 tons RTL195, an innovative crane concept which can reach an out of service radius of 8m with a 55m jib.
• It does not include any hydraulic system as Moritsch has patented a new mechanical arm locking solution to achieve this.

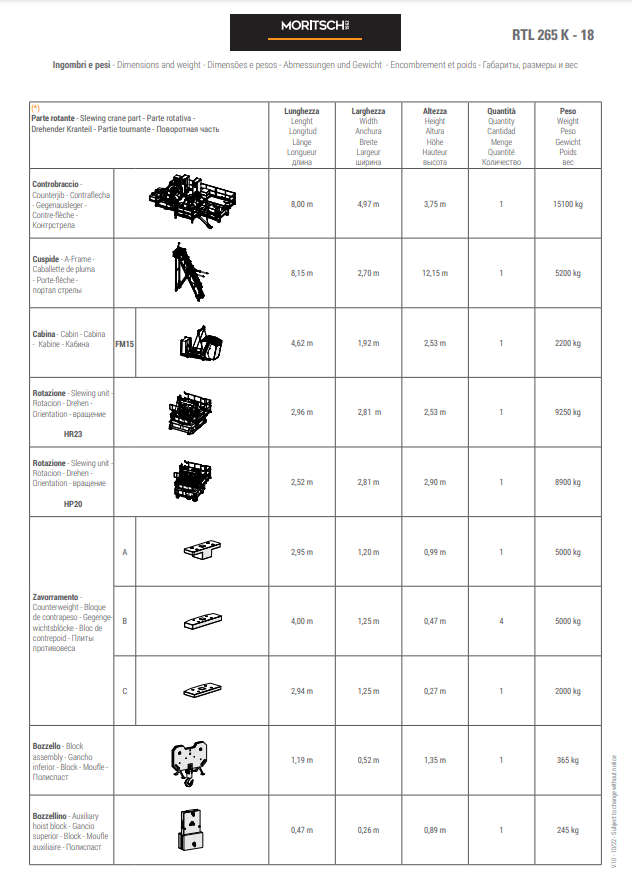

• The RTL range has fixed counter-jib ballasts and lifting capacities from 16 tons to 50 tons, available with single rope fall (versions A) or standard rope fall II III IV (version B).

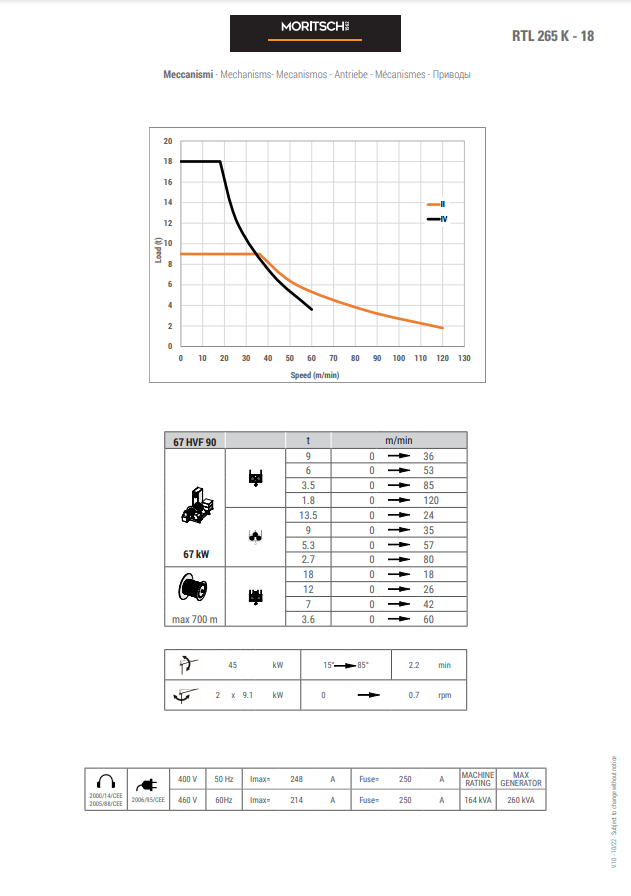

• Winches are available with emergency brakes on the drum. The swing winch ranges from 45kW to 150kW.

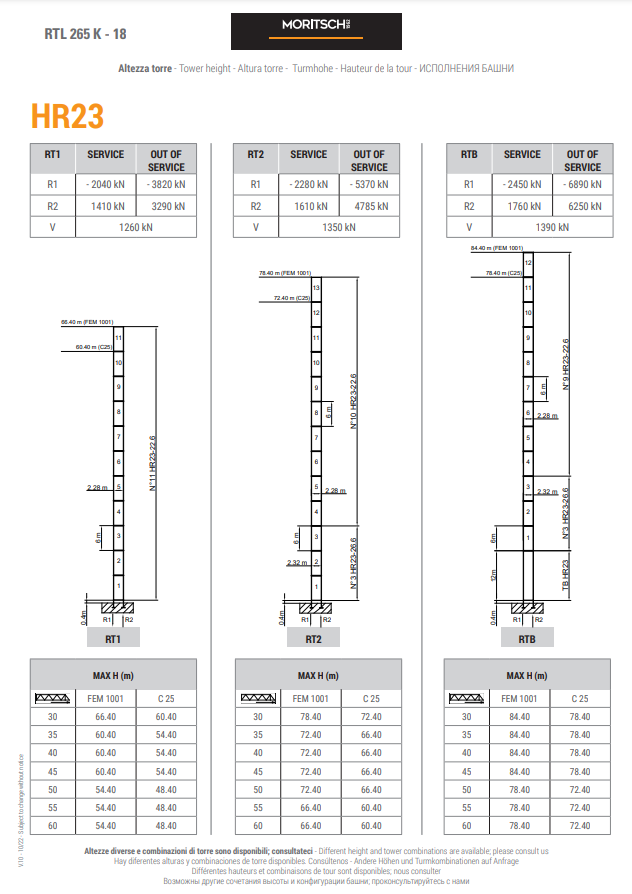

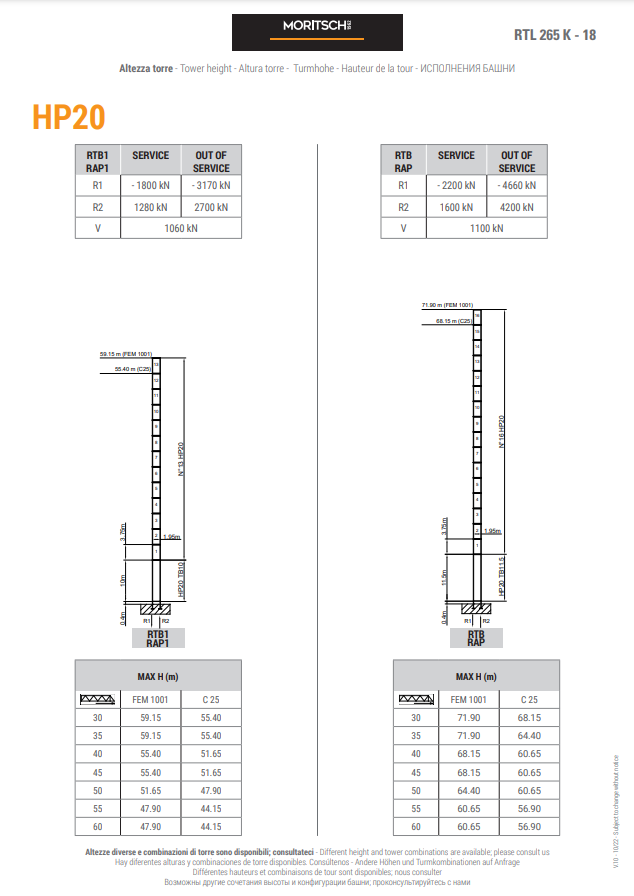

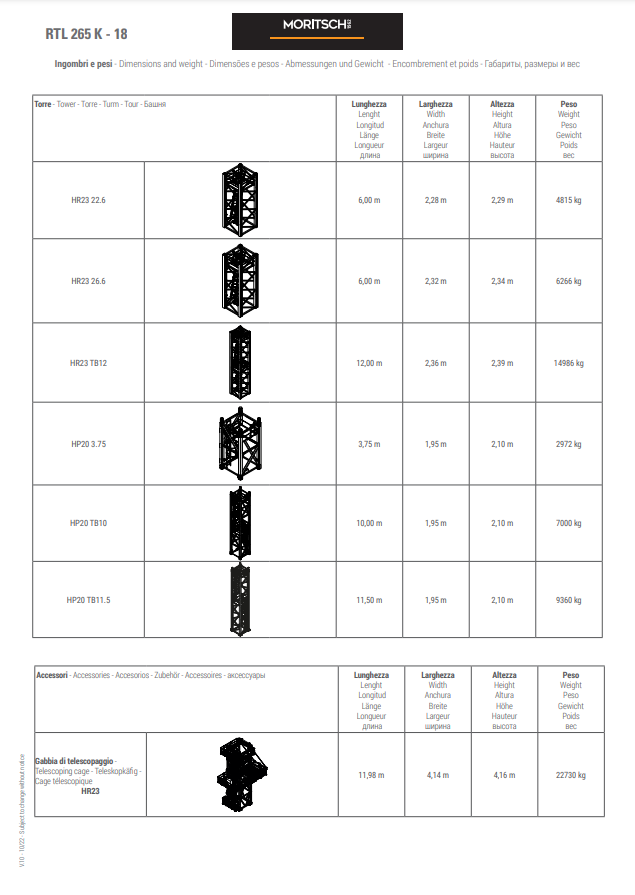

• The RTL range can be mounted on TM21, HP20 and HR23 tower elements.
• Remote diagnostic service, black box and work area interlock system are standard for this range.
