Vacuum and overhang battery suction cup - DSMH

DSMH2 1200

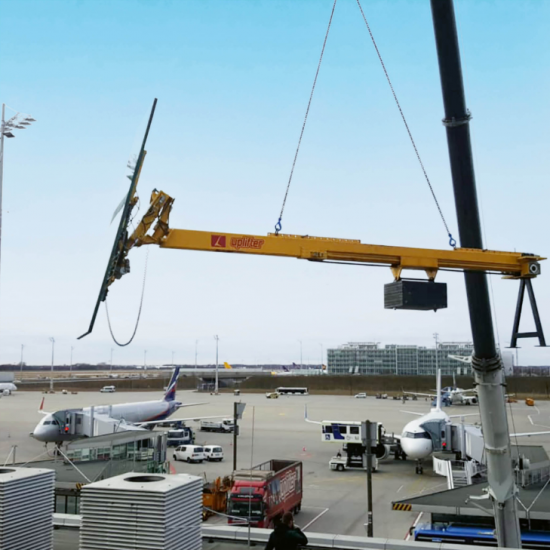

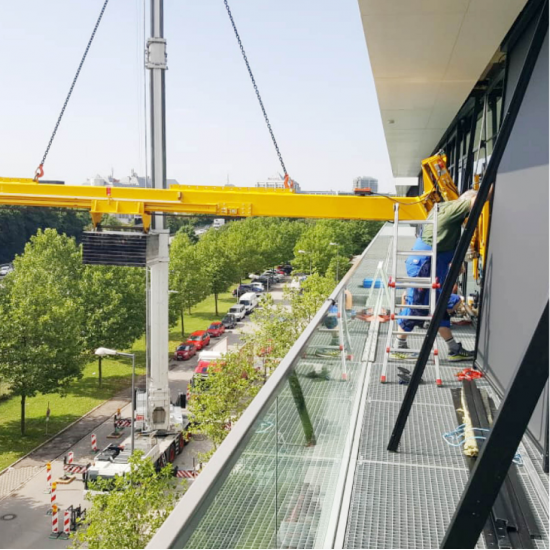

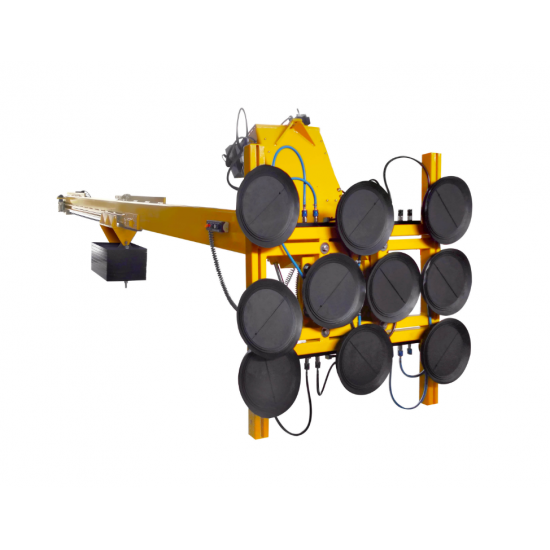

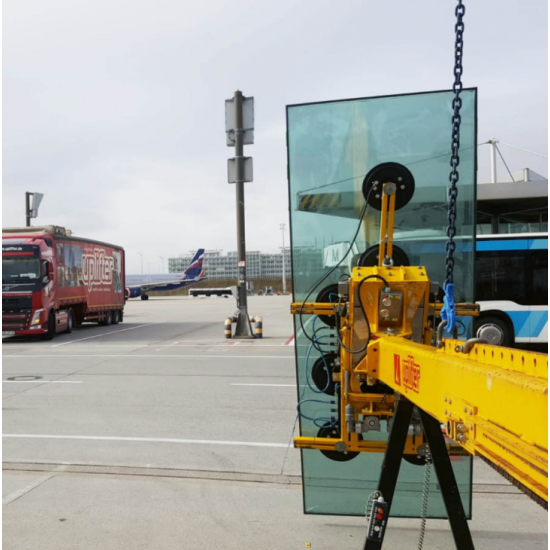

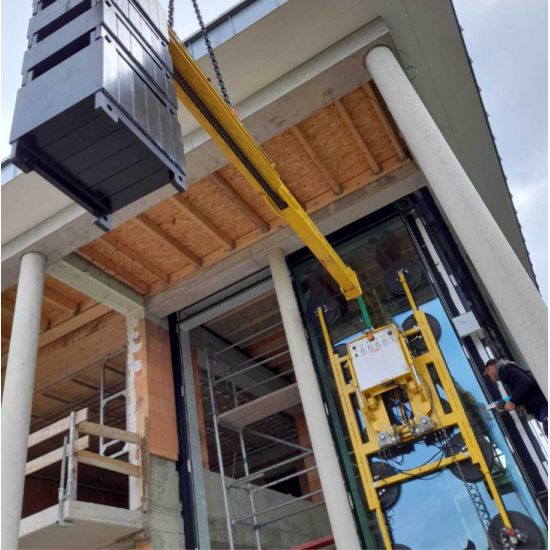

The DSMH2 1200 overhang vacuum lifter lifts loads up to 1,200 kg, no matter if vertical or horizontal. With its overhang of 2.8 metres, it is the ideal vacuum for mounting large glass elements under building projections. The powerful overhang vacuum cleaner is available with either a cable or radio remote control for adjusting the counterweight. In this case, the suction battery as well as the counterweight system are adjusted electrohydraulically. The loads can now be perfectly aligned and effortlessly inserted into the facade. It also has a mains-independent power supply for an operating time of up to 8 hours and an LED display that shows the current charge status. If a loss of vacuum occurs, it is pumped up again and also warns of the impending loss of vacuum pressure with an acoustic signal. By the way, you can rent or buy vacuum cups and glass cups from Uplifter.

• Load capacity up to 1,200 kg
• Including widening on both sides
• Two-circuit system
• 12 V vacuum system
• Motorised turning 360
• Hydraulic tilting 90
• Frame size: 1,100 x 1,010 x 310
• with extension: 2.720 x 1.010 x 310
• Radio remote control included
• 16 suction plates
• Overhang traverse 2.8 m
• Including counterweight (2 x block weight à 500 kg, 1 x variable weight 500 kg)
• Including adapter for DSLMH2-12V
• Dead weights:

Vacuum suction cup DSLMH2-12V = 280 kg

Crosshead including adapter = 1,000 kg

Counterweight = 1,500 kg

• Scope of delivery

• Vacuum cup DSMH2-12, counterweight system, sling chain, 2 x support blocks, 2 x block weight 500 kg, 1 x variable weight 500 kg, extension, equipment holder for DSLMH-2G-1t

Technical Data

•  Load capacity :   1.200 kg
• Suction disc:       10 pieces
• Radio remote control:    Yes
• Dead weight:     2.000 kg
